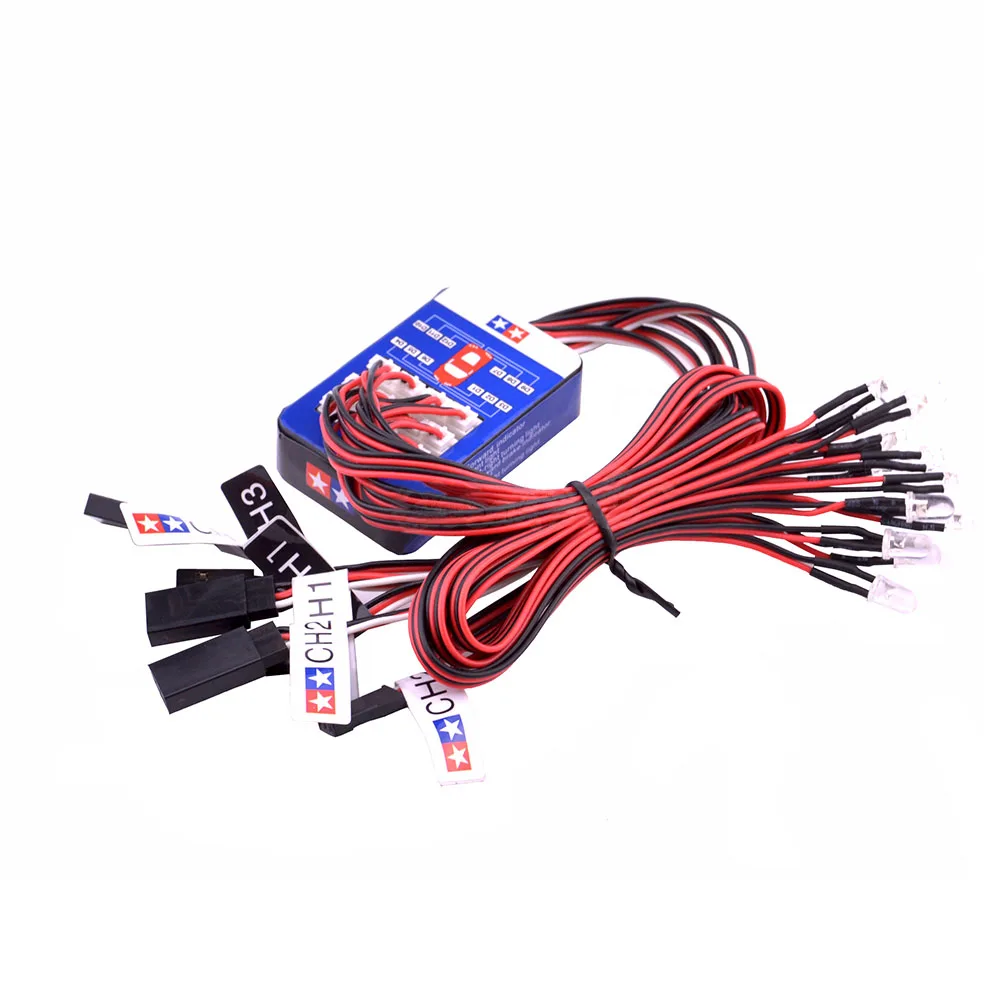

Yokomo Tamiya SPP HPI AXIAL Steering brake analog flash for 1/10 scale vehicles 4 WD Traxxas RC 12 LED Lighting Kit

This 12 LED Lighting System Kit is suitable for 1/10 RC cars. It have four colors lights, include white headlights, blue taillights, red brake lights and yellow turn lights. With improved circuit board, it can support High-V receiver and normal receiver. And one set of lights can be controlled by the transmitter.

Features:

12 LED lights

Simulation car light

Simple and easy to use

Far flashing, super bright

Improved design of circuit board, HOSI power saving

Headlight white, blue taillight, brake light red, turn light yellow

Suitable for 1/10 RC cars

Specifications:

Name: 12 LED Lighting System Kit

Material: Plastic

LED bulb quantity: 12

Working Current: 100mA

Input voltage: 4.8V - 6.0V

Lights color: White, red, yellow, blue

Connection method: CH1 - Servo

CH2 - Speed controller

CH3 - Receiver

Suitable for: 1/10 RC cars

LED cable length: about 300mm

Circuit board size: 53 * 33 * 15mm

Weight: 57.2g

Lights Description:

Headlights:4 white LED lights

Connect the lighting system to the CH3 on receiver: the transmitter can independently control a group of lights, another group of lights are on when the car speed up; Not connect to the CH3 on receiver: one group of lights are always on, another group of lights are on when the car speed up.

Turn lights:4 yellow LED lights

With the remote control change the direction, the lights will synchronous flashing.

Taillights:2 blue LED lights, 2 red LED lights

The blue lights are always on. When the car speed up or brake, blue lights will go out. Only when brake, the red lights on.

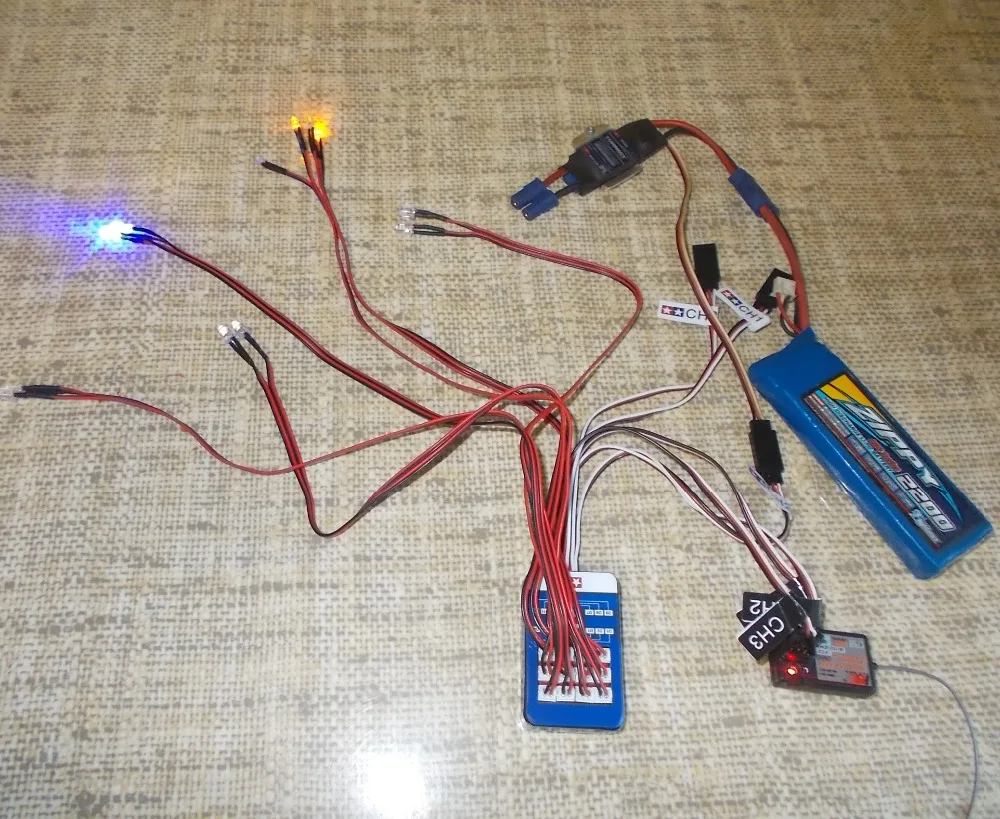

Installation Method:

CH2 Transmitter:

Connect the plug of servo and ESC to the CH1 and CH2 on lighting system, and then connect the CH1 and CH2 to receiver.

CH3 Transmitter:

Connect the plug of servo and ESC to the CH1 and CH2 on lighting system, and then connect the CH1, CH2 and CH3 to receiver.

Package Included:

1set x 12 LED Lighting System Kit
