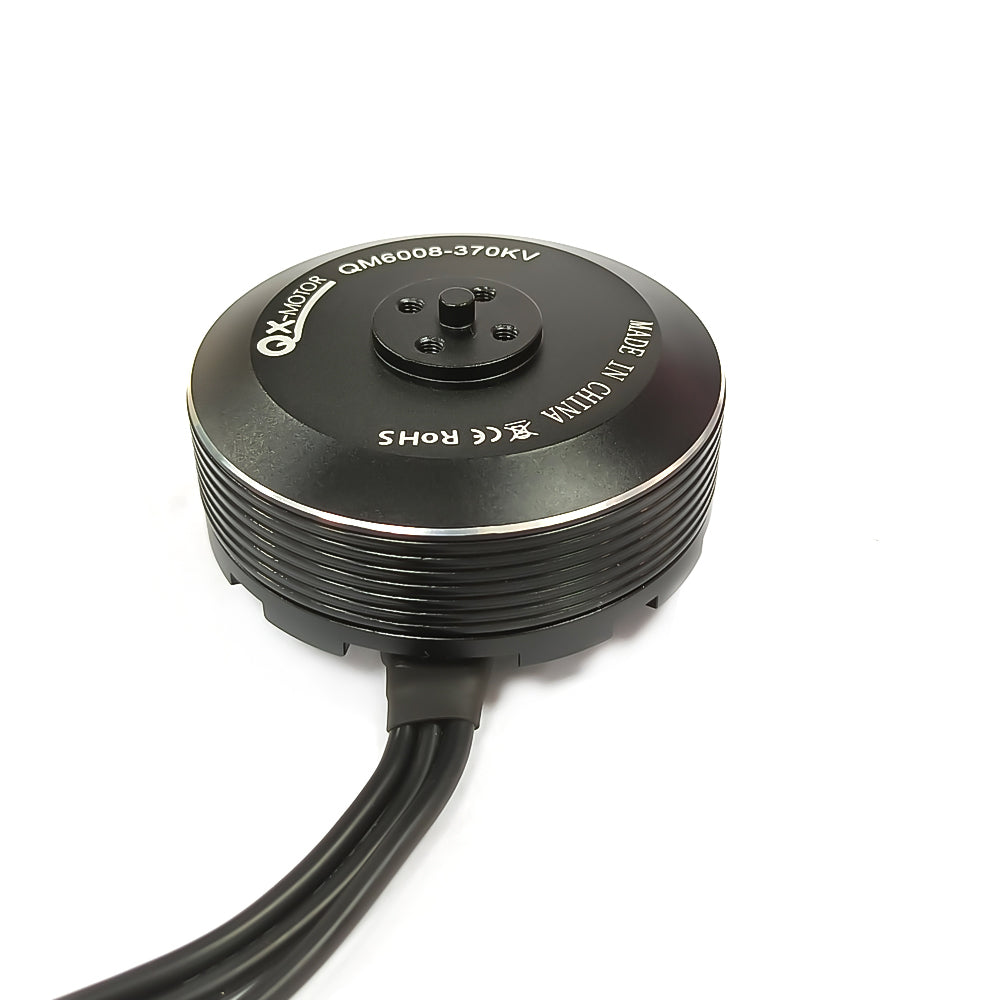

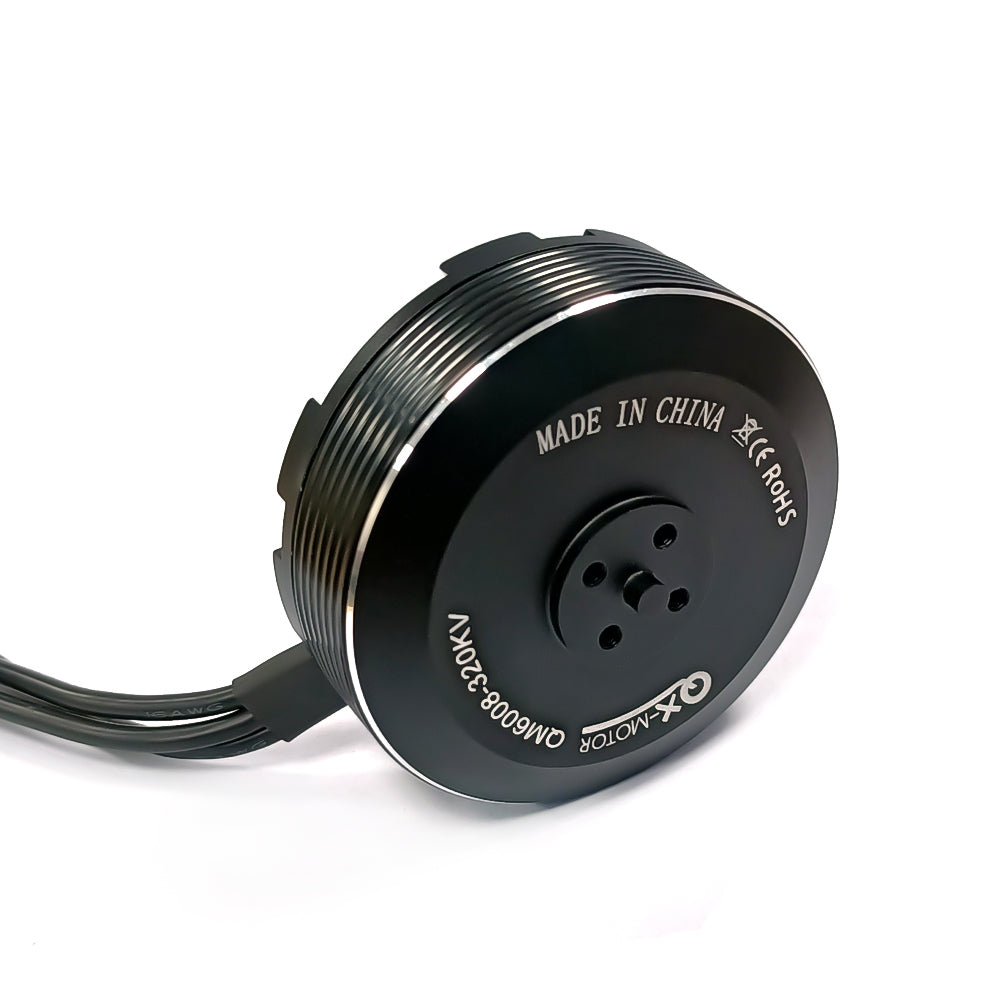

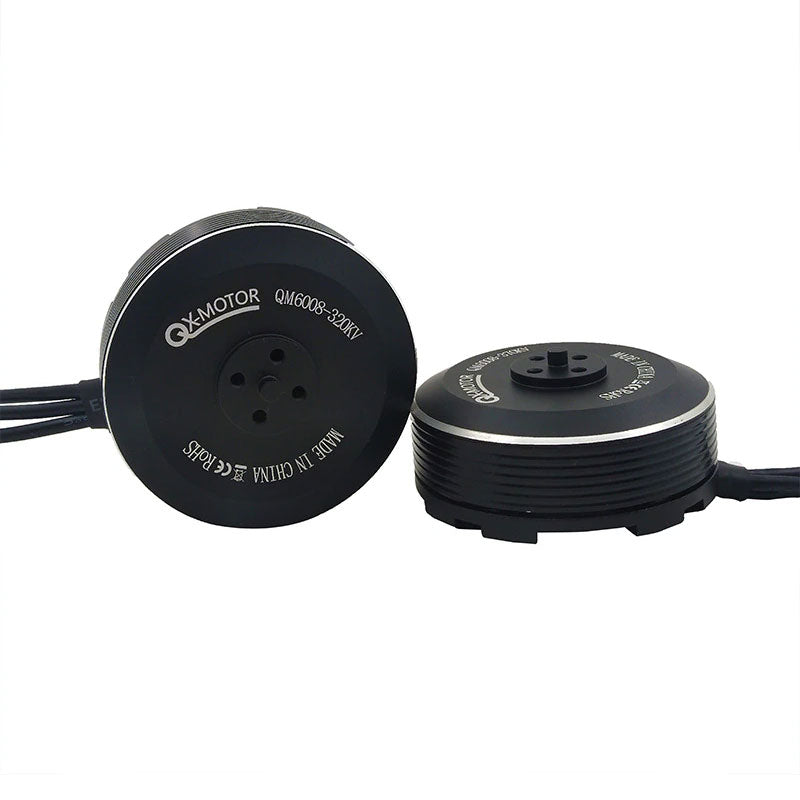

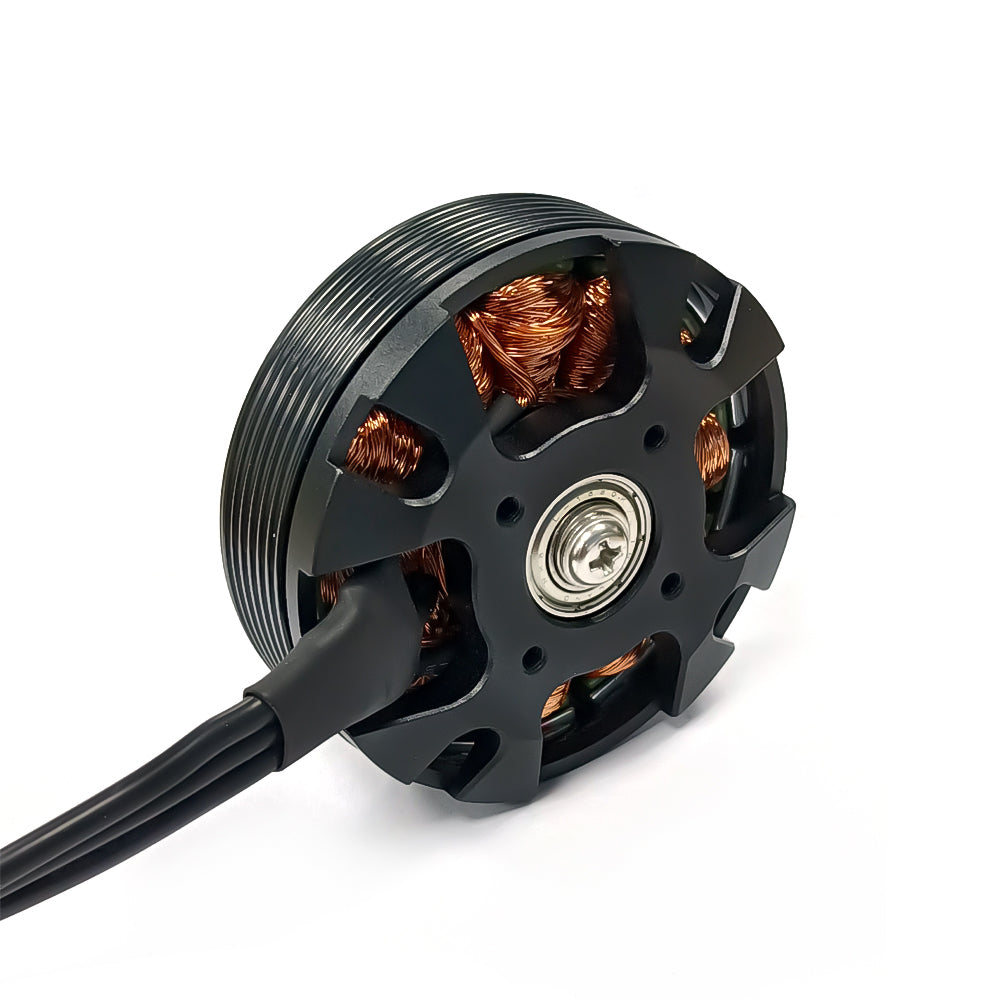

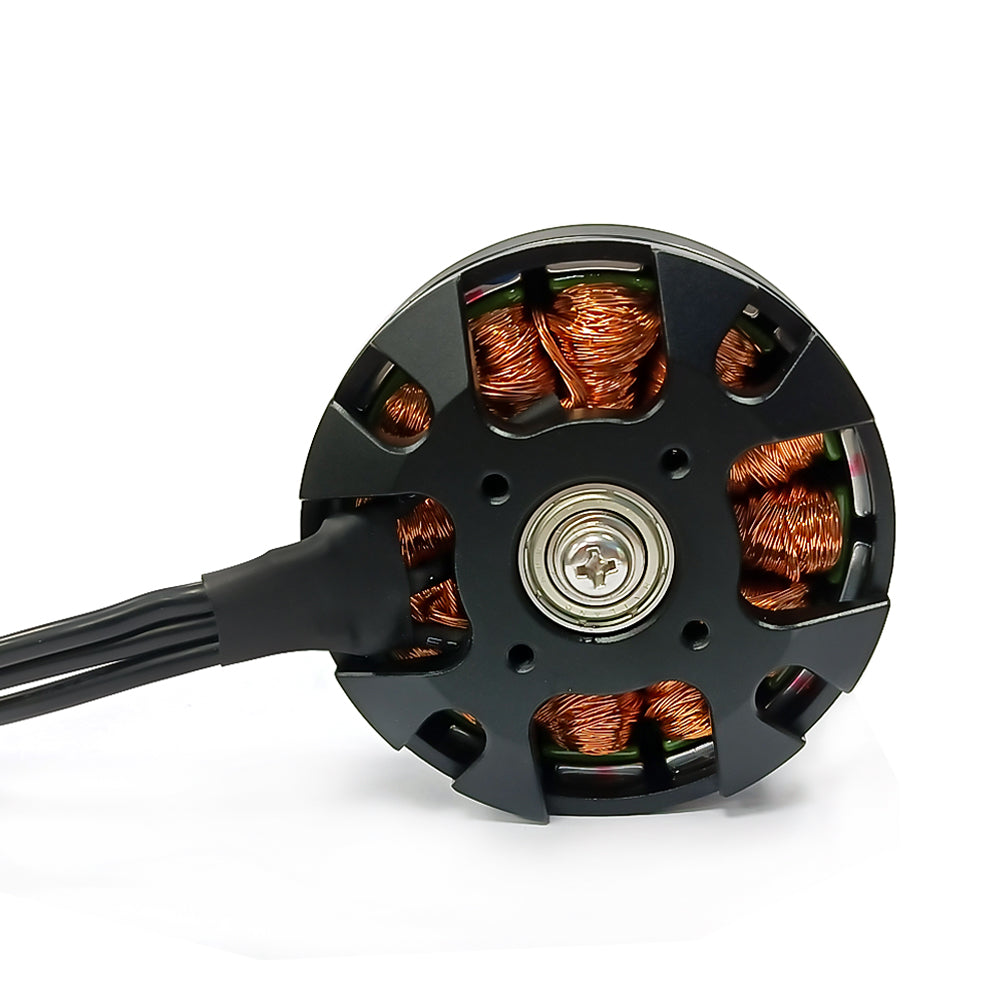

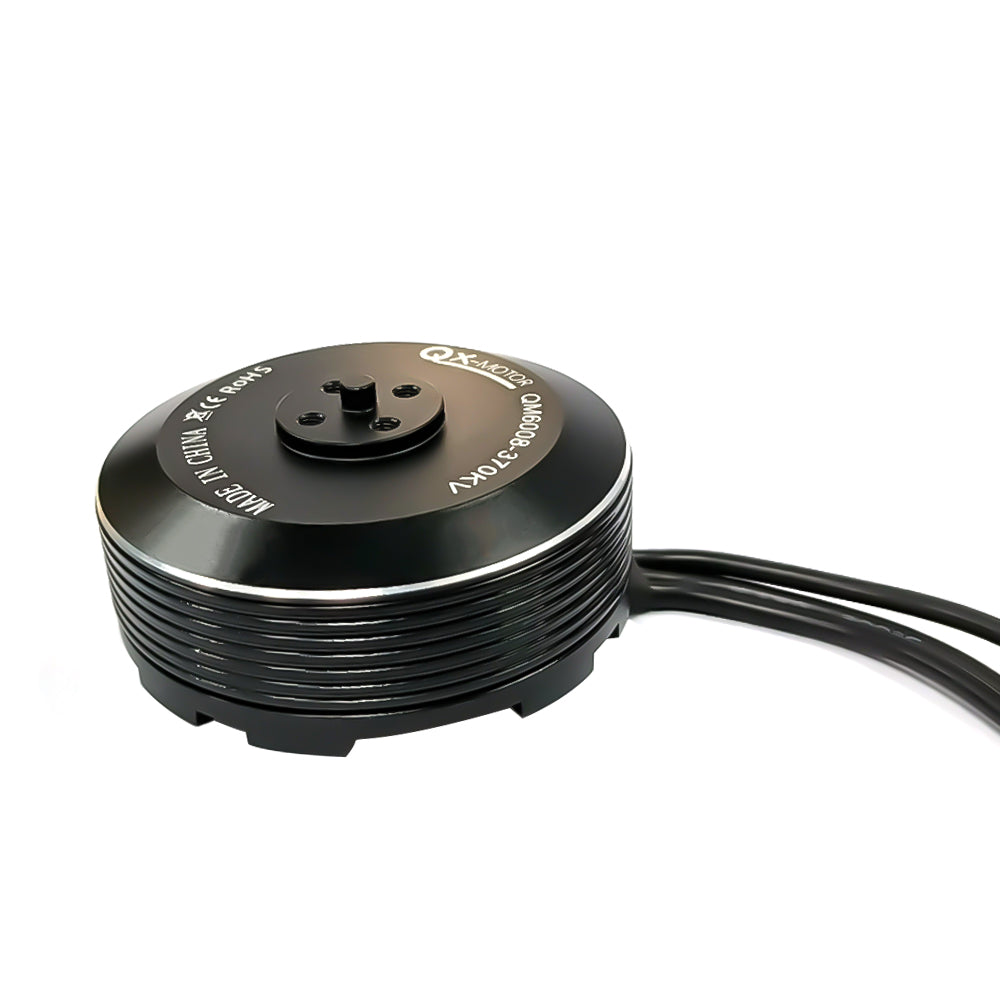

QX-Motor QM6008 320KV 370KV Brushless Motor for ZD850 T960 T810 Multi Wing Aircraft
QX-Motor QM6008 320KV 370KV Brushless Motor for ZD850 T960 T810 Multi Wing Aircraft
Regular price
$48.99 USD
Regular price
$68.99 USD
Sale price
$48.99 USD
Unit price
per
Couldn't load pickup availability
QX-Motor QM6008 320KV 370KV Brushless Motor for ZD850 T960 T810 Multi Wing Aircraft
| Model: | QM6008 |
| RPM: | 320KV / 370KV |
| Configuration: | 12N14P |
| Shaft Diameter: | 52mm |
| Stator Length: | 8mm |

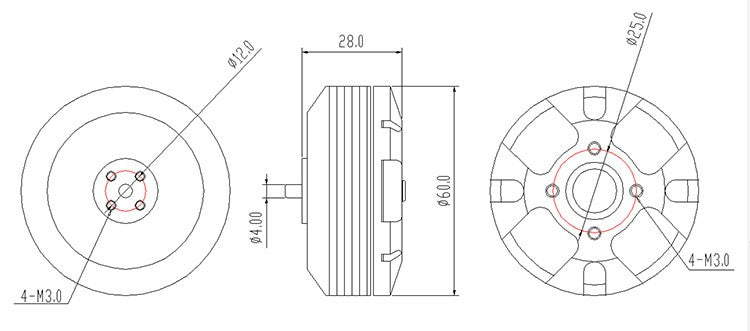

| Motor Dimension: | 60.3x27.58 |
| Weight: | 200g |
| Idle current@10.0V: | 0.5A |
| No.f cells: | 3/6S Lipo |
| Max Continuous Power: | 650W |
| Max Continuous Current: | 30A |
Test Specification:
| Model | Propeller | Volts (V) |
Amps (A) |
Watts (W) |
Thrust (g) |
Thrust (oz) |
Efficiency (g/w) |
Efficiency (oz/w) |
Throttle (E) |
| QM6008 320KV |
15x5.5 | 22.2 | 14.3 | 311 | 1980 | 69.84 | 6.37 | 0.22 | 100% |
| 17x5.5 | 22.2 | 19.8 | 440 | 3050 | 107.58 | 6.94 | 0.24 | 100% | |
| 18x5.5 | 22.2 | 24.4 | 542 | 3520 | 124.16 | 6.5 | 0.23 | 100% | |
| QM6008 370KV |
15x5.5 | 22.2 | 1.6 | 36 | 460 | 16.23 | 12.95 | 0.46 | 50% |
| 22.2 | 5.6 | 124 | 1250 | 44.09 | 10.05 | 0.35 | 65% | ||
| 22.2 | 10.0 | 222 | 1910 | 67.67 | 8.6 | 0.3 | 75% | ||
| 22.2 | 12.4 | 275 | 2220 | 78.31 | 8.06 | 0.28 | 80% | ||
| 22.2 | 19.4 | 431 | 3020 | 106.53 | 7.01 | 0.25 | 100% | ||
| 16x5.5 | 22.2 | 2.5 | 56 | 620 | 21.87 | 11.17 | 0.39 | 50% | |
| 22.2 | 11.7 | 260 | 1850 | 65.26 | 7.12 | 0.25 | 65% | ||
| 22.2 | 21.0 | 466 | 2660 | 93.83 | 5.71 | 0.20 | 75% | ||
| 22.2 | 26.9 | 597 | 3050 | 107.58 | 5.11 | 0.18 | 80% | ||
| 22.2 | 36.0 | 799 | 3550 | 125.22 | 4.44 | 0.16 | 100% | ||
| 17x5.5 | 22.2 | 2.3 | 51 | 680 | 23.99 | 13.32 | 0.47 | 50% | |
| 22.2 | 9.9 | 220 | 2000 | 70.55 | 9.1 | 0.32 | 65% | ||
| 22.2 | 18.3 | 406 | 3020 | 106.53 | 7.43 | 0.26 | 75% | ||
| 22.2 | 24.2 | 537 | 3600 | 126.98 | 6.7 | 0.24 | 80% | ||
| 22.2 | 34.5 | 766 | 4500 | 158.73 | 5.88 | 0.21 | 100% |
