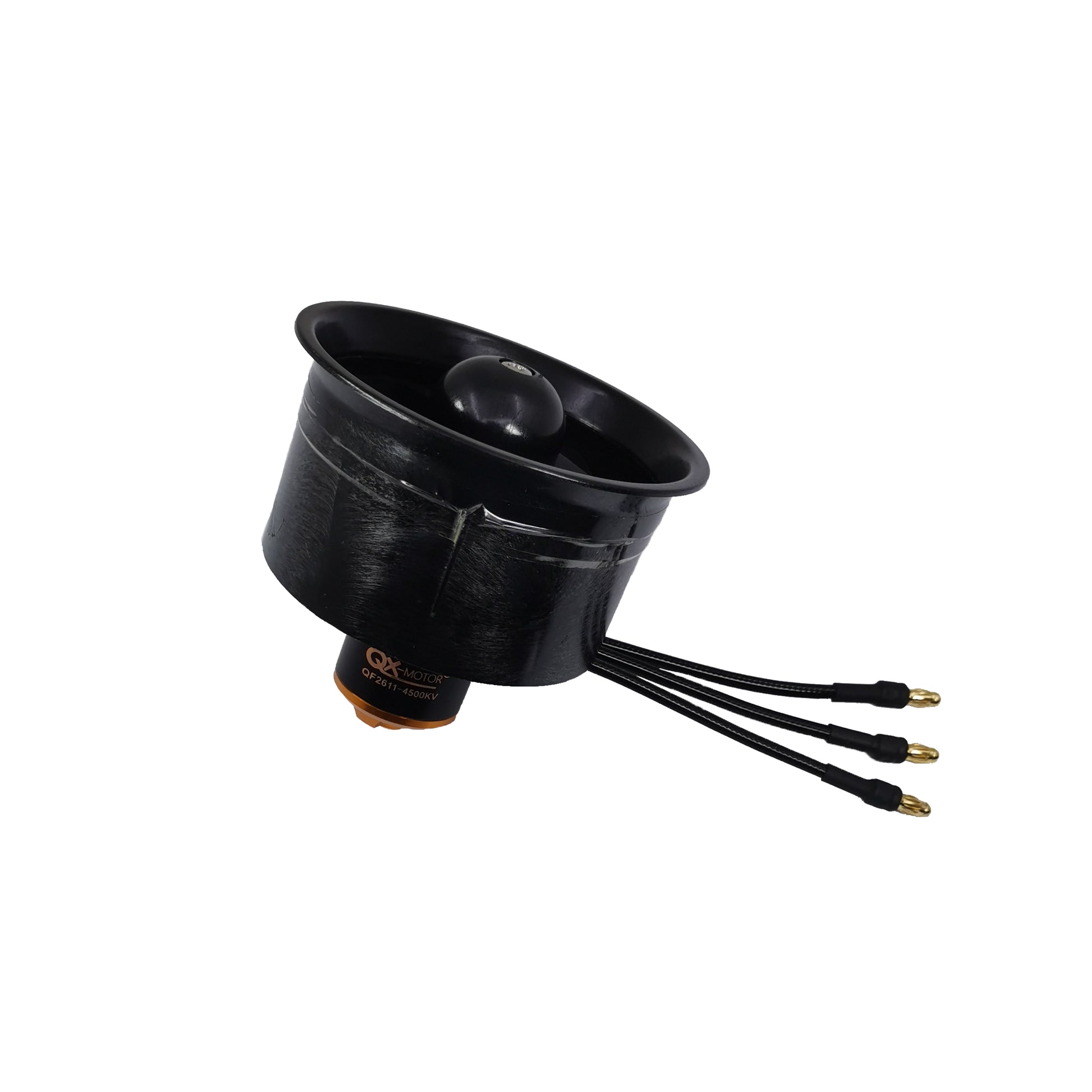

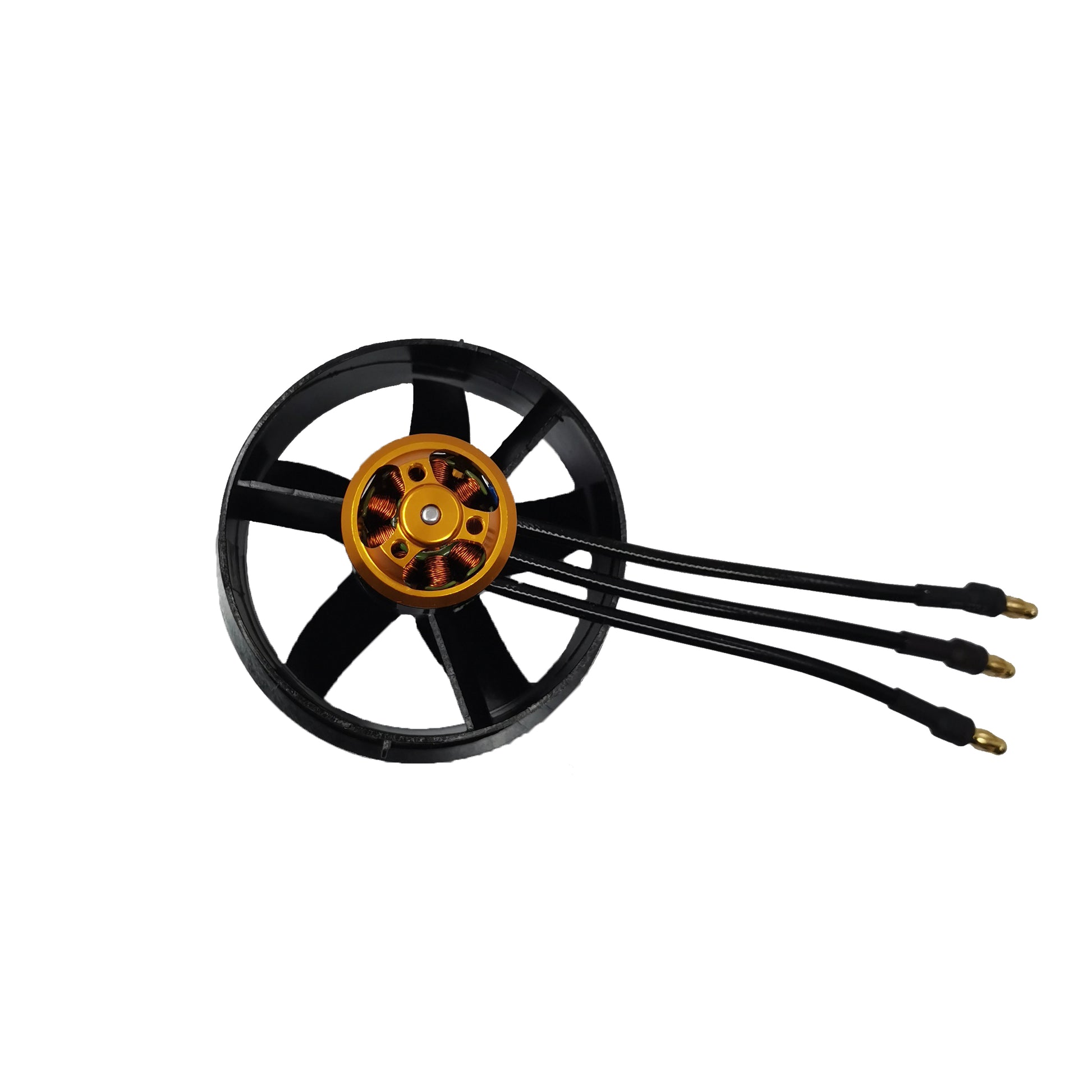

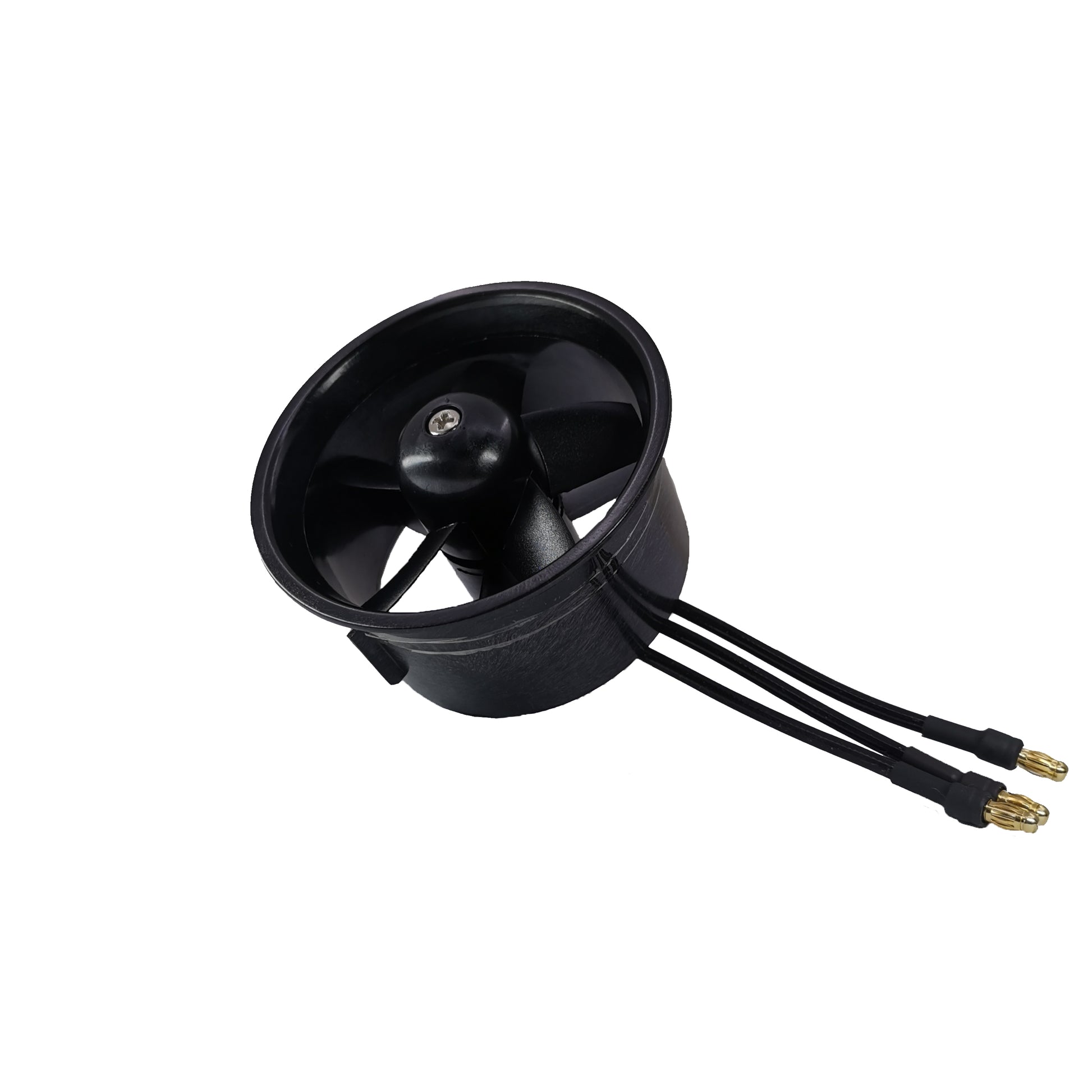

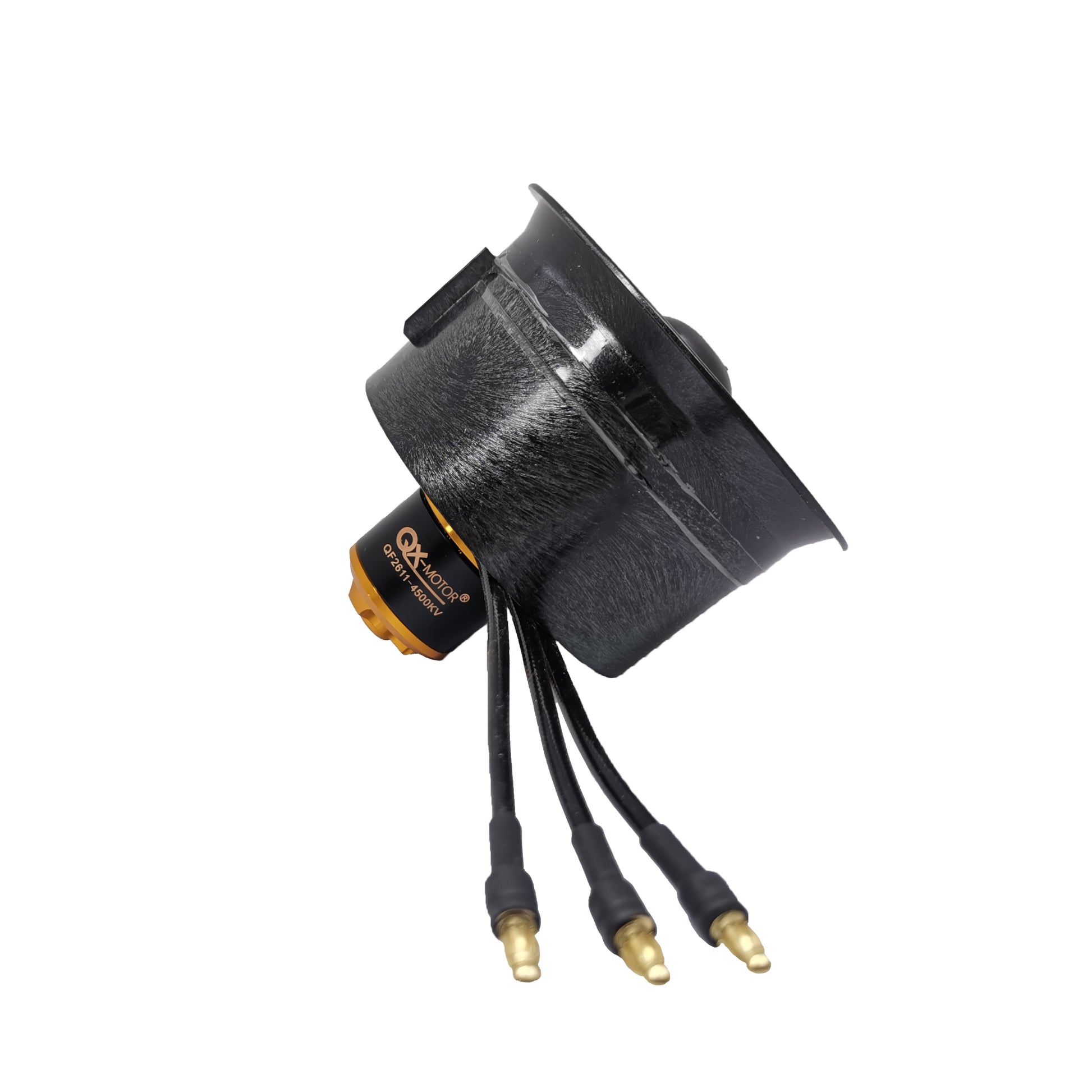

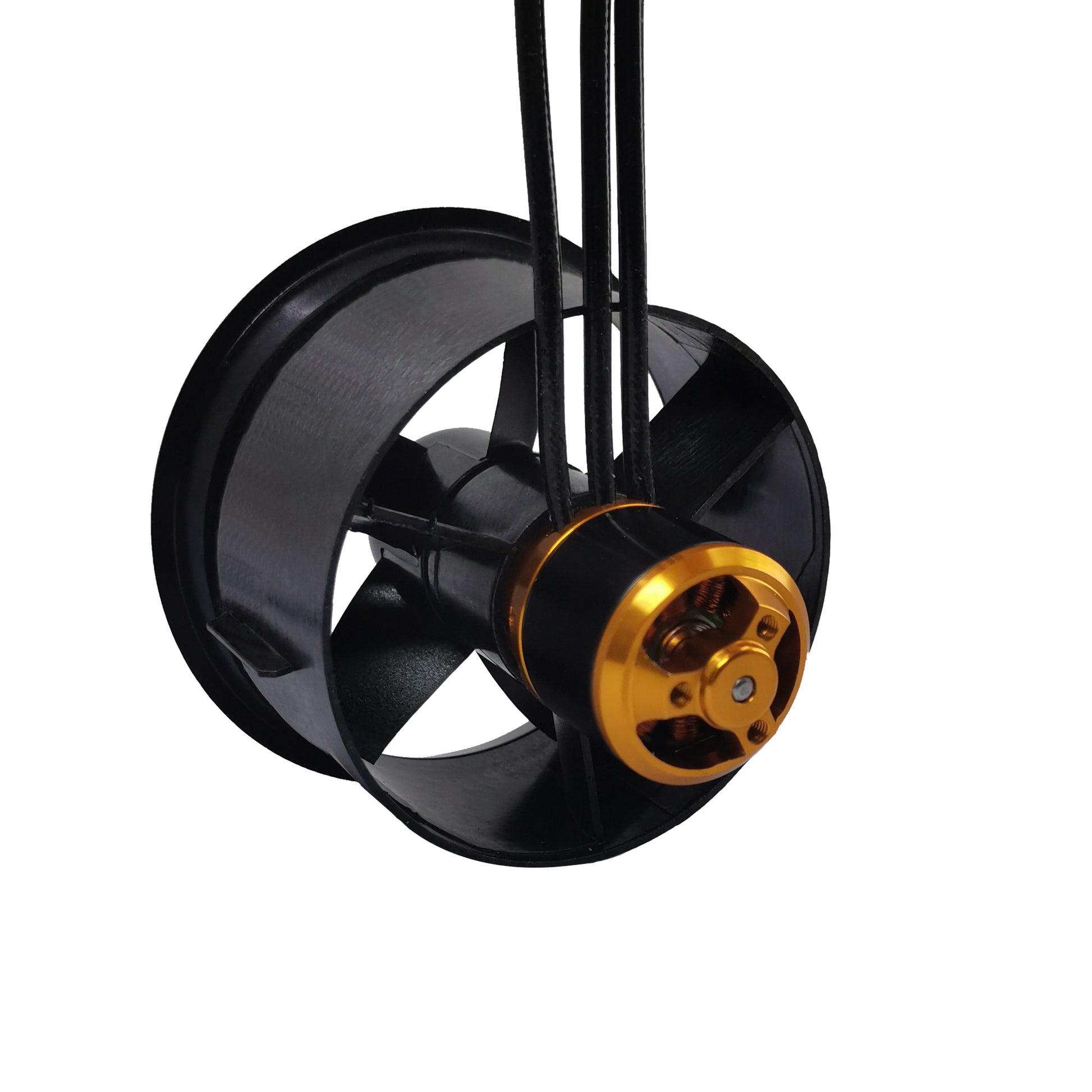

QX-Motor 64mm EDF 4500KV Brushless Motor with 5 Blades Ducted Fan for FMS RC Airplane
QX-Motor 64mm EDF 4500KV Brushless Motor with 5 Blades Ducted Fan for FMS RC Airplane
Couldn't load pickup availability

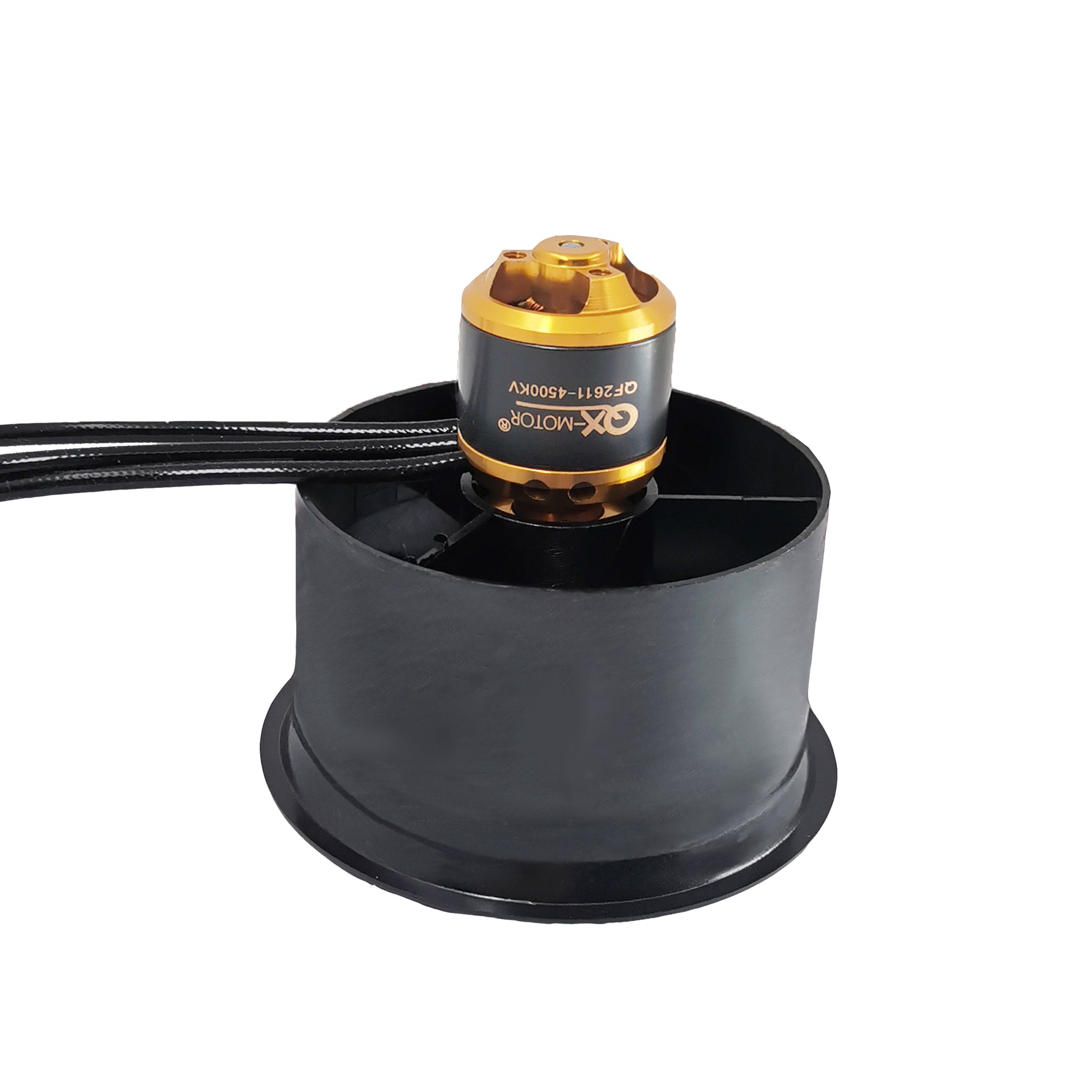

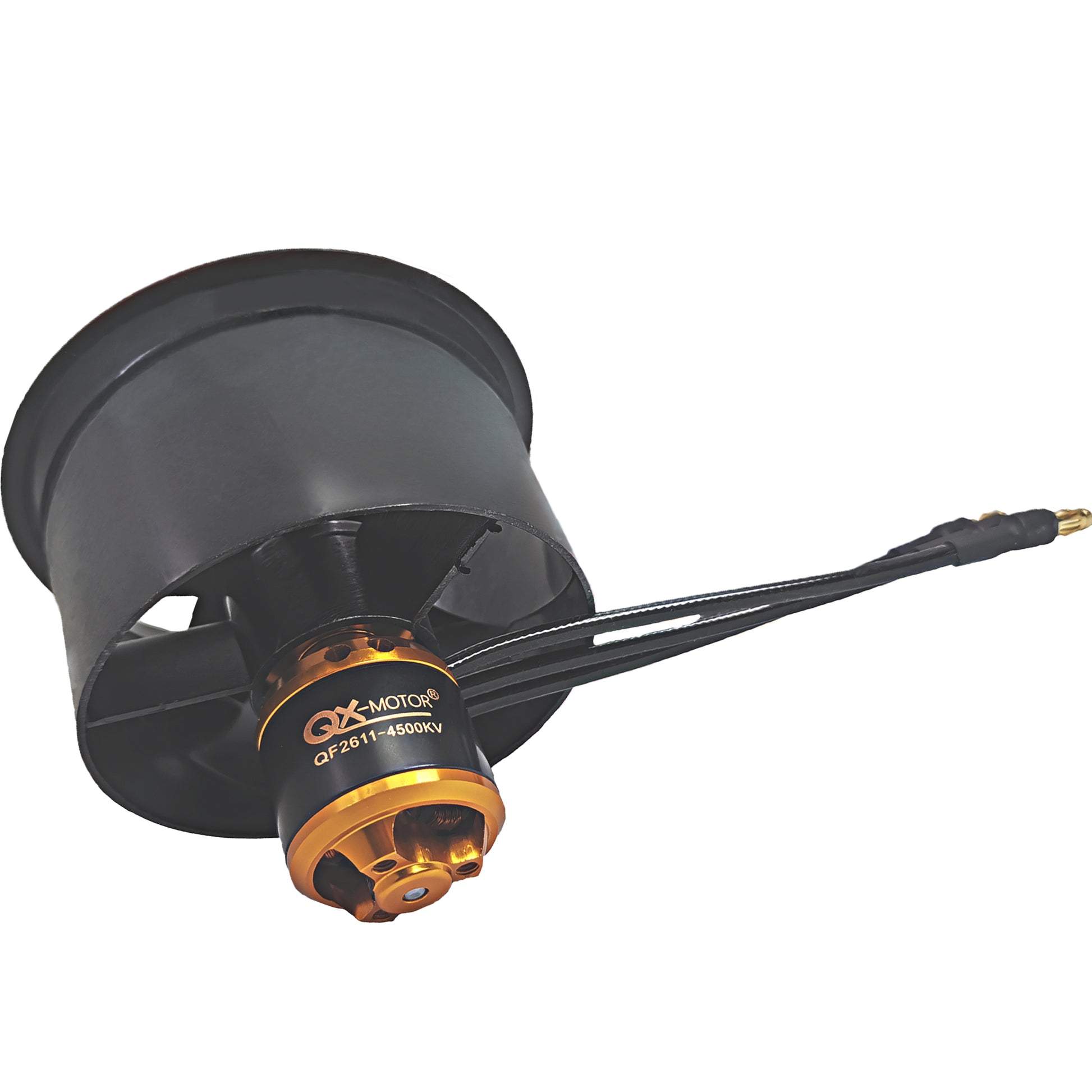

QX-Motor 64mm EDF 4500KV Brushless Motor with 5 Blades Ducted Fan for FMS RC Airplane
Description:
Brand Name: QX-Motor
Item Name: EDF unit with the brushless motor set

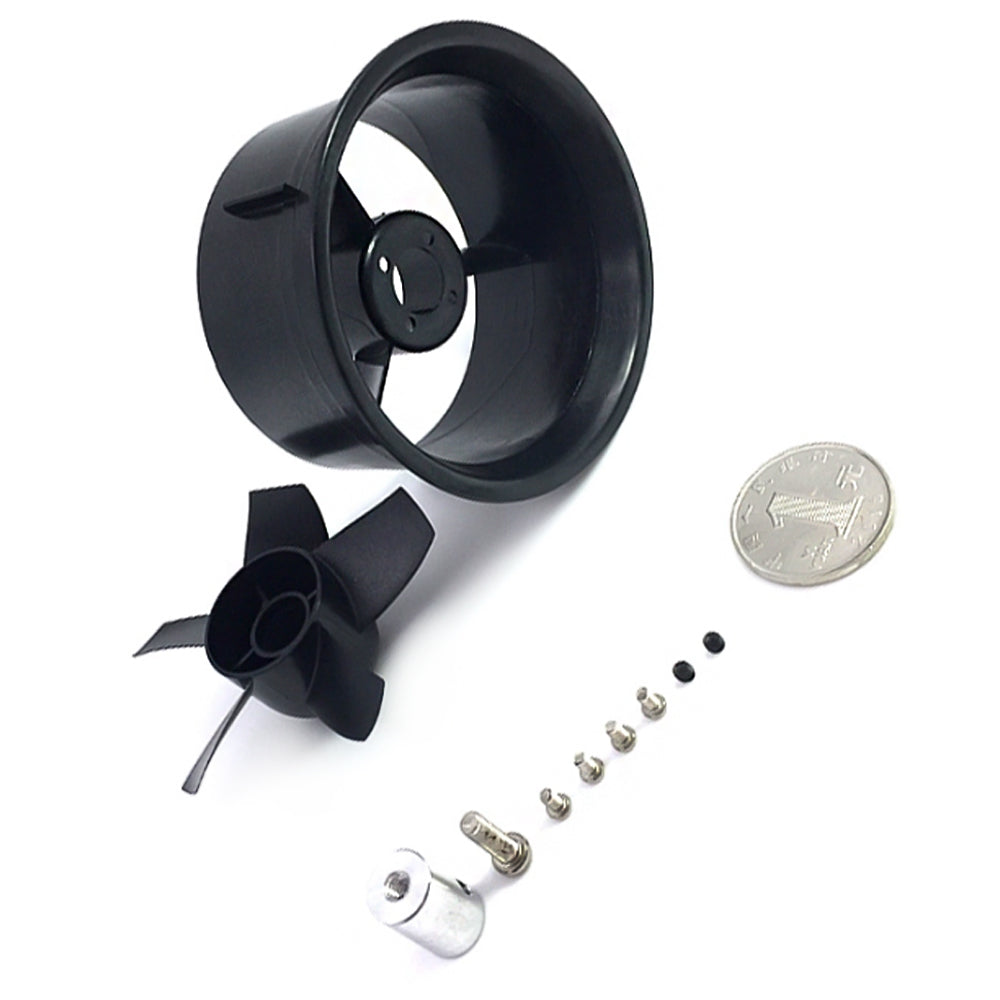

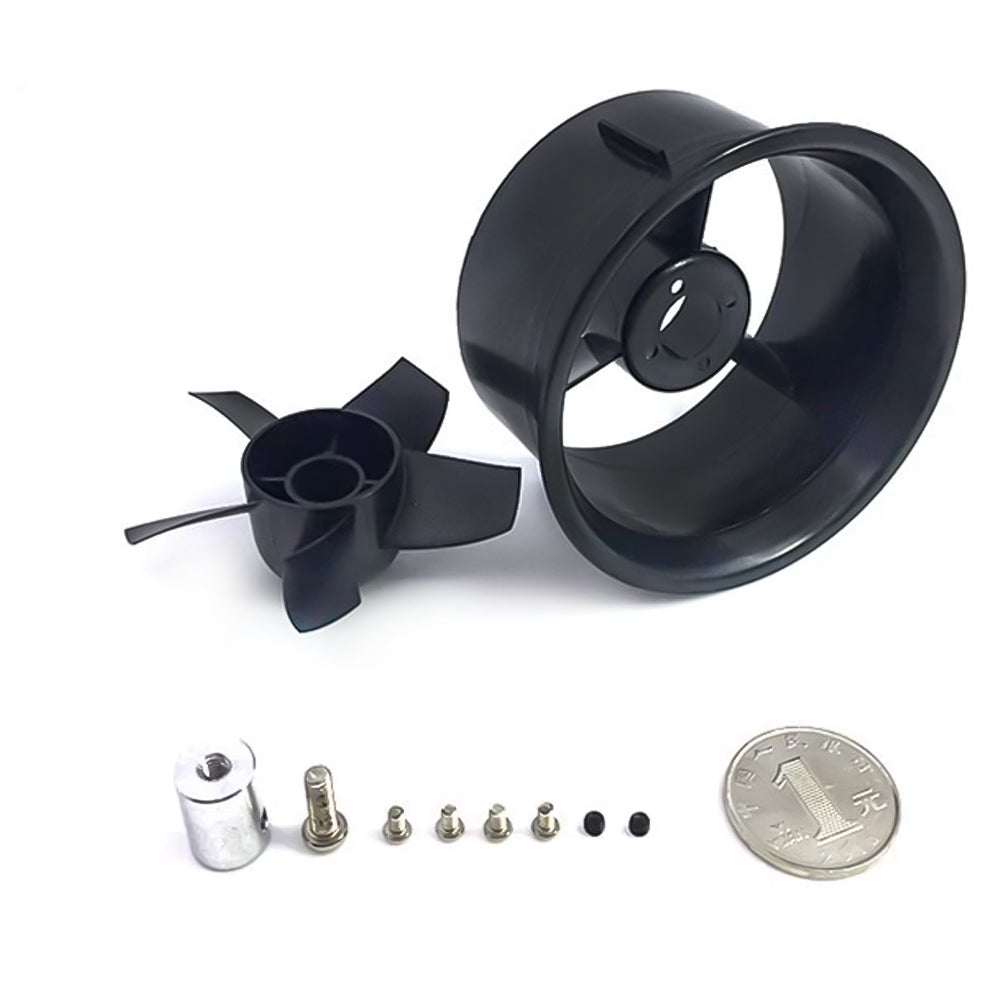

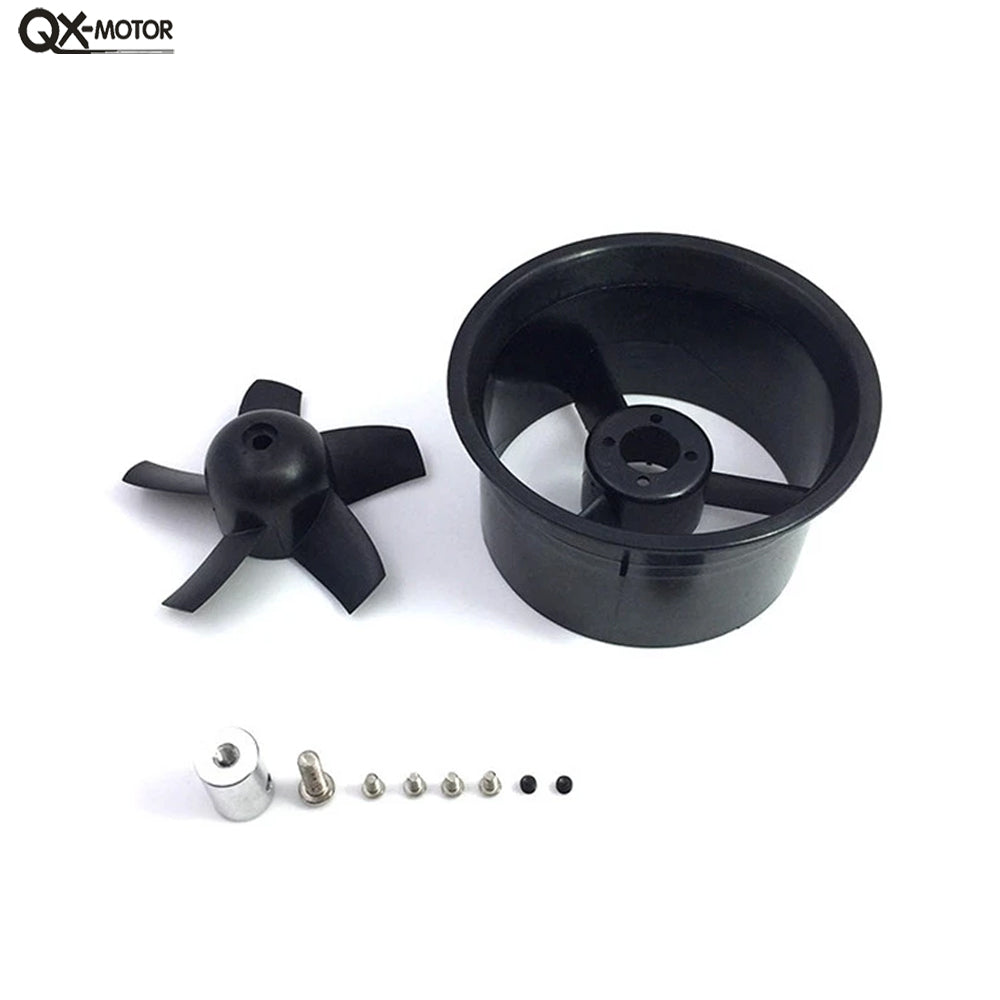

EDF Unit: 64mm 5 blades

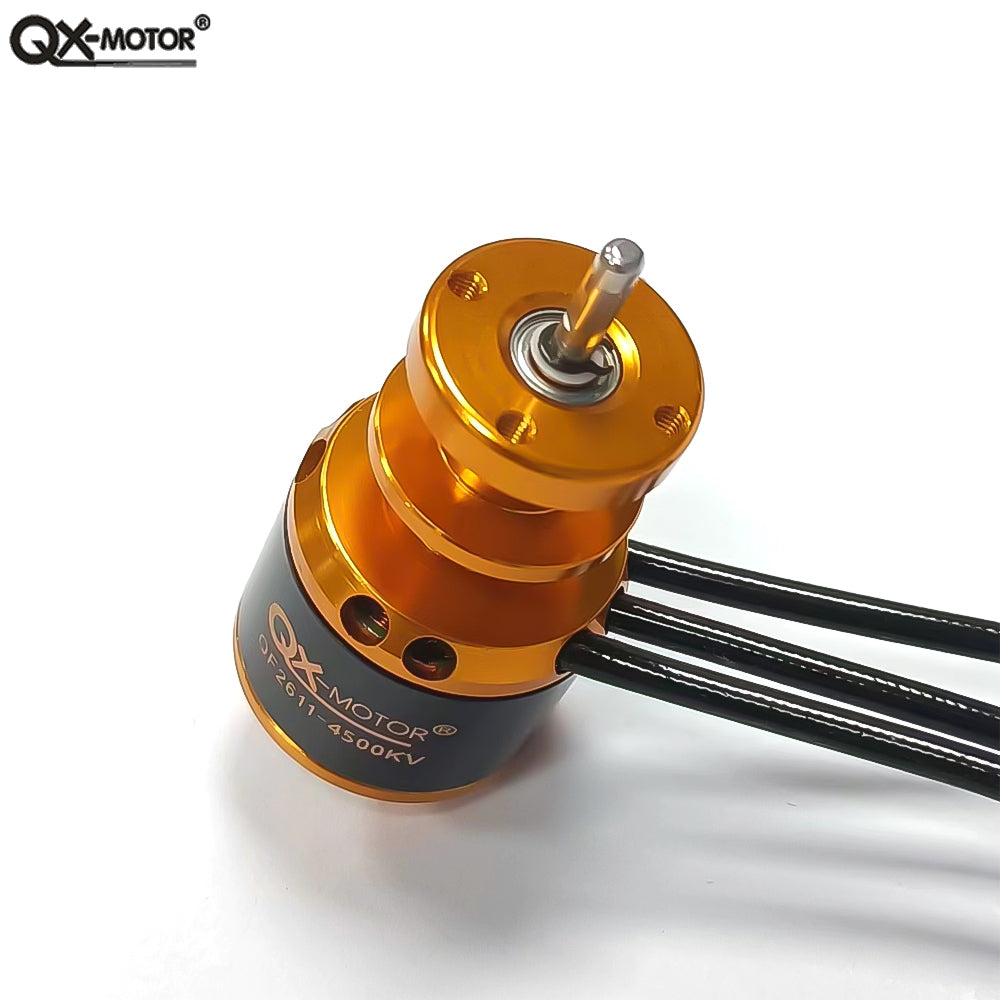

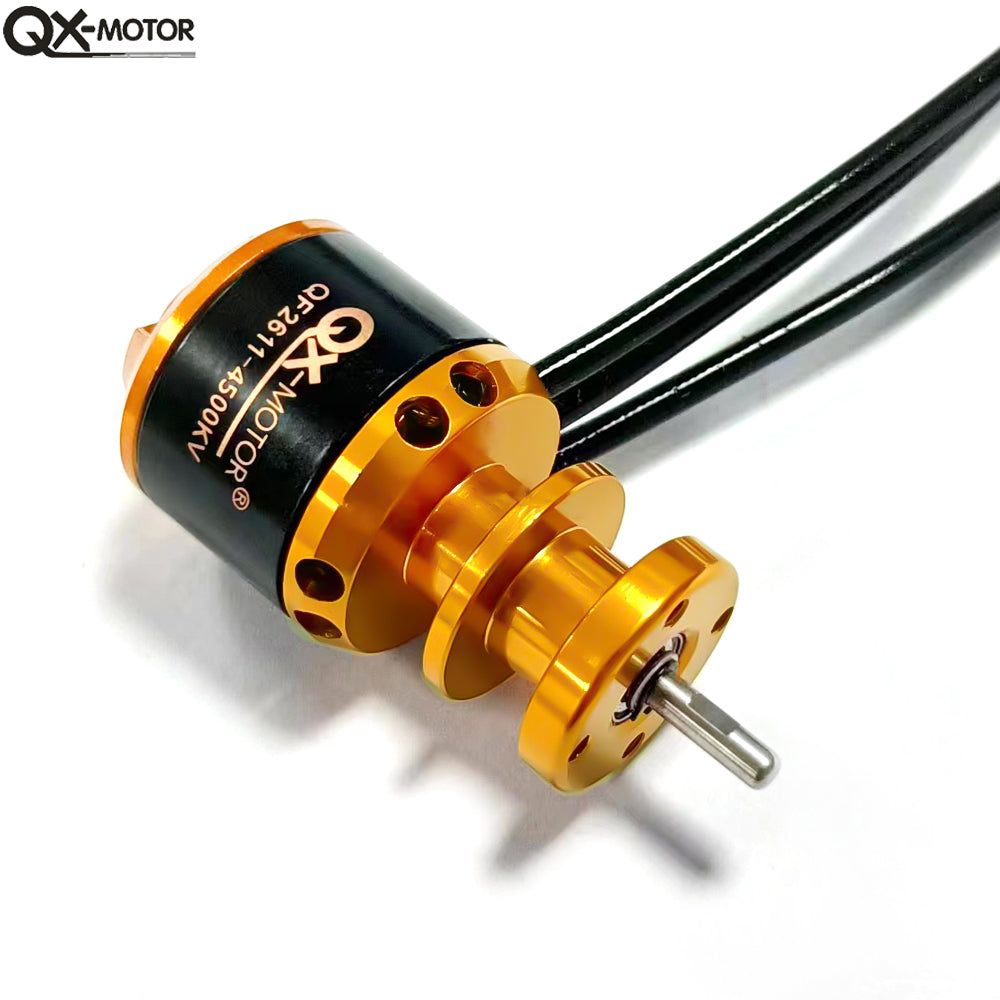

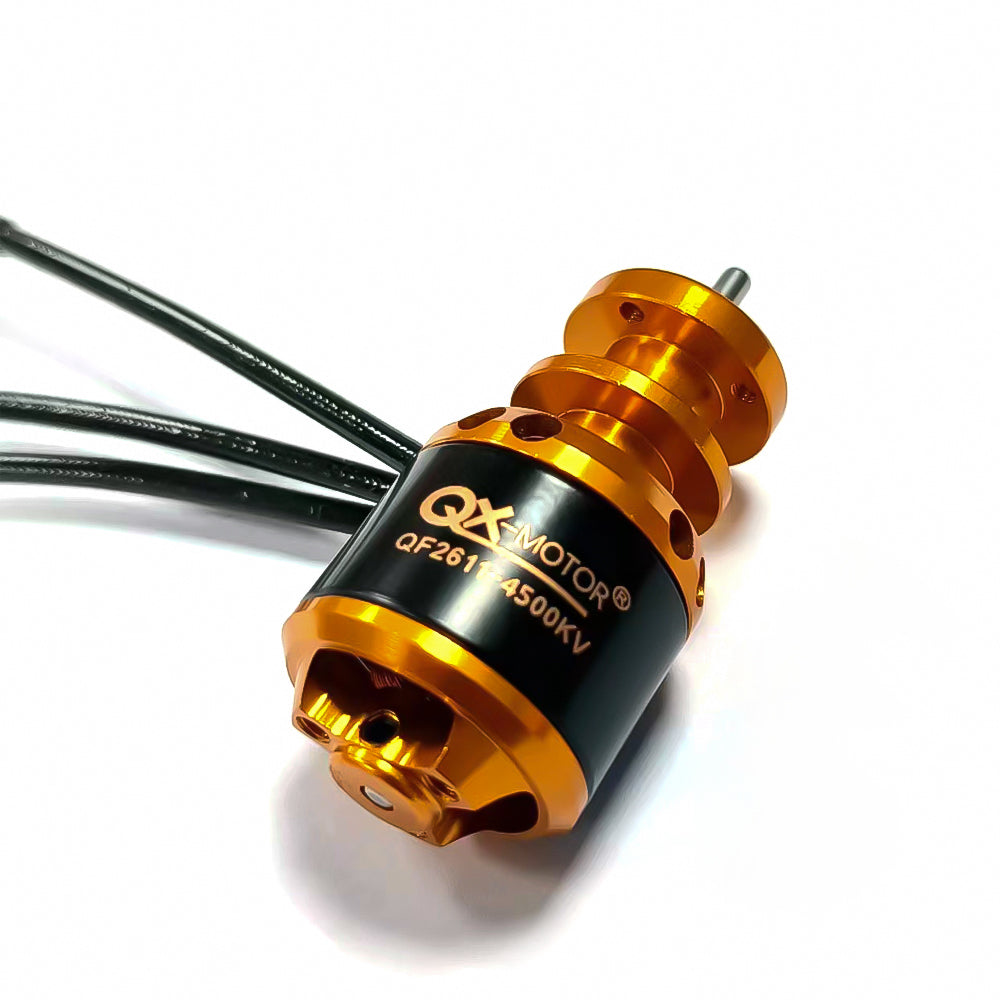

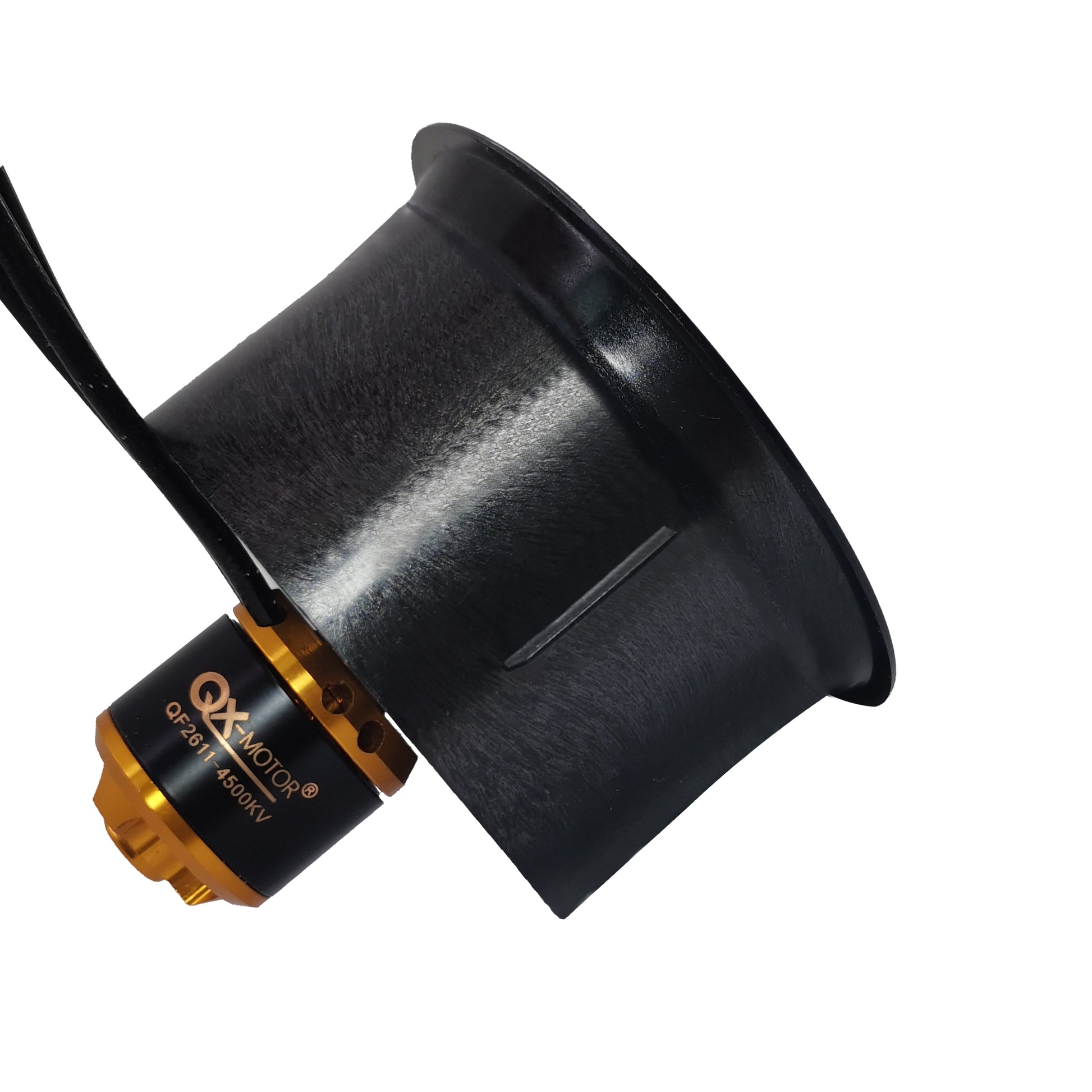

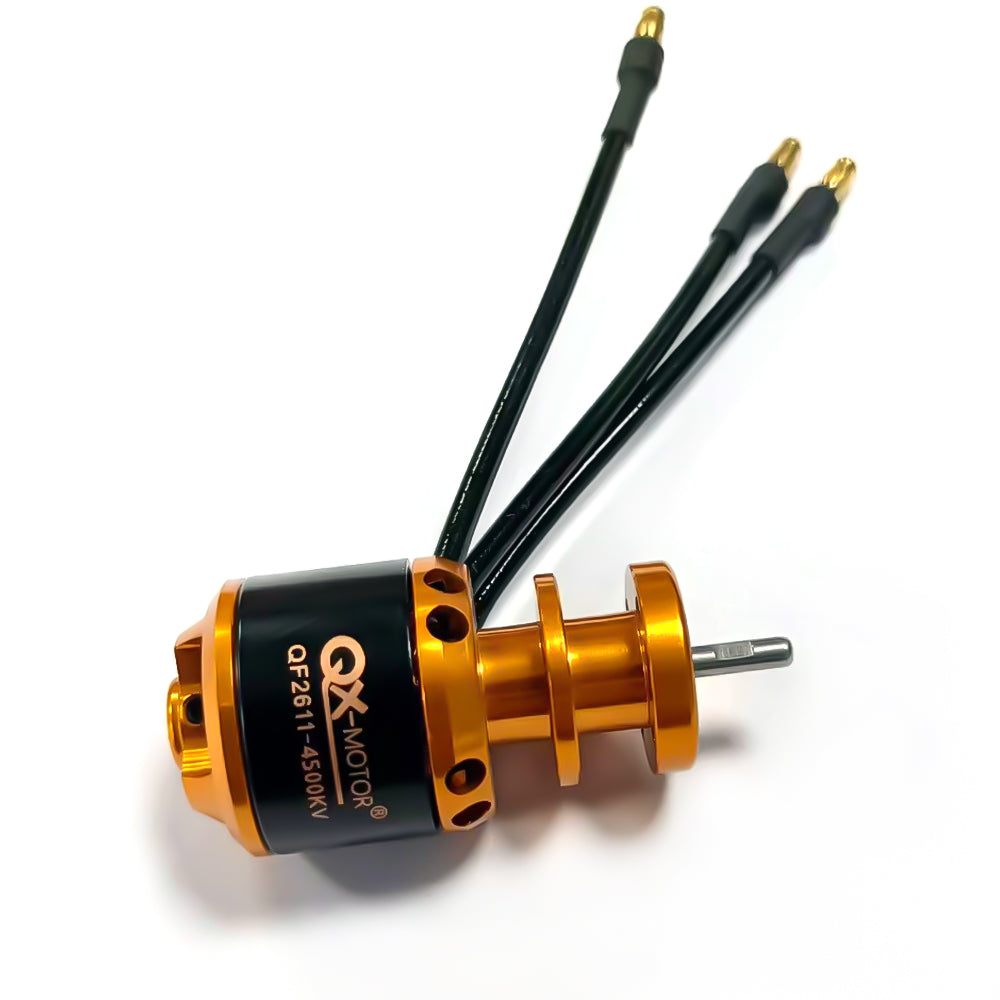

Brushless Motor: QF2611-4500KV
Specifications
Motor: QF2611-4500KV
Idle Current 10.0V 1.8A
Configuration 9N6P
No.of Cells(Lipo) 3S
Stator Diameter 20.2mm
Max Continuons Current(A)/60s 27A
Stator Length 11mm
Max Continuous Power(W)/60s 280W
Shaft Diameter 3mm
Max Efficiency >70%
Motor Dimension 26x47mm
Internal Resistance 0.043ohMs
Weight 49 Recom.
ESC 30A
Tested With 30A ESC:
| Model | Volts (V) |
Amps (A) |
Watts (W) |
Thrust (g) |
Thrust (OZ) |
Efficiency (g/W) |
Efficiency (OZ/W) |
ESC |
| QF2611-4500KV | 11.1 | 25 | 277.5 | 750 | 26.46 | 2.7 | 0.1 | 30A |
