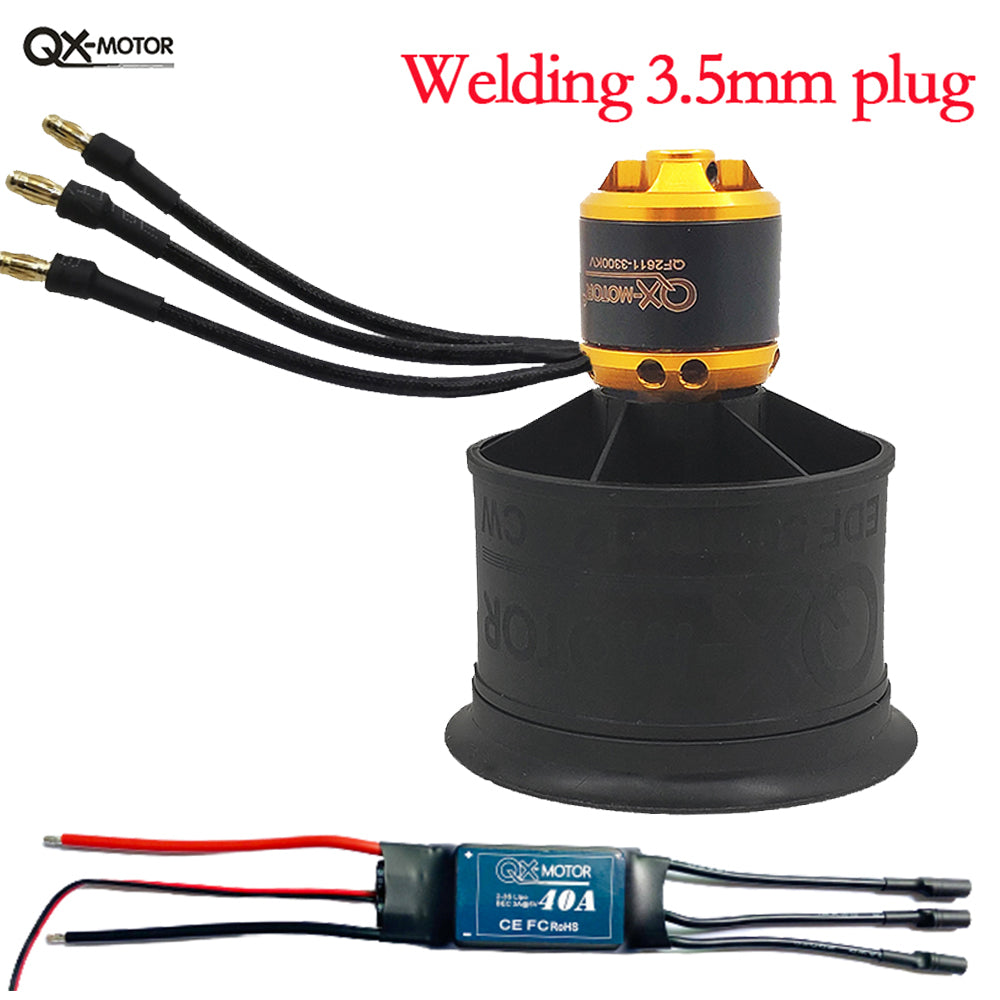

QX-MOTOR 50mm EDF 12 Blades Ducted Fan CW CCW with 40A 50A ESC 3S 4S Brushless Motor

QX-MOTOR 50mm EDF 12 Blades Ducted Fan CW CCW with 40A 50A ESC 3S 4S Brushless Motor

$46.00 USD
$46.00 USD
Sale Sold out
QF2611
电机型号(model) QF2611
ＫＶ(rpm) 3300KV/4000KV/4600KV/5000KV
架构 (Configu-ration) 9Ｎ6Ｐ

(Shaft Diameter) 3.0mm

(motor Diameter) 25.8mm

(weight(g)) 76G

(No.f cells) 3-4ＳＬipo
(Ｗ)(max continuous power)/10S 550w
(Ａ)(max continuous current)/10S 45Ａ
Prop Volts (V)

 Amps (A)

 Watts (W) Thrust (g) Thrust (oz) Efficiency
(g/W)

 Efficiency
(oz/W)		 motor model
　		 ESC
50mm EDF

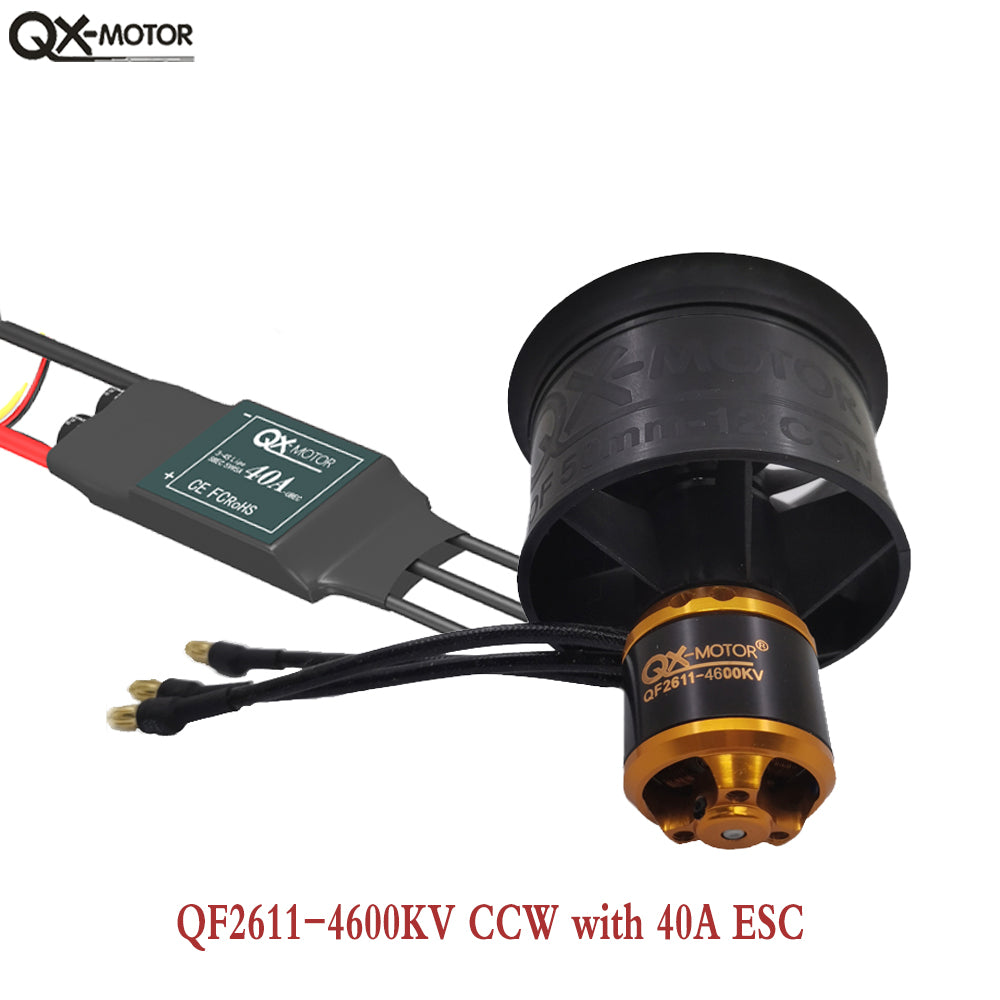

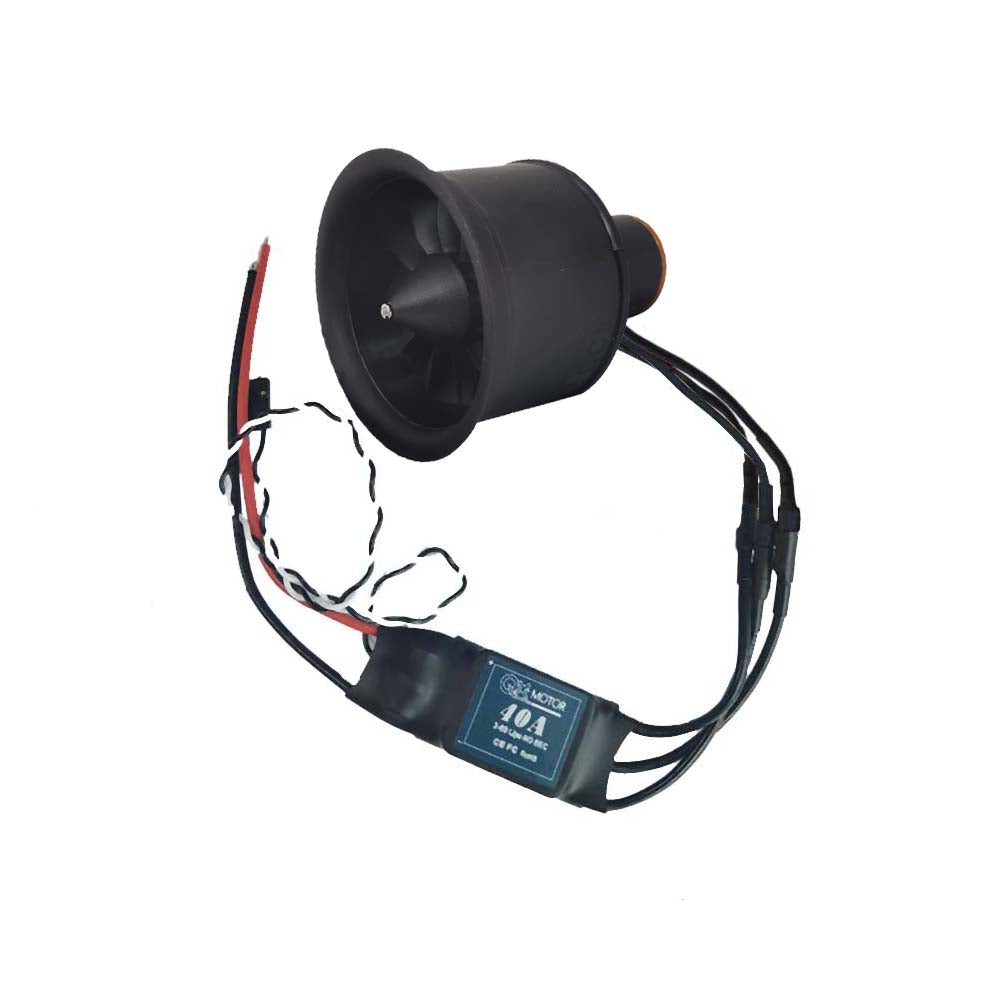

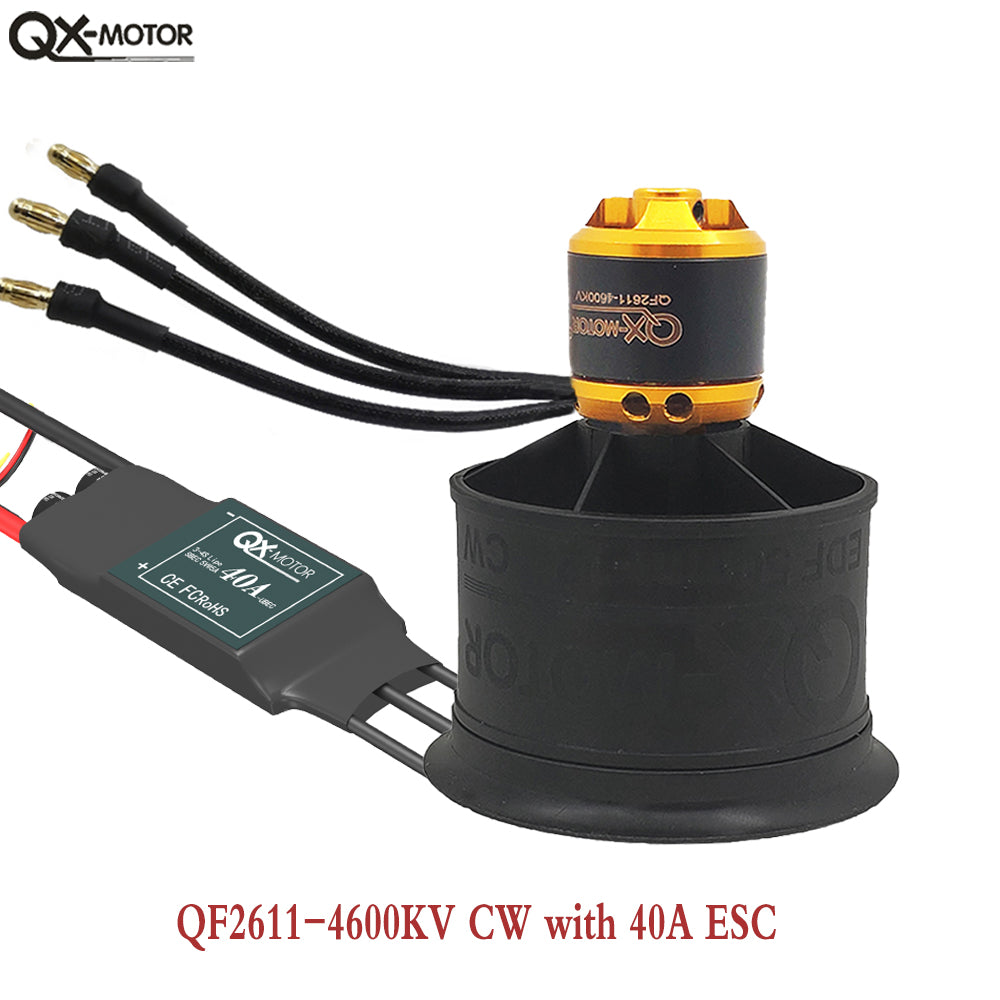

（12叶）		 12.6 32.0 403.2 780 27.51 1.93 0.07 QF2611  4600kv 40A

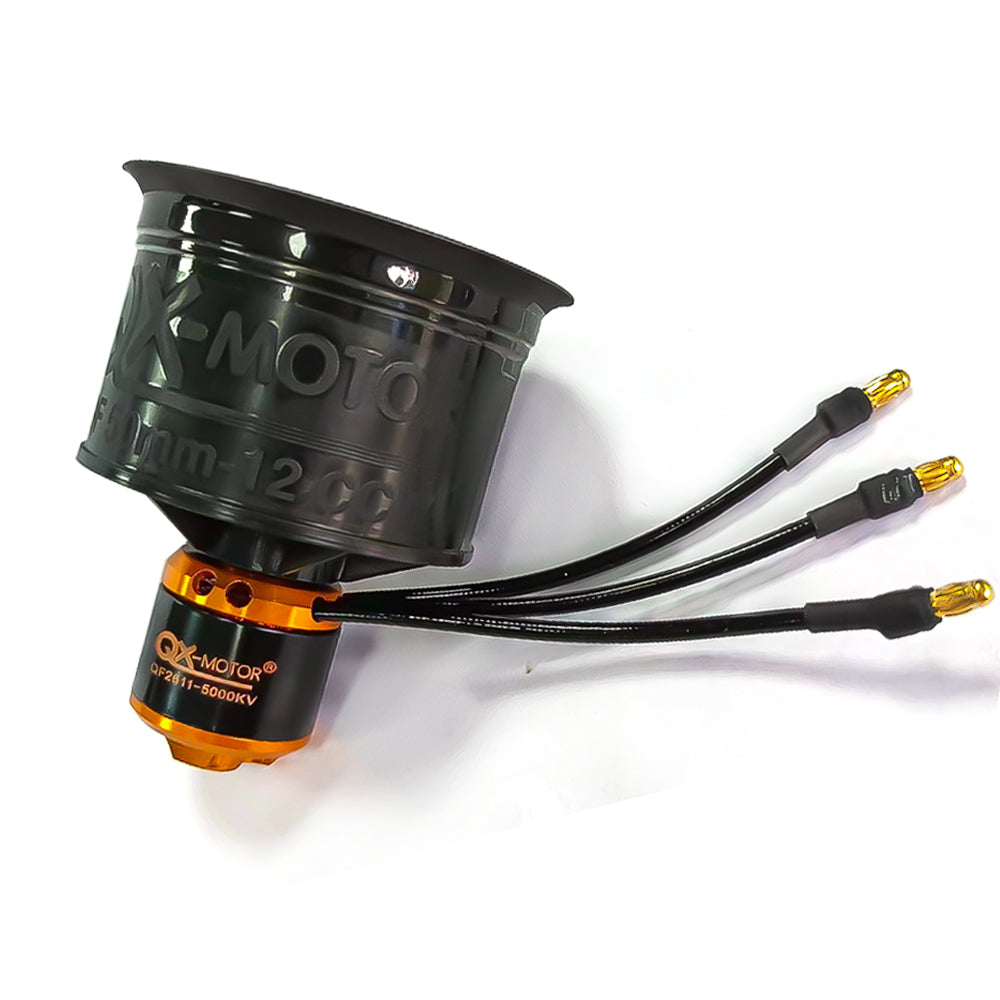

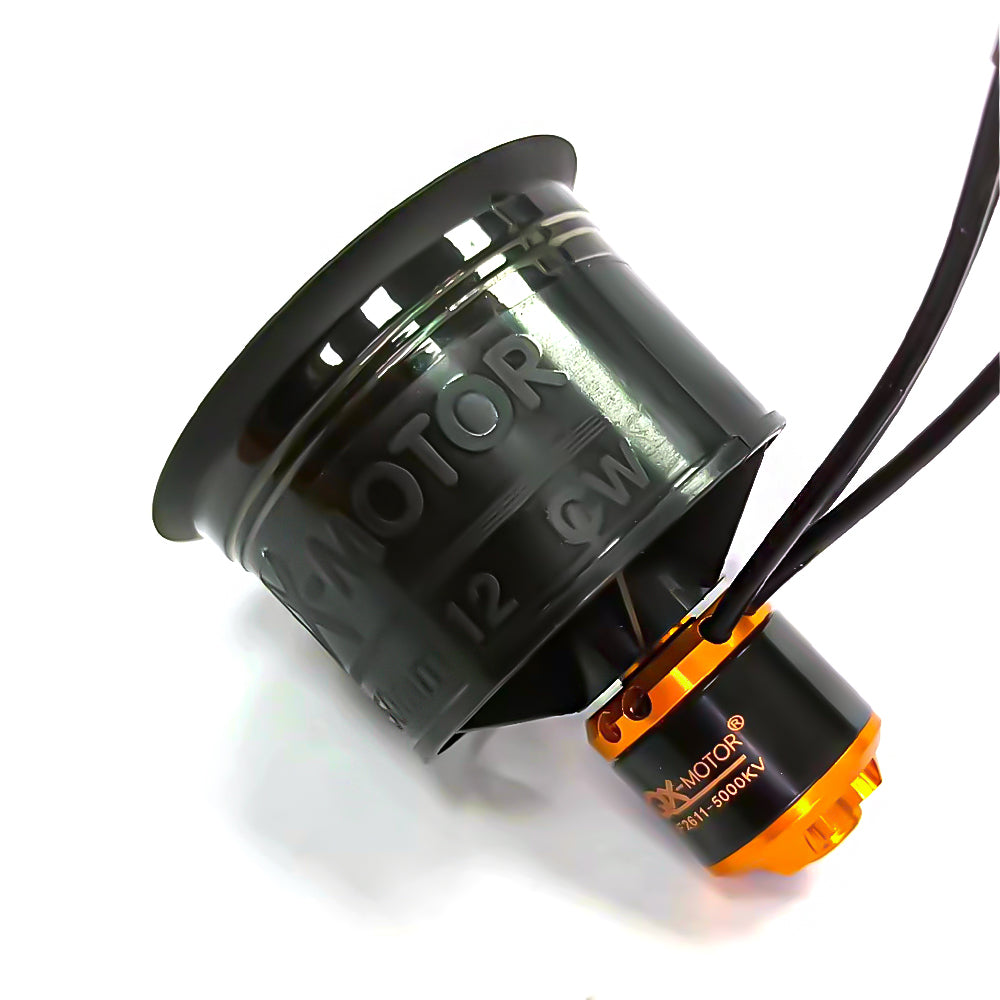

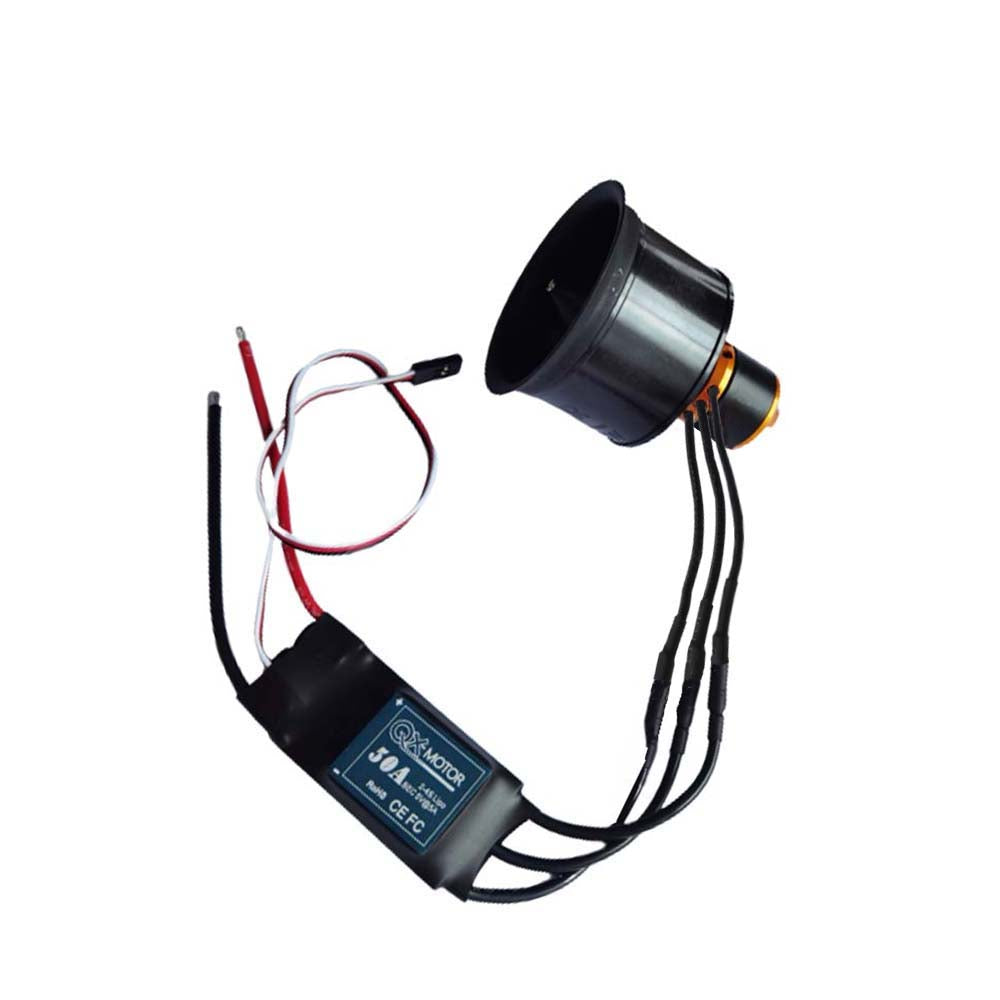

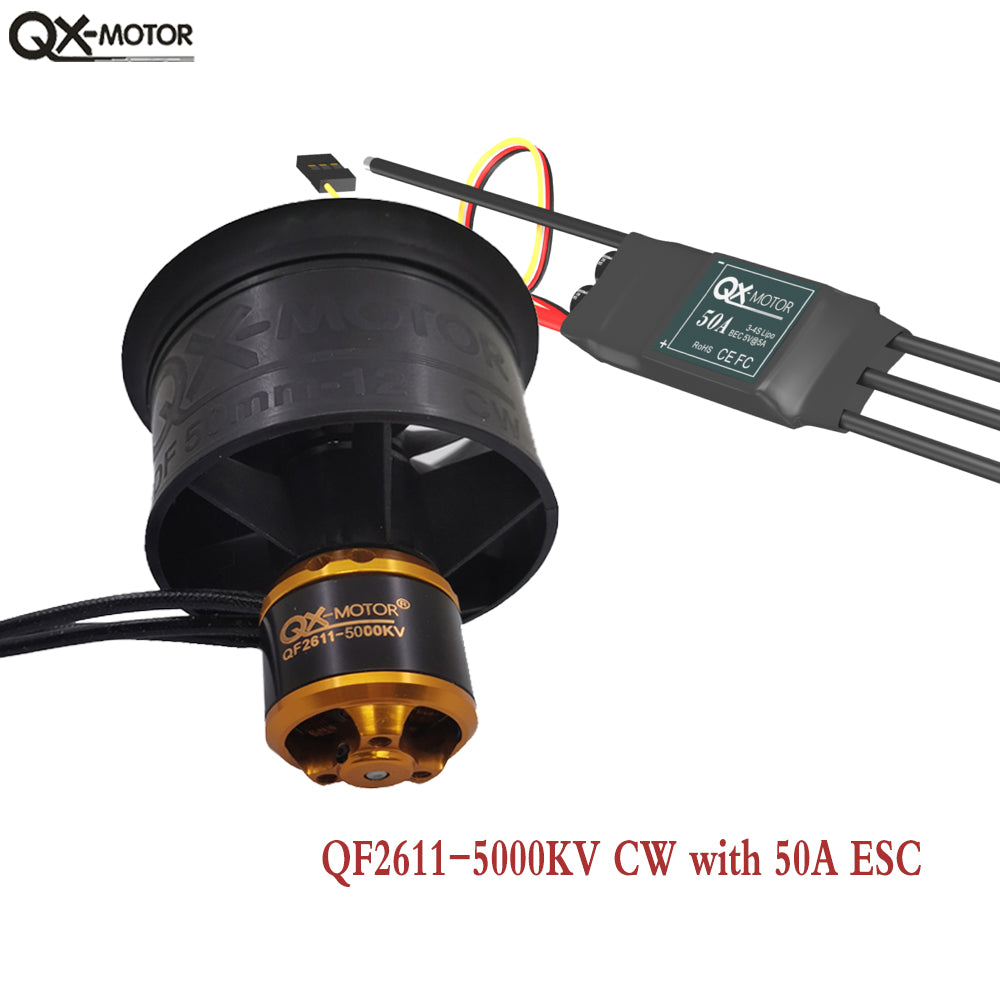

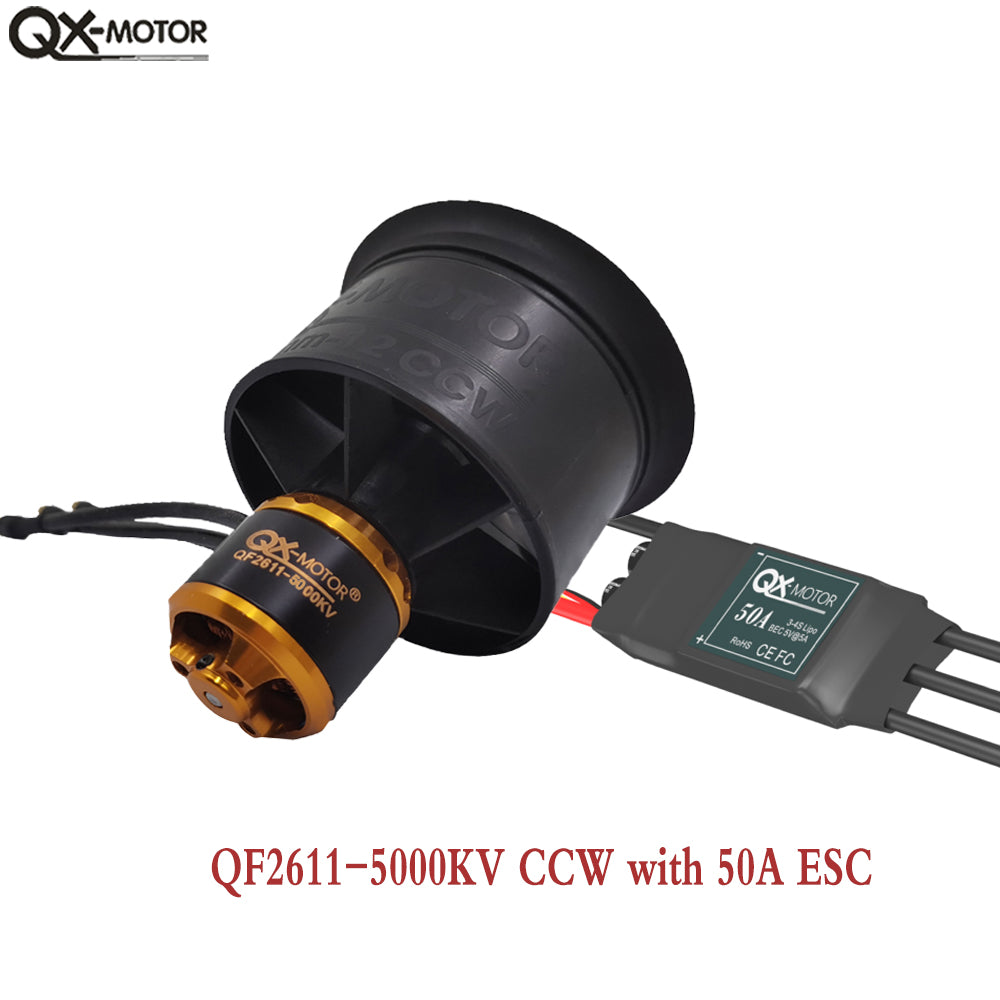

12.6 45.0 567 950 33.51 1.68 0.06 QF2611  5000kv 50A

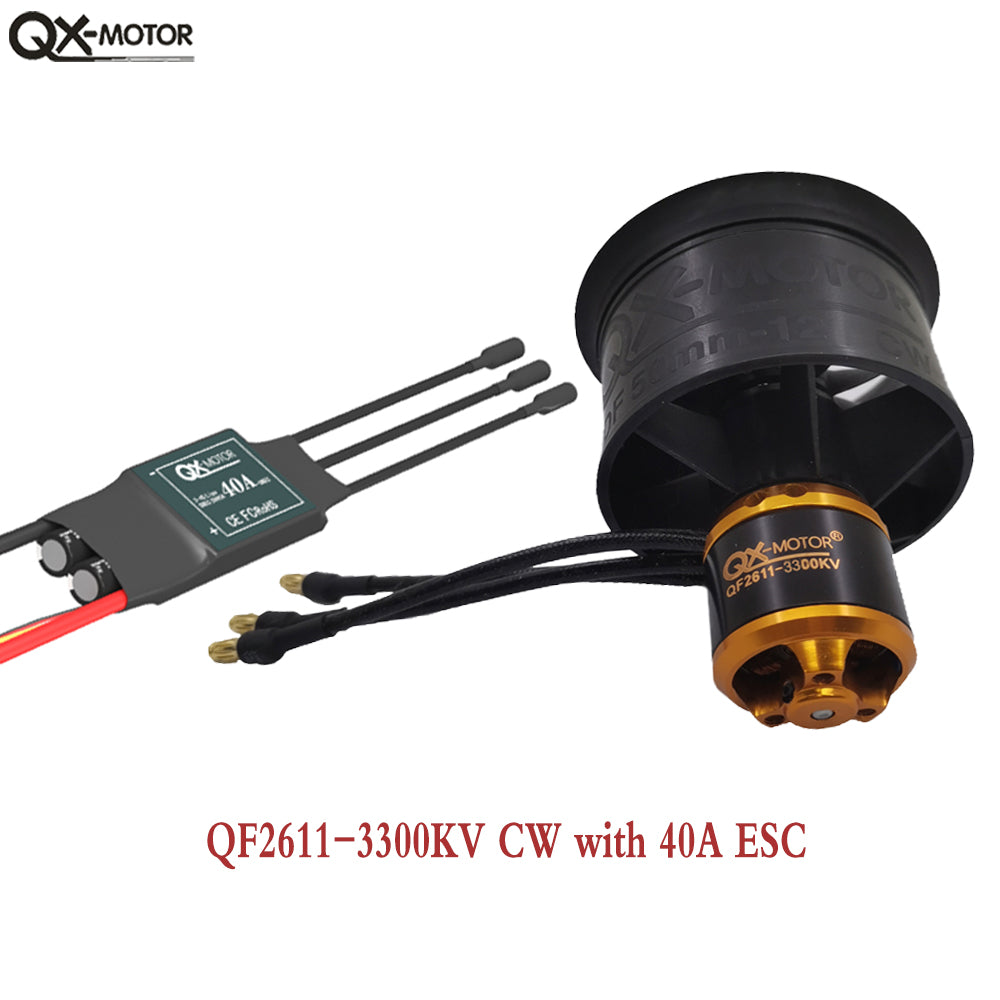

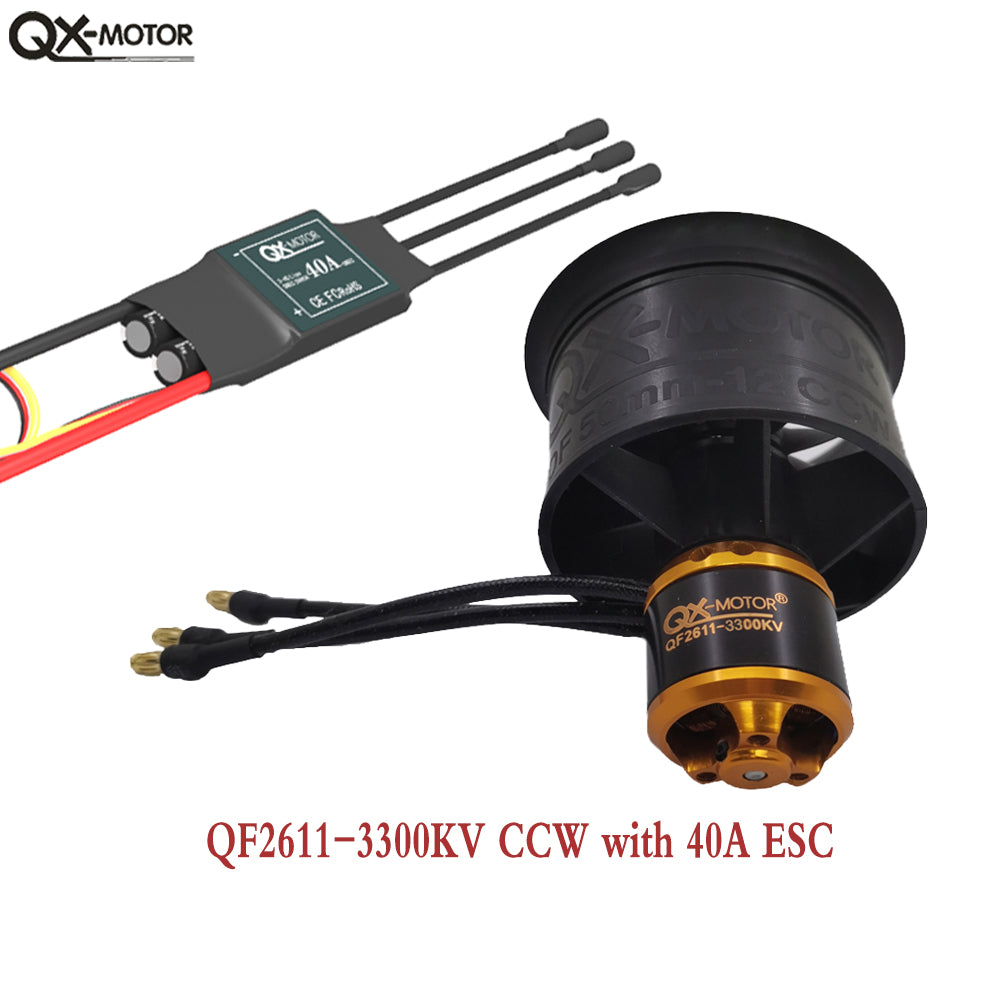

16.2 22.0 356.4 750 26.46 2.10 0.07 QF2611  3300kv 40A

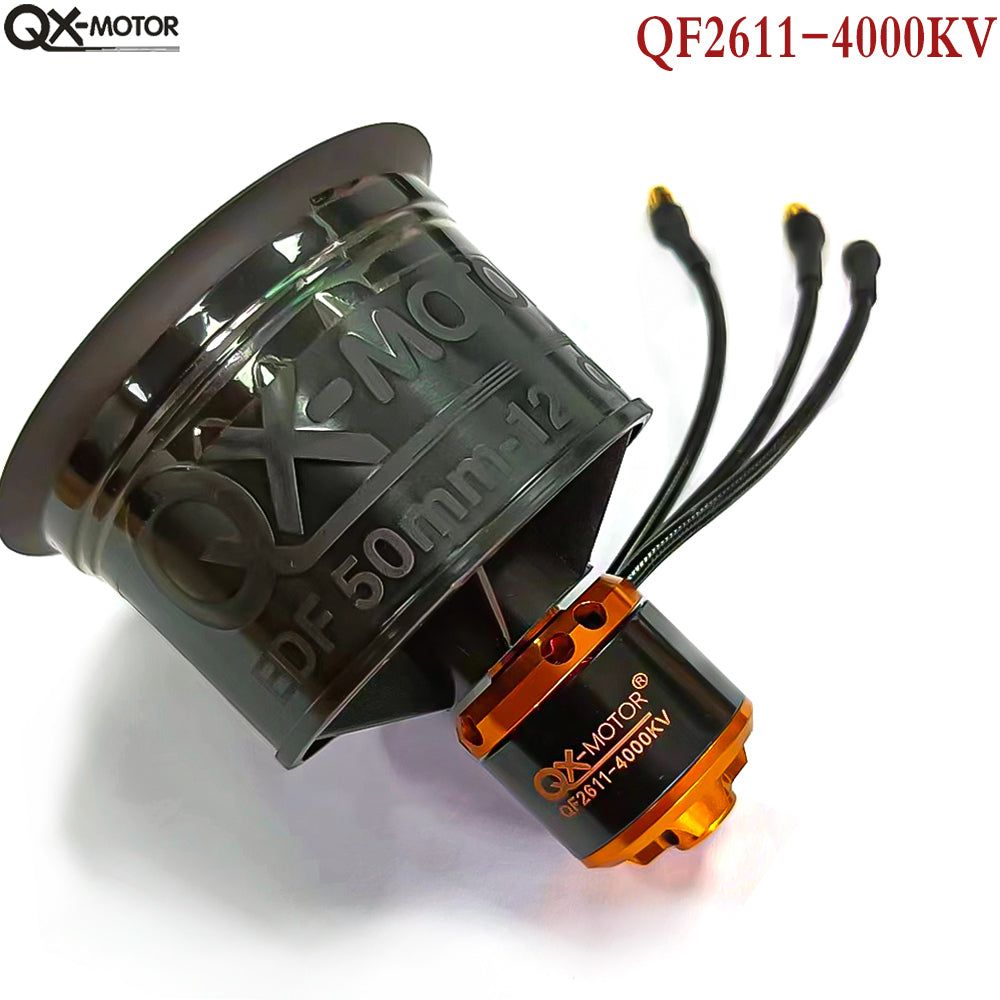

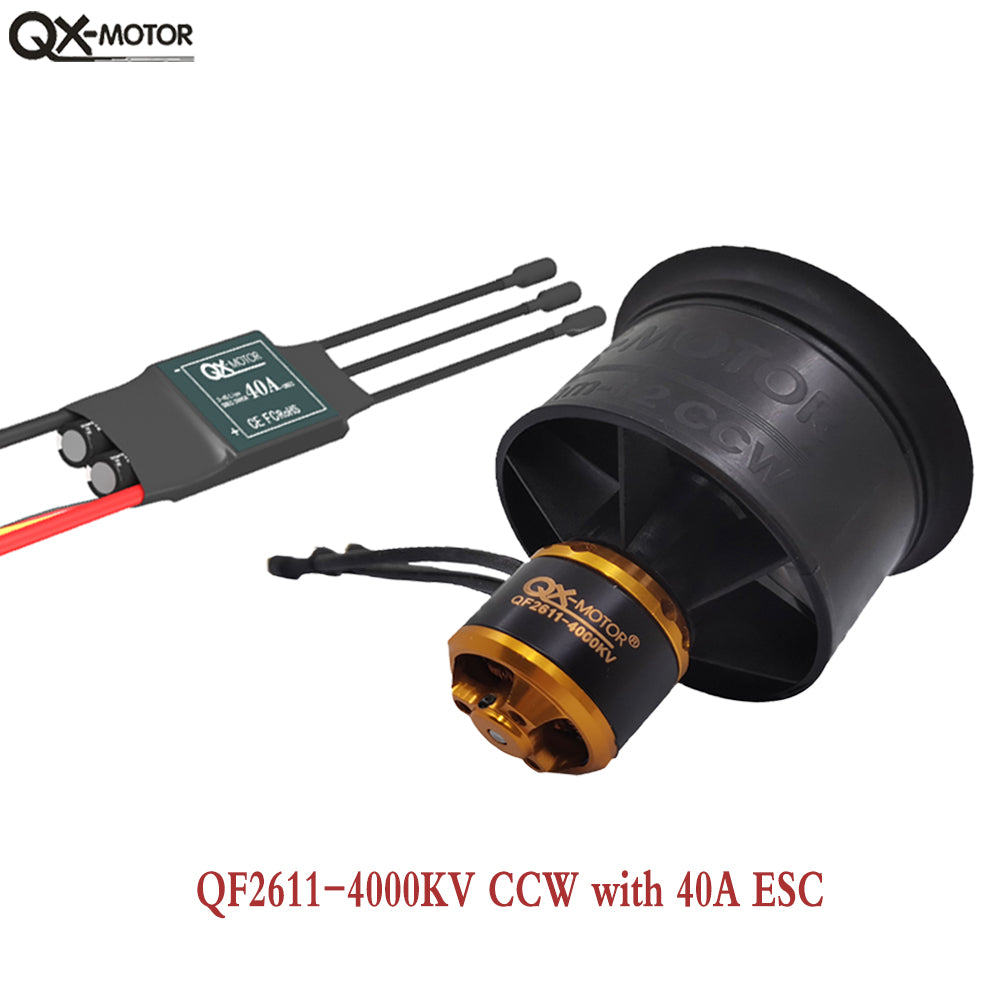

16.2 34.0 550.8 950 33.51 1.72 0.06 QF2611  4000kv 40A
