QX-Motor QX-3135MG 35KG 180° 360° High voltage Hight Speed Metal Gear Digital Servo for 1/8 1/10 Scale RC Cars
QX-Motor QX-3135MG 35KG 180° 360° High voltage Hight Speed Metal Gear Digital Servo for 1/8 1/10 Scale RC Cars
Couldn't load pickup availability
Item: QX-MOTOR QX-3135MG Digital Servo
Output gear: 25t
Torque(5V): 32.7kg-cm
Torque(8.4V): 40 kg-cm
Limit angle: 180°
Speed: 0.32 sec/60°(6V) │ 0.22 sec
/60°(8.4V)
Operating Voltage：4.8 ~ 8.4 DC
Volts
Weight: 67g
Bearing Type： Ball Bearing x 2
Motor type: hollow cup
Gear Type： Metal
Operating Temperature：-25℃~70℃
Working frequence：1500 μ sec / 50—330hz
Size：40 x 20 x 40.5 mm
| Products Name:QX-3120/25/30/35MG Digital servo | Products No. | ||||
| 1. Apply Environmental Conditon | |||||
| No. | Item | Specifcation | |||
| 1.1 | Storage Temperature Range | -30°C～80°C | |||
| 1.2 | Operating Temperature Range | -25°C～70°C | |||
| 2. Standard Test Environment | |||||
| No. | Item | Specifcation | |||
| 2.1 | Temperature Range | -25°C～70°C | |||
| 2.2 | Humidity Range | 65%±10% | |||
| 3. Mechanical Specification | |||||
| No. | Item | Specifcation | |||
| 3.1 | Size | 40.0*20.5*40.5mm | |||
| 3.2 | Weight | 56g±5% | |||
| 3.3 | Gear type | 5 Metal | |||
| 3.4 | Limit angle | 360° | |||
| 3.5 | Bearing | 2BB | |||
| 3.6 | Horn gear spline | 25T 6.0mm* 4.0mm | |||
| 3.7 | Horn type | Plastic, POM | |||
| 3.8 | Case | Engineering plastics(PBT)+Aluminum alloy |
|||

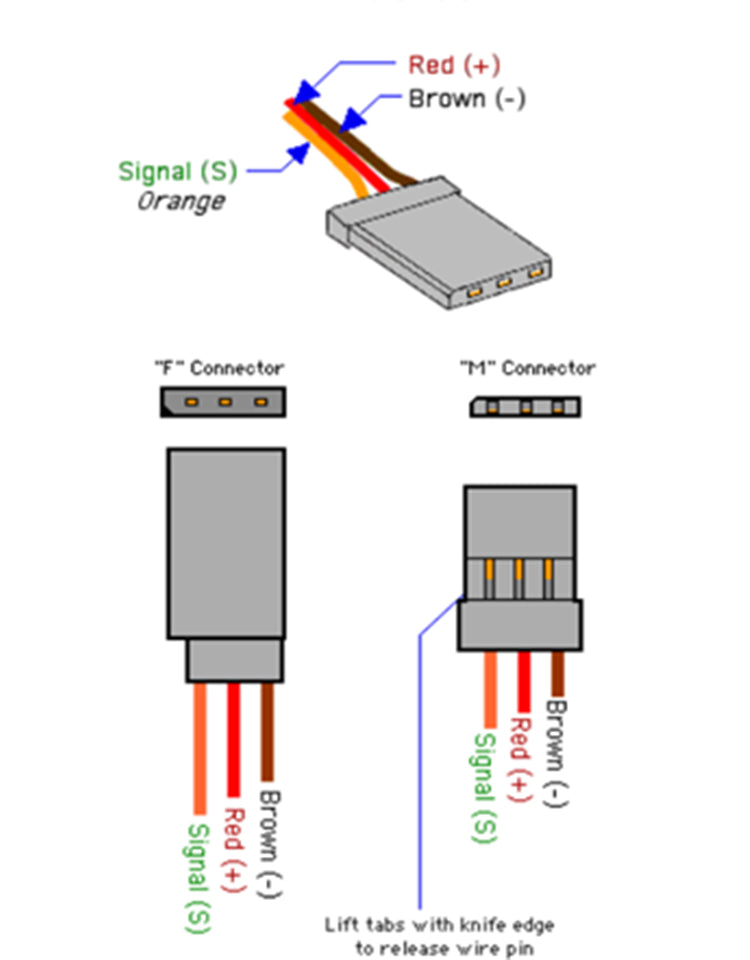

| 3.9 | Connector wire | 320mm±5mm | |||
| 3.10 | Motor | Carbon brush motor | |||
| 3.11 | Splash water resistance | yes | |||
| 4. Electrical Specification | |||||
| （model) |
(Operat voltage) |
No load speed |
Runnig current |
Peak stall torque |
Stall current |
| QX-3120MG | 4.8V-8.4V | 0.18sec/60° -0.14sec/60° | 210mA - 260mA | 20.5kg.cm - 22.8kg.cm | 2100mA±10% - 2700mA±10% |
| QX-3125MG | 4.8V-8.4V | 0.18sec/60° -0.14sec/60° | 140mA-200mA | 23.5kg.cm - 26.8kg.cm | 2600mA±10% - 3400mA±10% |
| QX-3130MG | 4.8V-8.4V | 0.24sec/60° -0.17sec/60° | 140mA-200mA | 29.5kg.cm - 32kg.cm | 2600mA±10% - 3400mA±10% |
| QX-3135MG | 4.8V-8.4V | 0.32sec/60° -0.22sec/60° | 140mA-200mA | 32.75kg.cm - 40kg.cm | 2800mA±10% - 3800mA±10% |
| 5. Control Specification | |||||
| No. | Item | Specifcation | |||
| 5.1 | Command signal | Pulse width modification | |||
| 5.2 | Amplifier type | Digital controller | |||
| 5.3 | Pulse width range | 500～2500usec | |||
| 5.4 | Neutral position | 1500usec | |||
| 5.5 | Running degree | 180°±3°(when 500～2500usec) | |||
| 5.6 | Dead band width | 5 usec | |||
| 5.7 | Rotating direction | Counterclockwise (when 1000～2000usec) | |||
