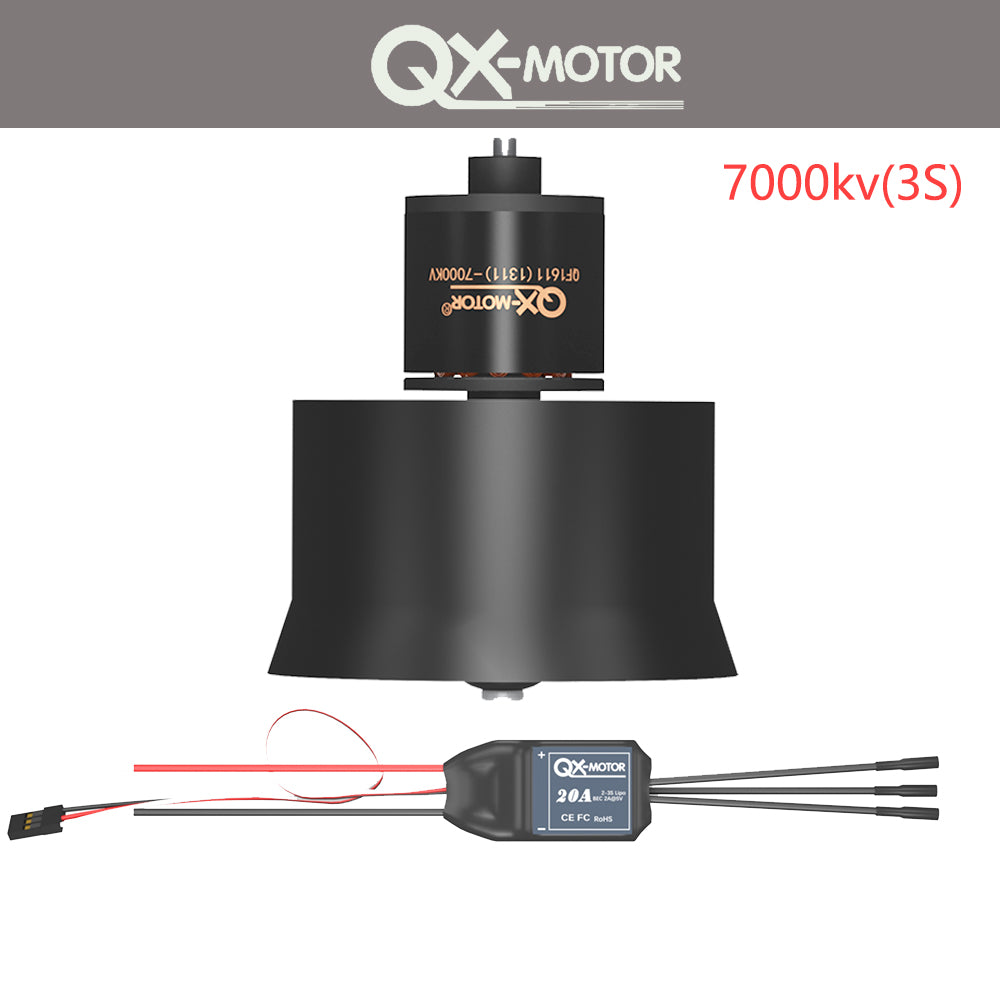

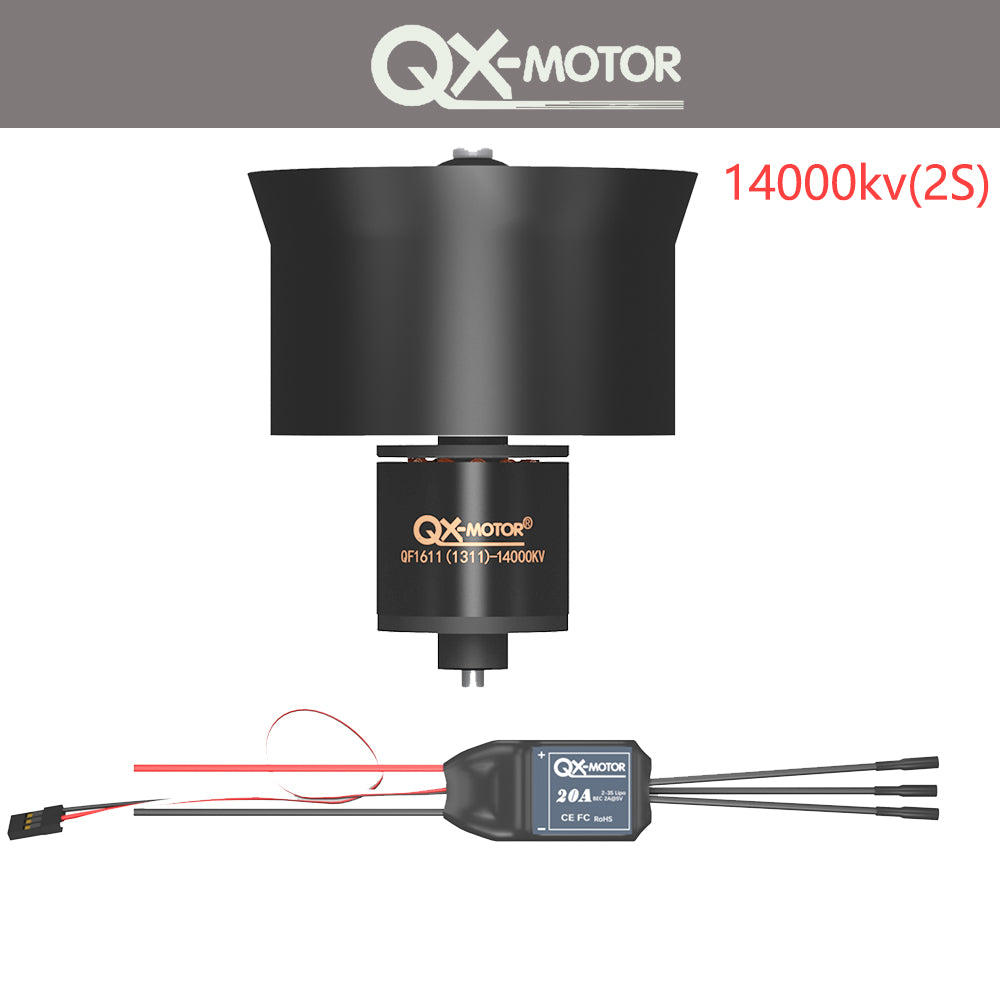

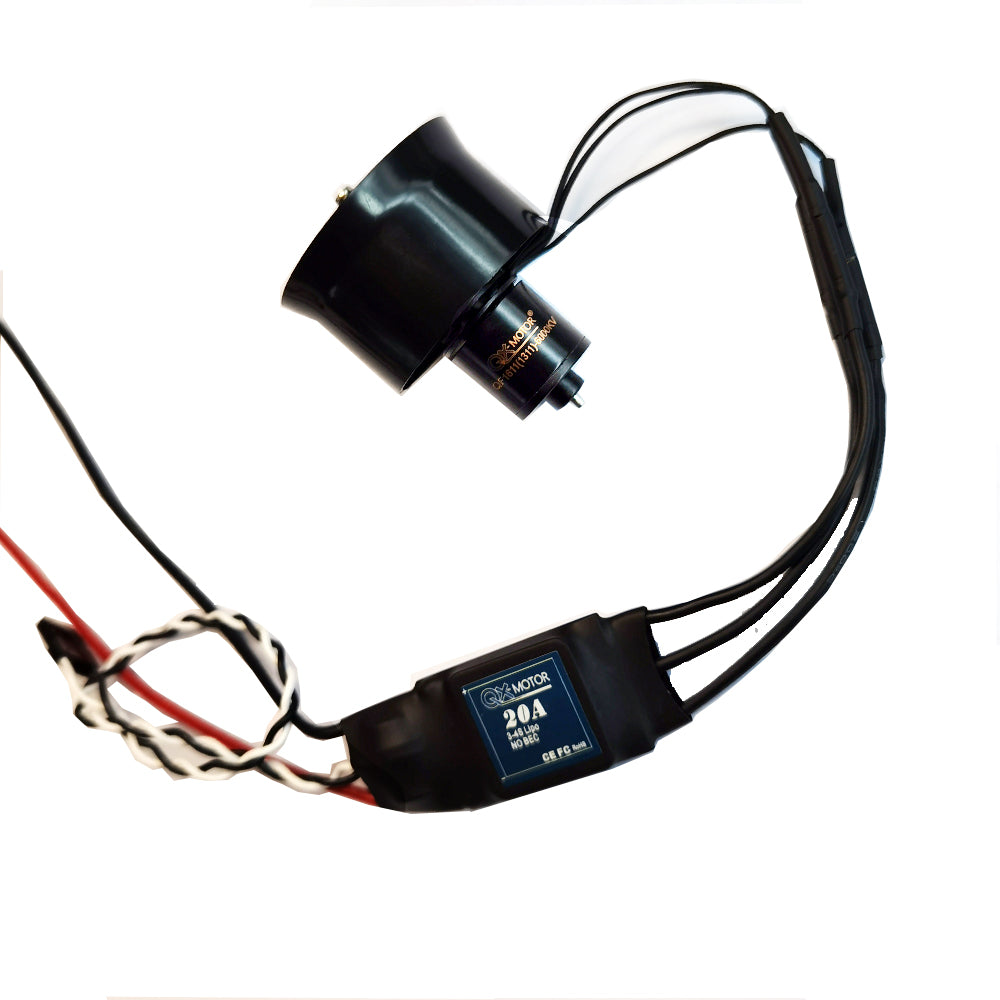

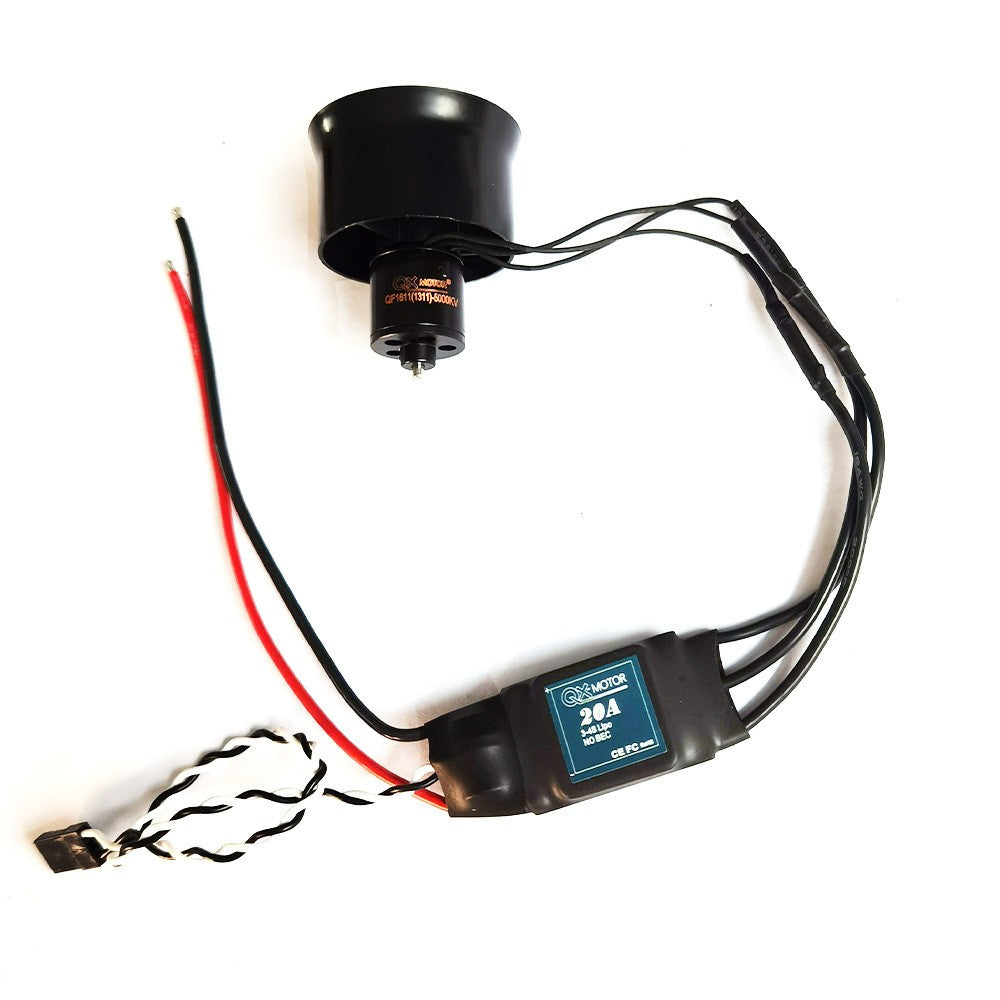

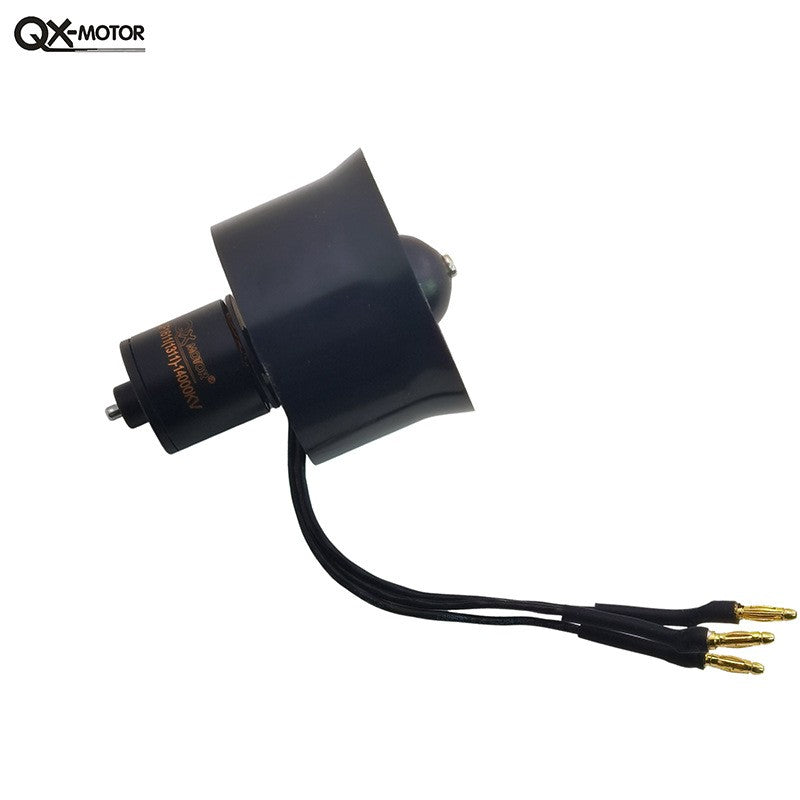

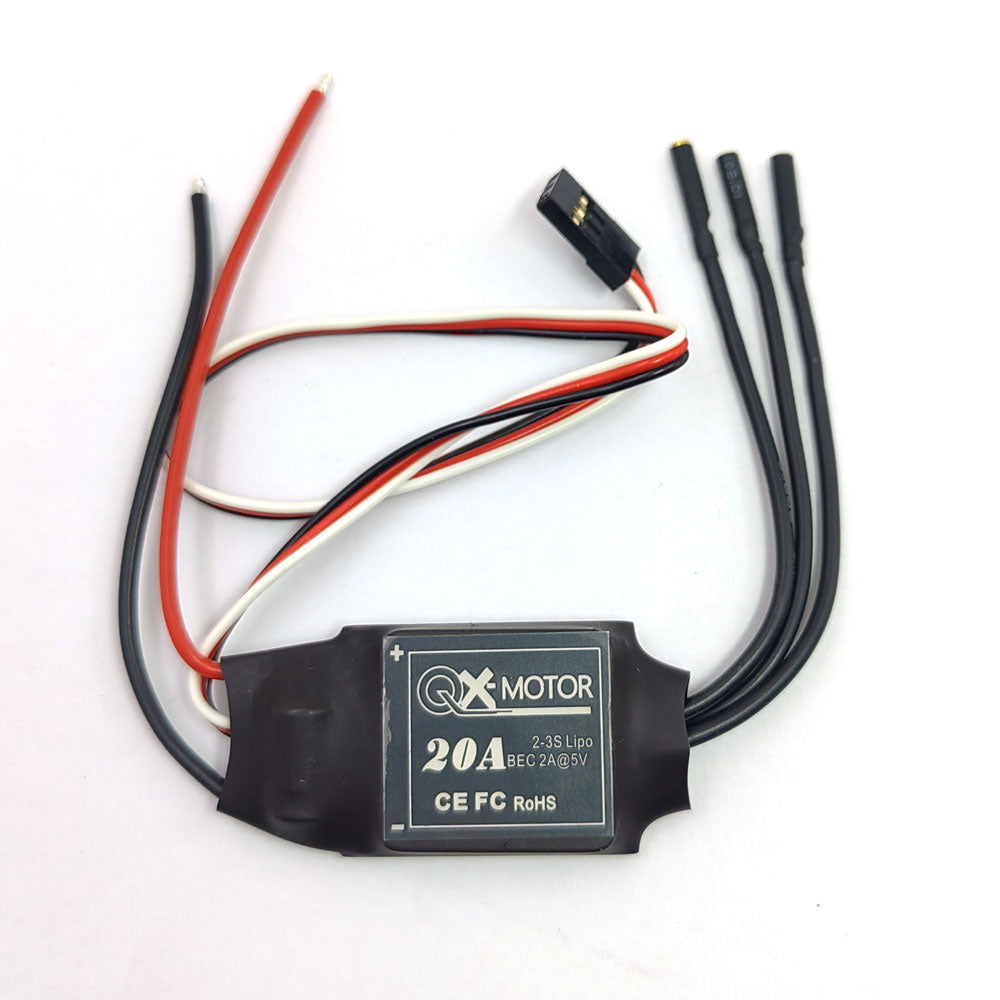

QX-Motor 30mm EDF ducted fan with 20A ESC 2S 3s 4s for Remote control toy parts
QX-Motor 30mm EDF ducted fan with 20A ESC 2S 3s 4s for Remote control toy parts
Regular price
$33.00 USD
Regular price
Sale price
$33.00 USD
Unit price
per
Couldn't load pickup availability
QX-Motor 30mm EDF 6 Blades Ducted Fan no motor for Remote control toy parts

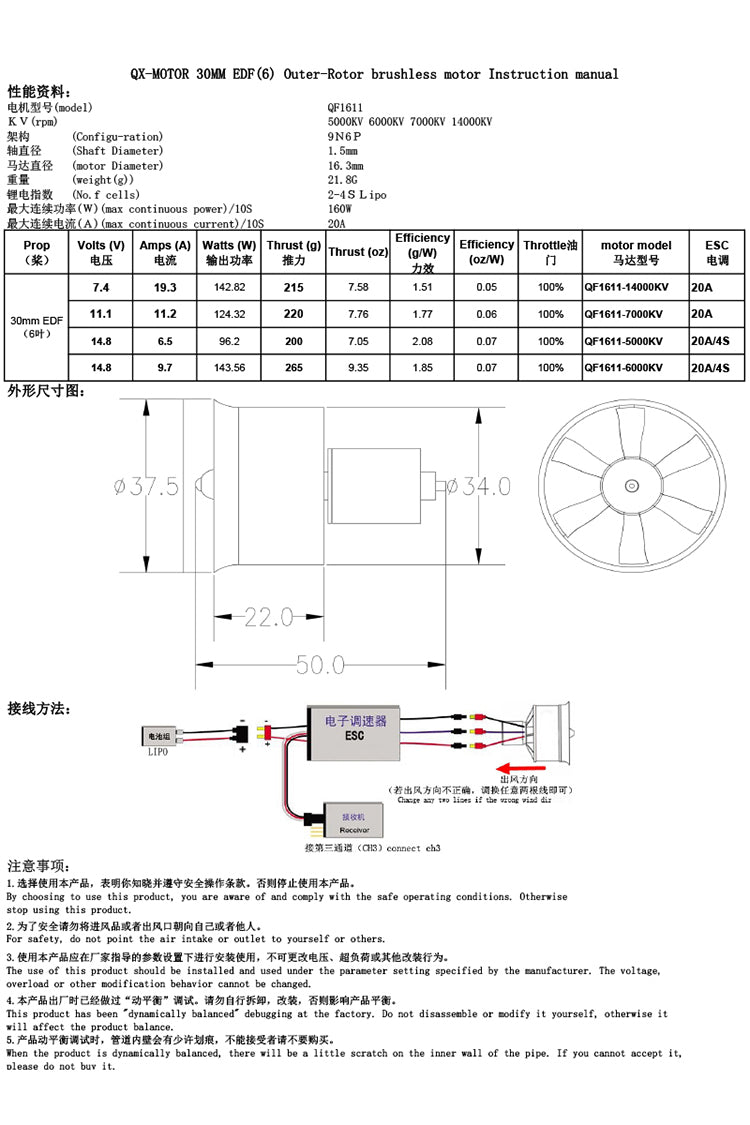

| (model) | QF1611 | |||||||||
| ＫＶ(rpm) | 5000KV 6000KV 7000KV 14000KV | |||||||||
| (Configu-ration) | 9Ｎ6Ｐ | |||||||||
| (Shaft Diameter) | 1.5mm | |||||||||
| (motor Diameter) | 16.3mm | |||||||||
| (weight(g)) | 21.8G | |||||||||
| (No.f cells) | 2-4ＳＬipo | |||||||||
| (Ｗ)(max continuous power)/10S | 160W | |||||||||
| (Ａ)(max continuous current)/10S | 20A | |||||||||
| Prop | Volts (V) |
Amps (A) |
Watts (W) | Thrust (g) | Thrust (oz) | Efficiency (g/W) |
Efficiency (oz/W) |
Throttle | motor model |
ESC |
| 30mm EDF |
7.4 | 19.3 | 142.82 | 215 | 7.58 | 1.51 | 0.05 | 100% | QF1611-14000KV | 20A |
| 11.1 | 11.2 | 124.32 | 220 | 7.76 | 1.77 | 0.06 | 100% | QF1611-7000KV | 20A | |

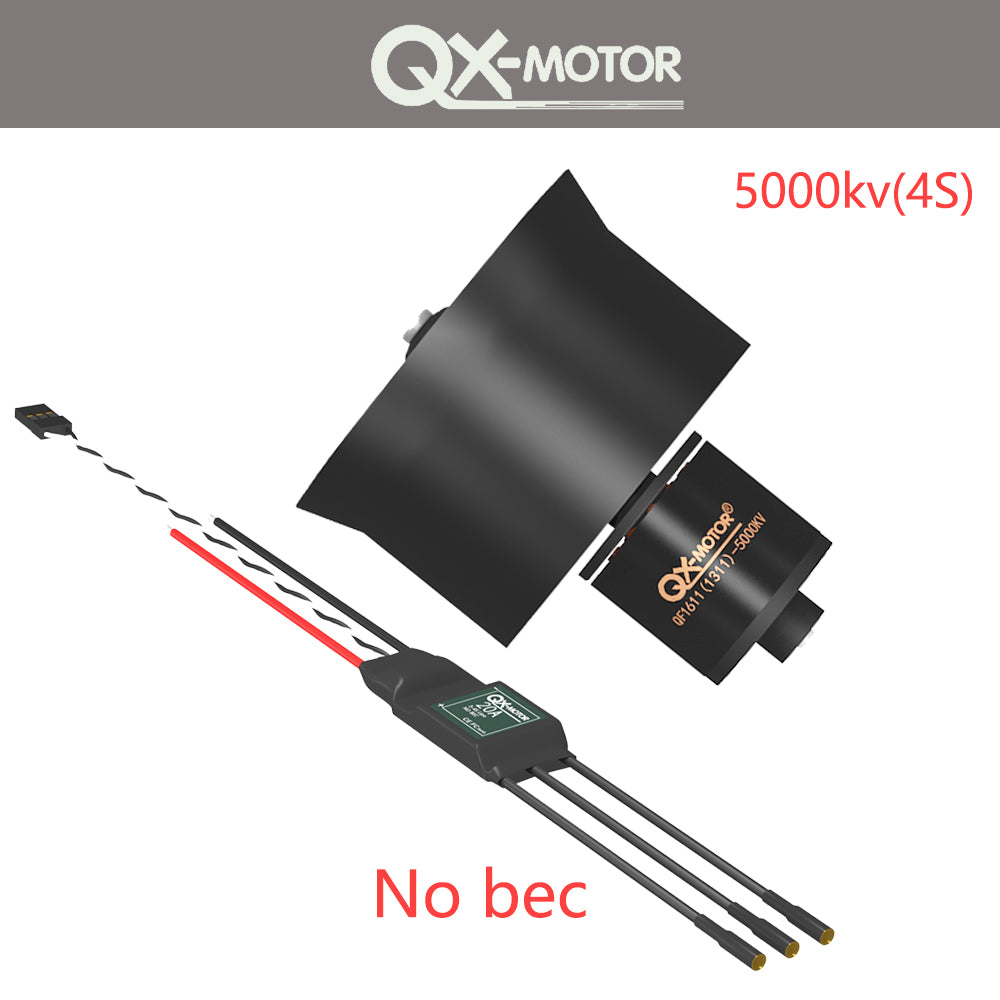

| 14.8 | 6.5 | 96.2 | 200 | 7.05 | 2.08 | 0.07 | 100% | QF1611-5000KV | 20A/4S | |

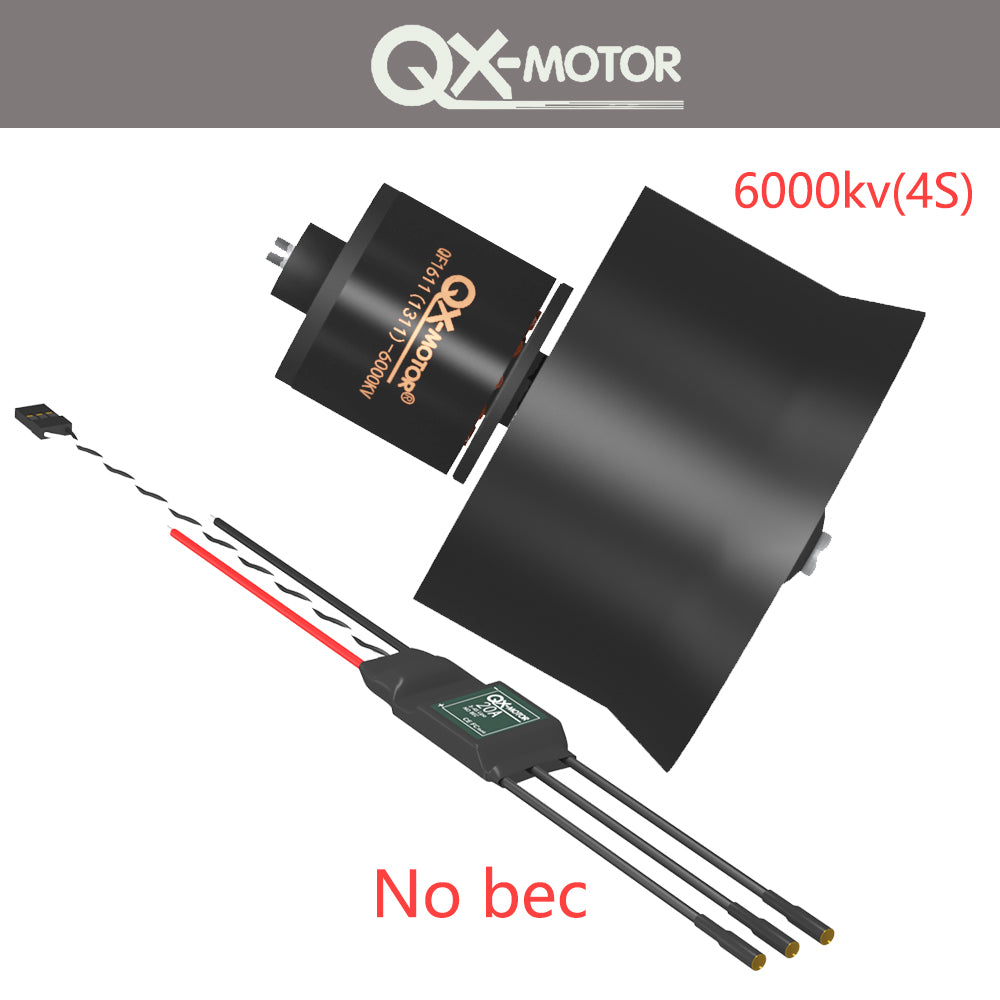

| 14.8 | 9.7 | 143.56 | 265 | 9.35 | 1.85 | 0.07 | 100% | QF1611-6000KV | 20A/4S | |
