QX-Motor

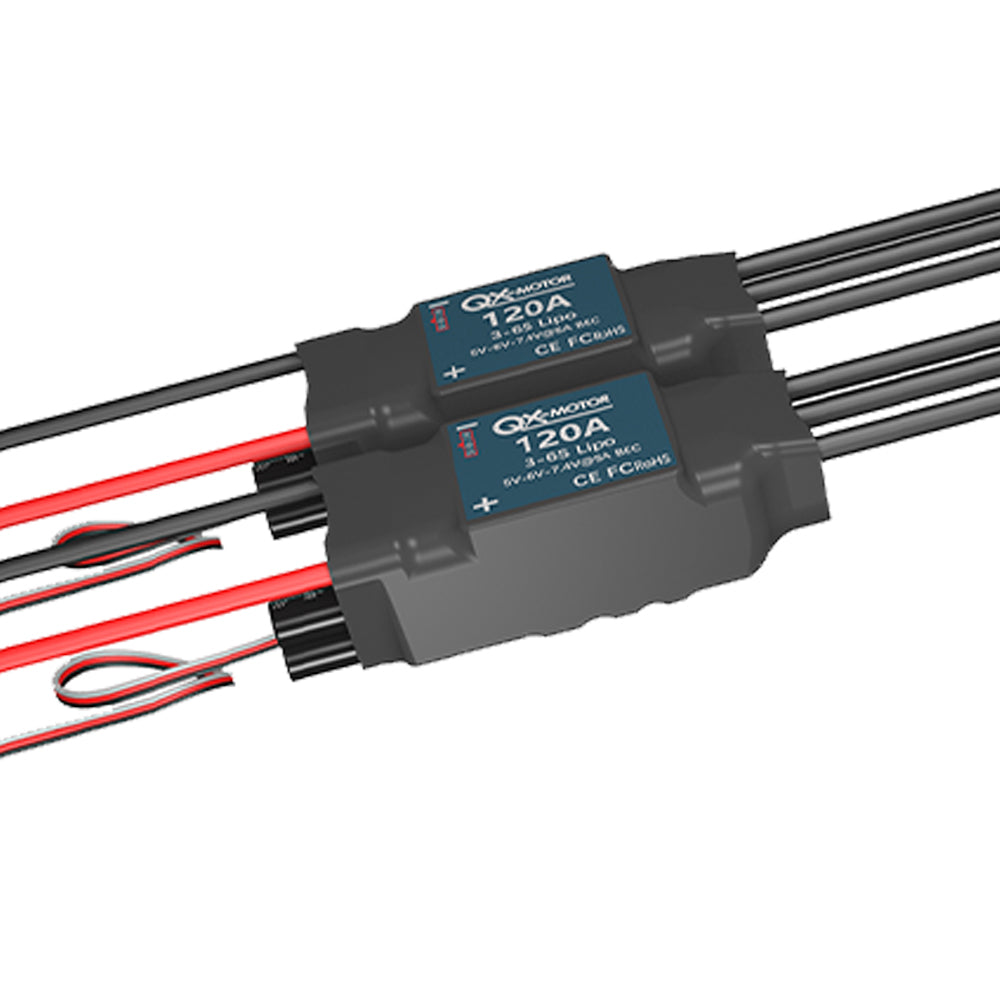

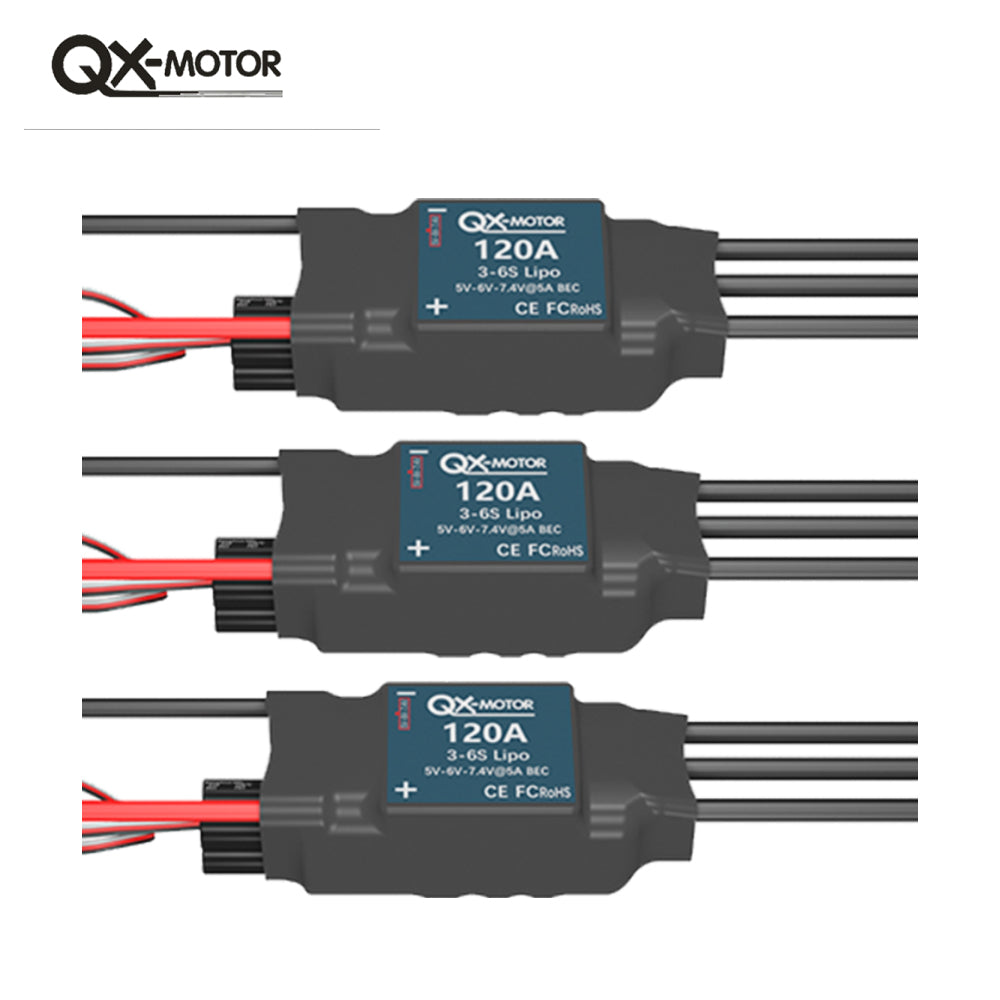

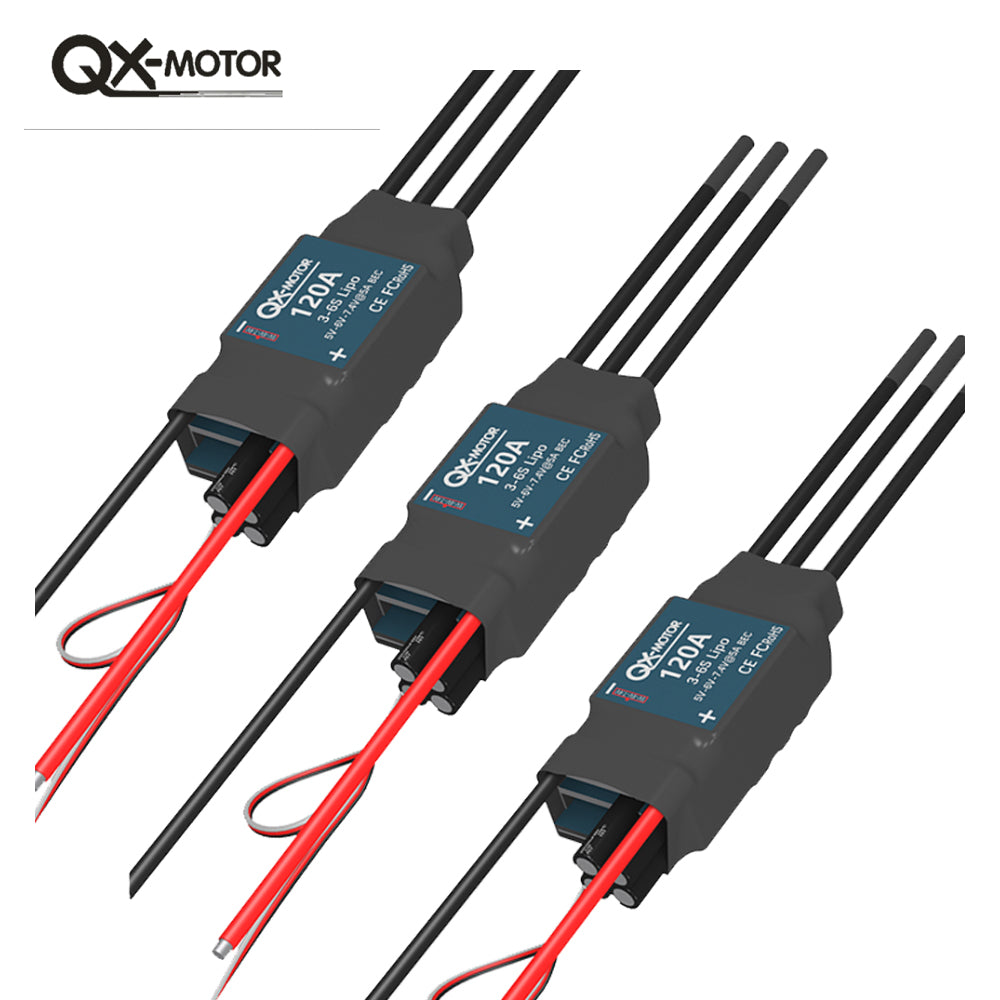

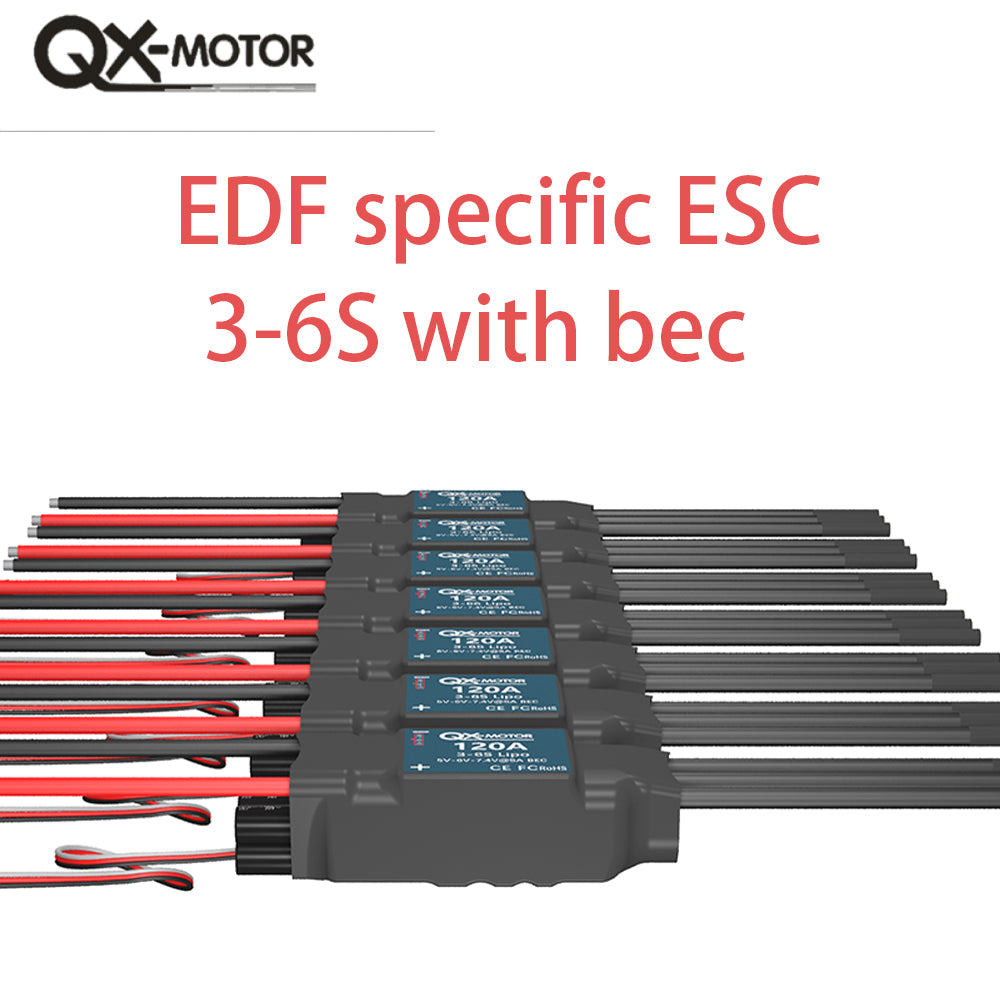

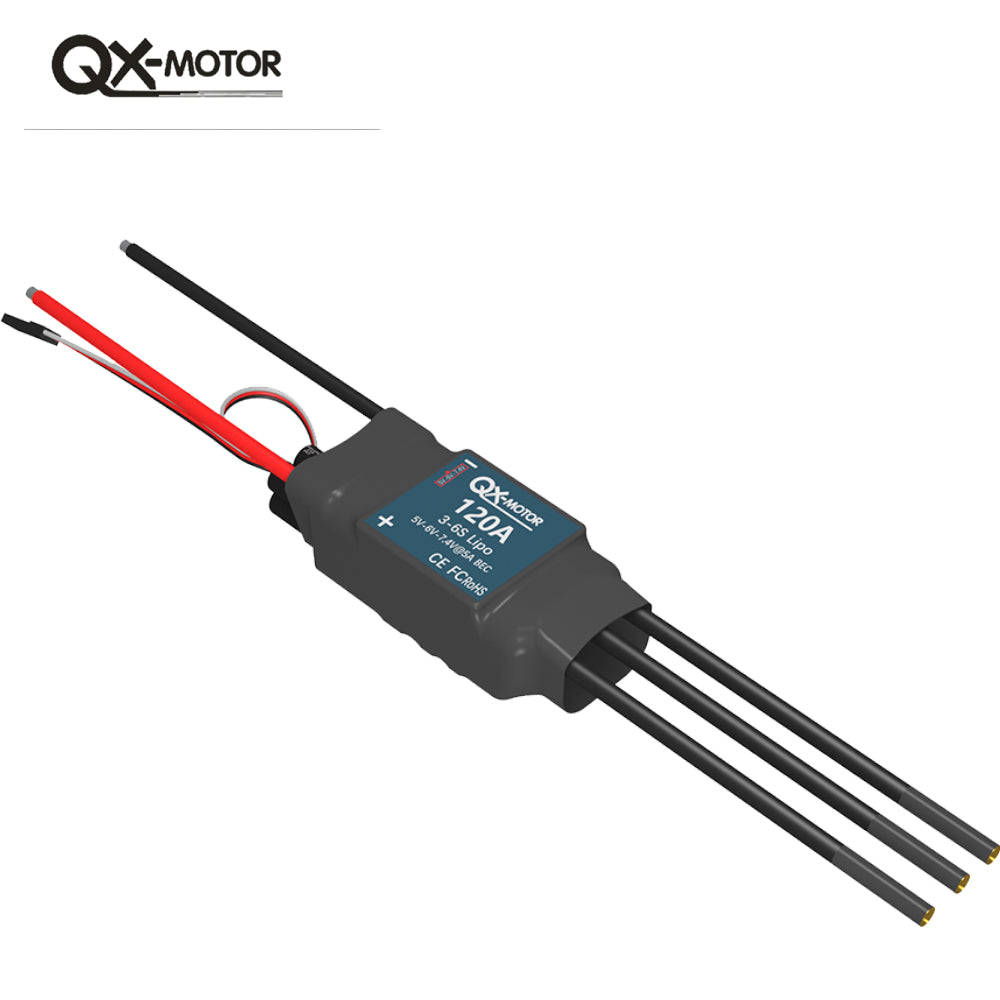

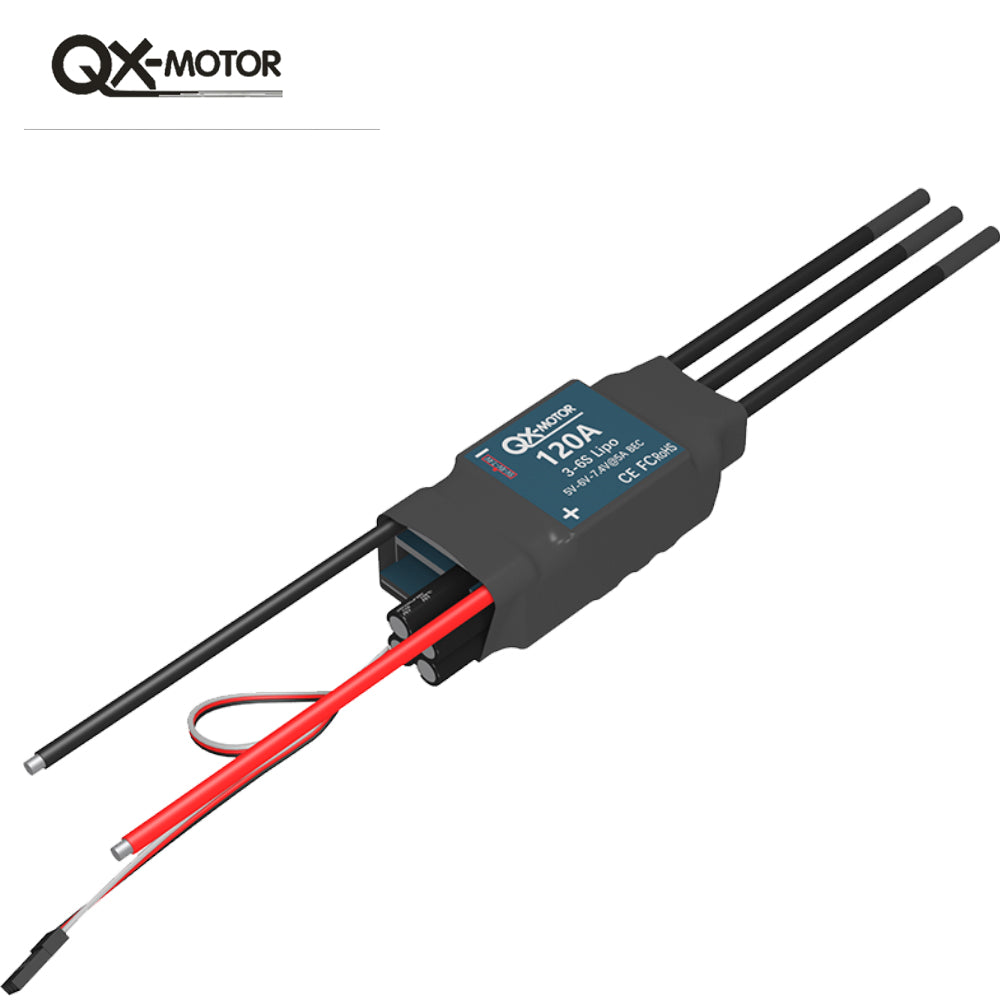

QX-MOTOR 120A ESC 3-6S with BEC, suitable for various types of remote-controlled toy drones, toy boats

QX-MOTOR 120A ESC 3-6S with BEC, suitable for various types of remote-controlled toy drones, toy boats

$56.00 USD
$75.00 USD $56.00 USD
Sale Sold out

Main features

● UsingC8051F850MCU, pipelined 8-bitC8051 core.
● FlyDragon Lite series, unique circuit design, strong anti-interference.
● Start mode can be set, throttle response is fast and speedcontrolislinear smooth.
● Low-voltage protection threshold value can be set.
● Multiple protection features:Abnormal startup protection, over-heat protection, throttle signal loss protection,low-voltage cut-offprotection etc.
● High power safety performance: wherever the throttle lever is, the motor will not start immediately.
● Judge the working condition via alarm.
● Users can set functions according their needs,  cycle programming menu which easy to operate.
● Built-in 5V/6V/7.4V, 5A adjustable BEC, it can be selected  by switch accordingrequirement(Default5V.Make sureBEC voltageiscorrect before connection.).

precautions

● It is recommended to set the throttle stroke when connecting the electronic regulator for the first time
The characteristic of Feiying Jiale ESC is that the optimal throttle stroke is set according to different transmitters. Only then can the ESC obtain the smoothest throttle linearity through the entire throttle stroke of the transmitter. The purpose is to allow the ESC to obtain and remember the accelerator output signal of the transmitter. This operation only needs to be performed once, and this operation step needs to be repeated when replacing the transmitter.
● During use, before connecting the battery pack, be sure to carefully check whether the polarity of all plug connections is correct and whether the installation is firm to prevent damage to the electronic governor due to wrong connection polarity or short circuit.
● If the motor of your model aircraft suddenly stops during flight, you should immediately pull the throttle lever to the lowest position and then push the throttle lever up so that the motor will restart. At this time, control the throttle to a smaller position and land the model aircraft immediately.
● Do not remove any electronic components on the electronic governor without permission, which may cause permanent damage or loss of information.
● Verify that the receiver device is set correctly. When testing the ESC and motor for the first time, do not install a propeller or transmission pinion on the motor if the settings on the receiver device are not confirmed to be correct.
● Do not use cable insulation materials that do not meet the standards. Do not use cable connectors that are not up to standard.
● Do not use cracked or punctured batteries. Do not use batteries that can overheat easily. Do not use shorted batteries.
● The number of batteries or servo systems should not exceed the regulations of the electronic governor. The battery voltage value should not exceed the operating voltage range of the electronic governor.
● Pay attention to the battery polarity. Wrong battery polarity will damage the electronic governor.
● Please ensure that the electronic governor will not be used on manned aircraft and other manned machines.
● Do not place ESC in a humid or bright place.
● Do not draw off the battery while the motor is rotating, which may cause a large peak current and cause the ESC to burn out.
● Do not wrap anything outside the ESC, try to install the ESC in a position with good ventilation and heat dissipation.
