QX-Motor

Flycolor Remote Control Ship Model Brushless ESC Waterproof 50A 70A 90A 120A 2-6S Lipo BEC 5.5V/5A With Progaming Card

Flycolor Remote Control Ship Model Brushless ESC Waterproof 50A 70A 90A 120A 2-6S Lipo BEC 5.5V/5A With Progaming Card

Regular price $39.90 USD
Regular price Sale price $39.90 USD
Sale Sold out
Waterproof ESC With Progaming Card

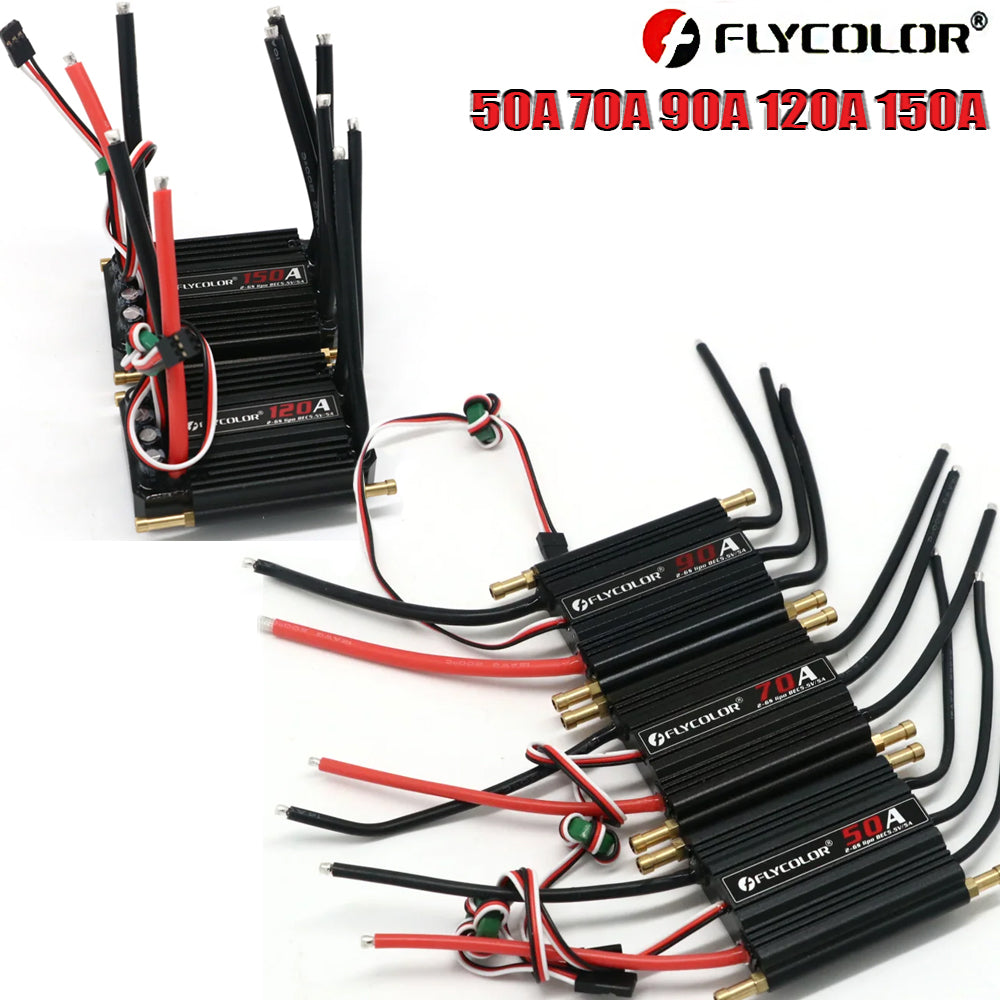

Flycolor 50A 70A 90A 120A 150A Ship model ESC Brushless Waterproof Bidirectional Regulation With Progaming Card Support 2-6S Lipo BEC 5.5V/5A for RC Boat

Features:

1. Quick & smooth:
2. Water proof design
3. Built-in SBEC, multiple protections

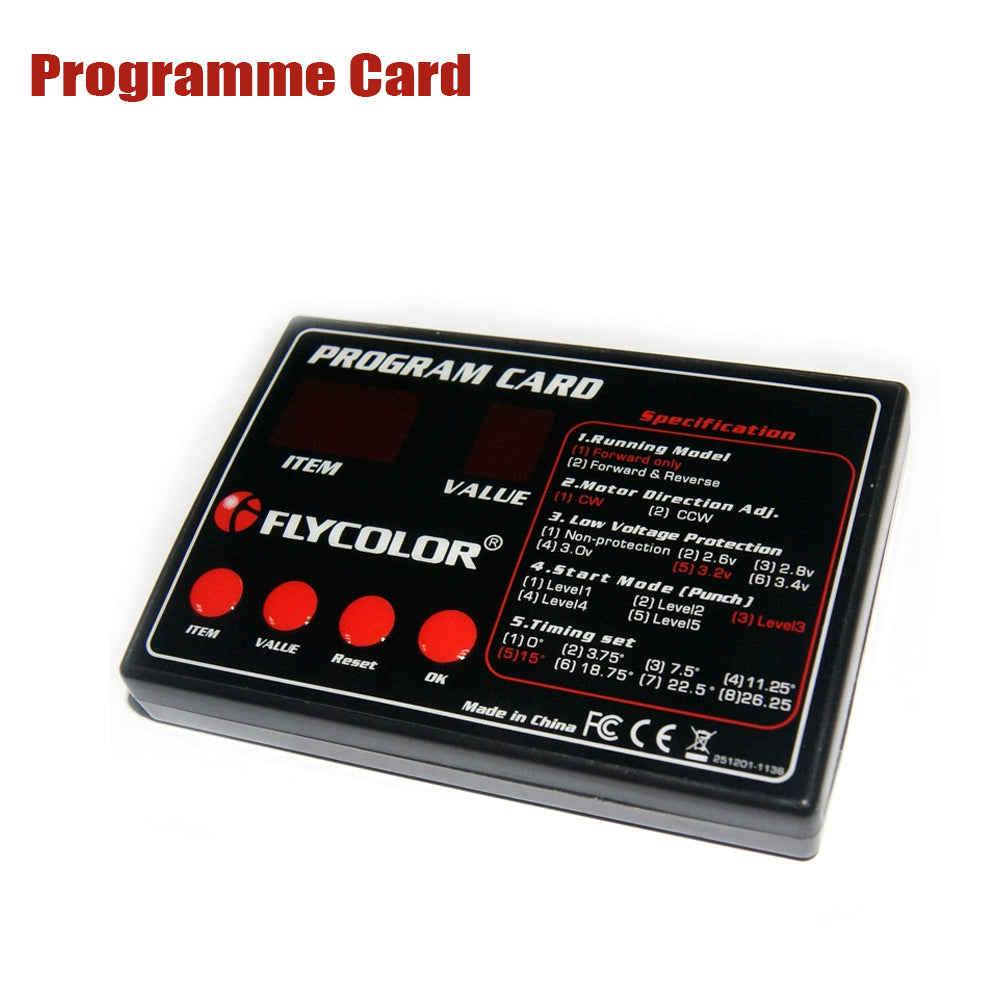

4. Easy operation, parameters can be setup by transmitter or program card
5. Use powerful & high performance MCU. Users can set functions as their demand, fully embody Intelligent characteristics. Unique circuit design, strong anti-interference.

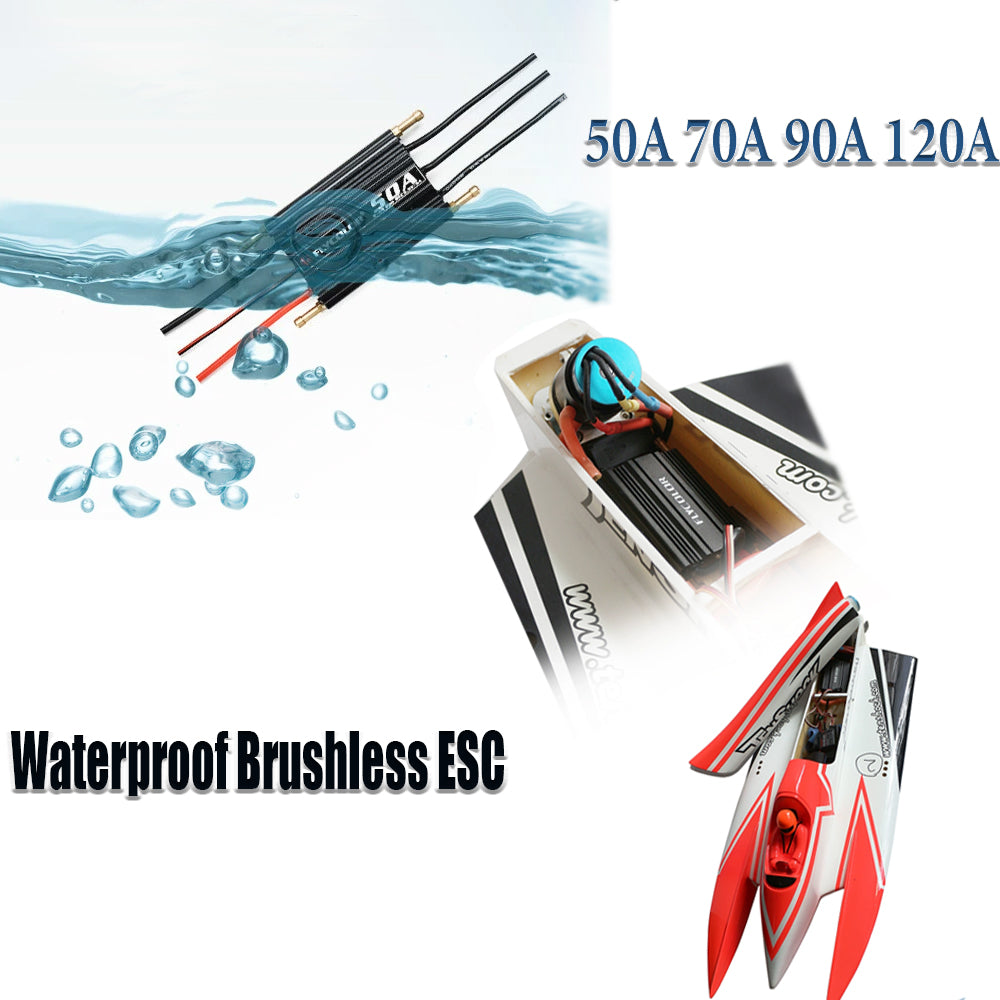

Waterproof design (Note: if there is water in the ESC, Please dry the water at the connectors).
Start mode can be set. throttle response fast, and it has a very smooth speed control linearity. Compatible with scale boat & racing boat .
Low-voltage protection threshold value can be set.
Built-in switch BEC, large power load with servo, lower power consumption.
Multiple protection functions: input voltage abnormal protection/ low-voltage cutoff protection, over-heat protection and throttle signal loss protection, make the ESC more reliable.
High power safety performance: wherever the throttle lever is, the motor will not start immediately.
Over thermal protection: when ESC temperature is over 100 deg, output power will automatically reduce. When it's lower than 80 deg output power will return to normal.
Cycle menu setting, simple operation. Support setting with program box and transmitter.

Specifications:

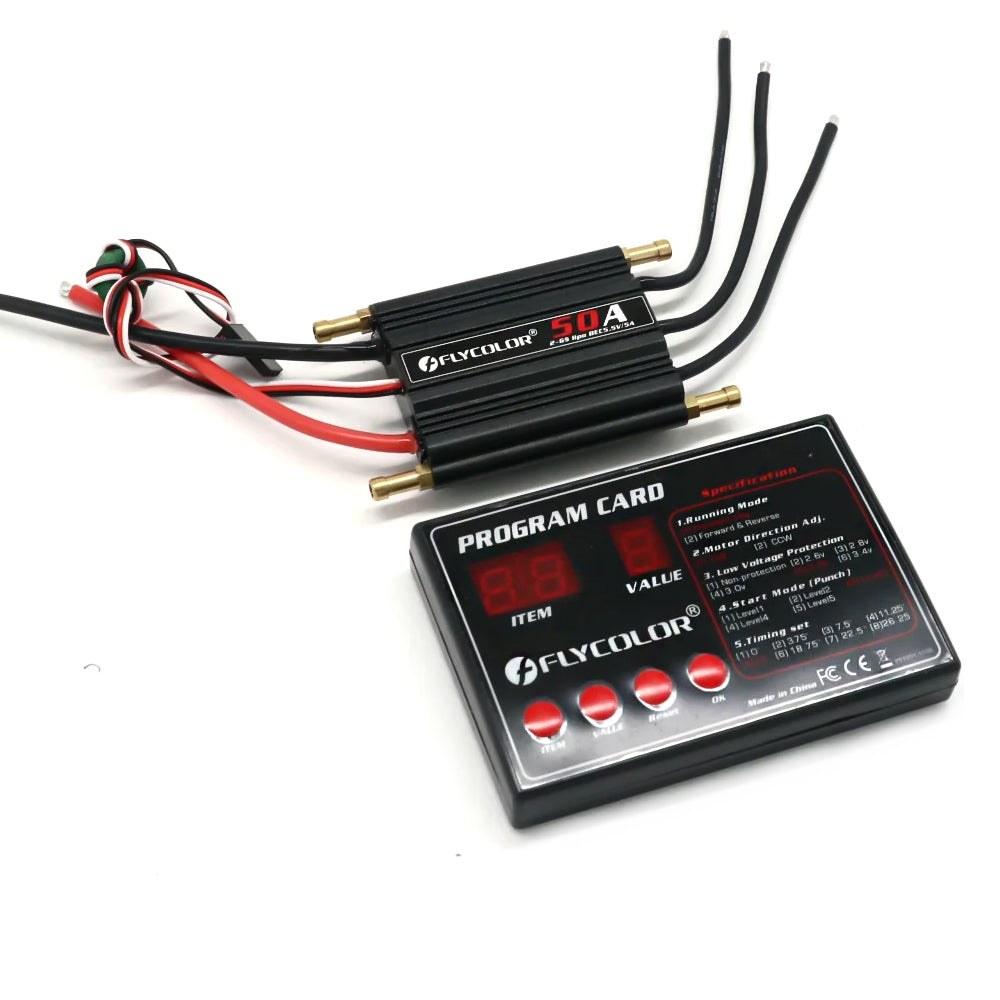

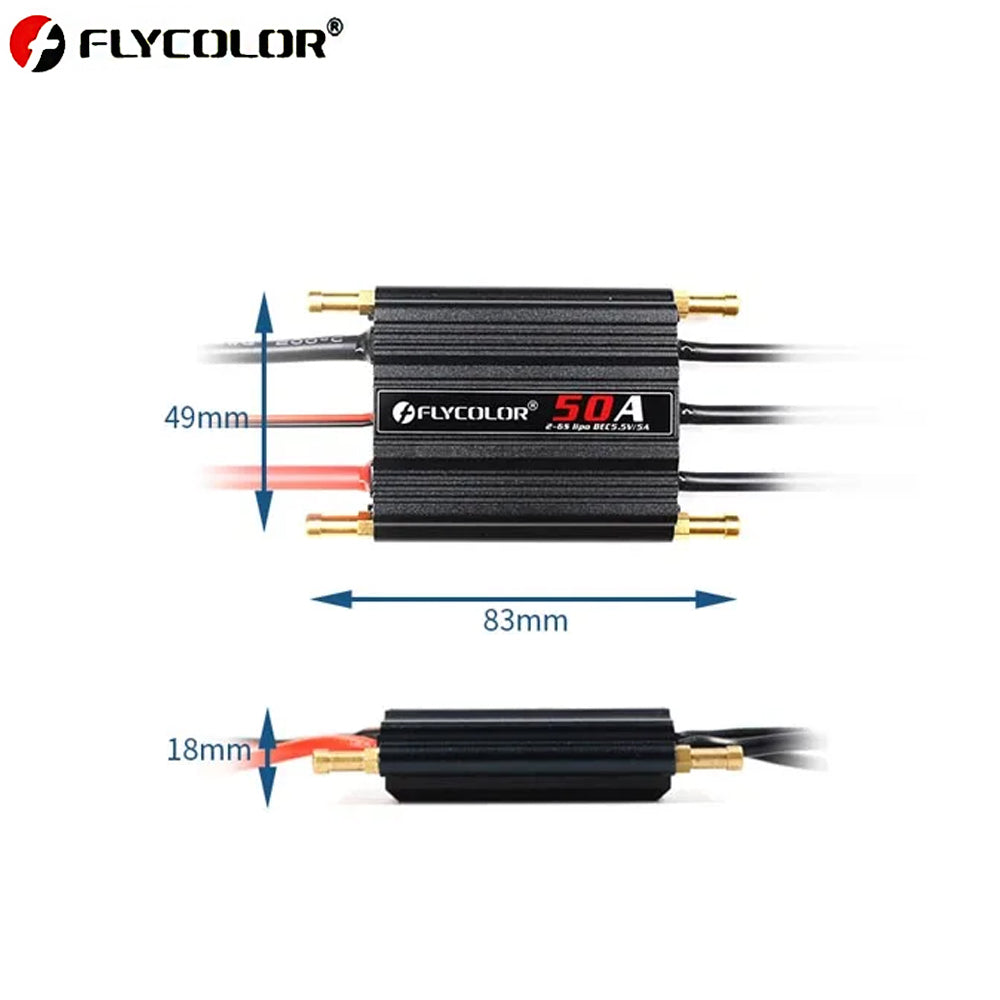

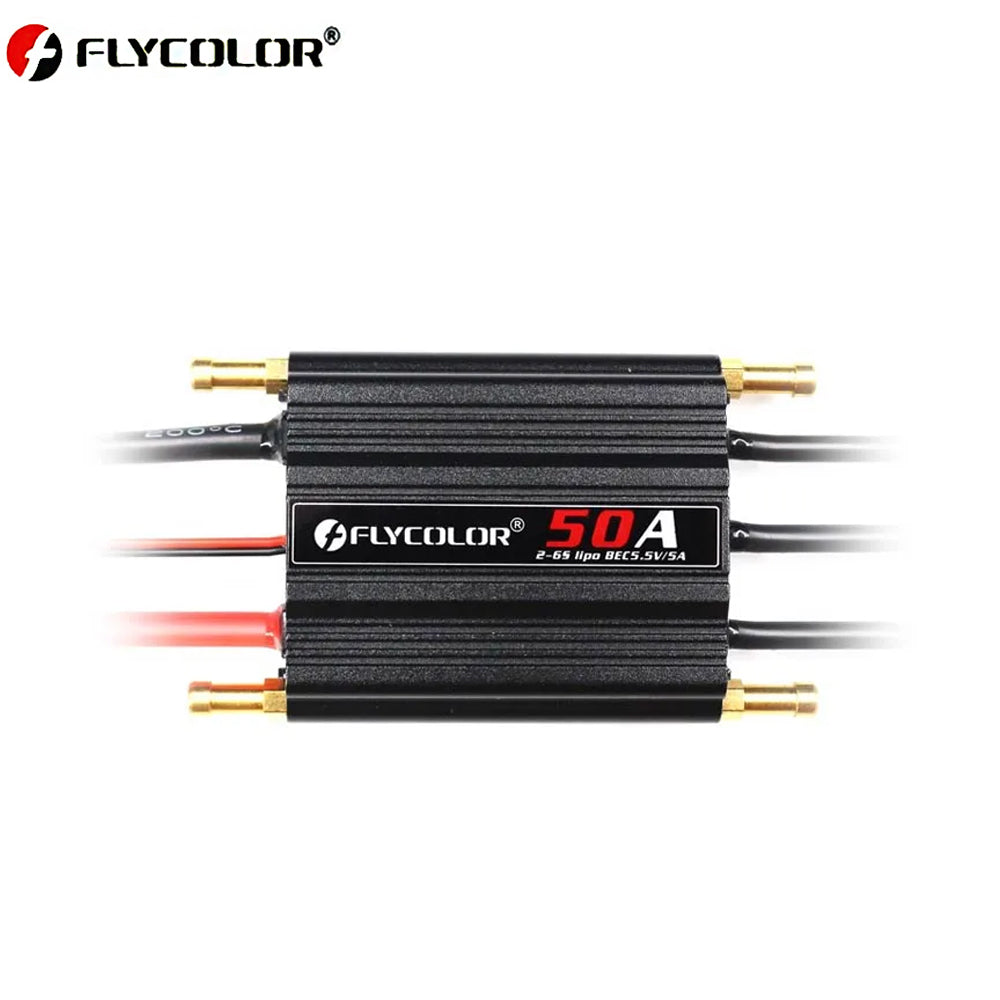

50A:
Output: Continuous 50A, Burst 300A up to 10 seconds.
Input Voltage:  2-6S
BEC: 5.5V/5A
Size: 57*49*18 mm.
Weight: 90g.
Application: max 55cm boats

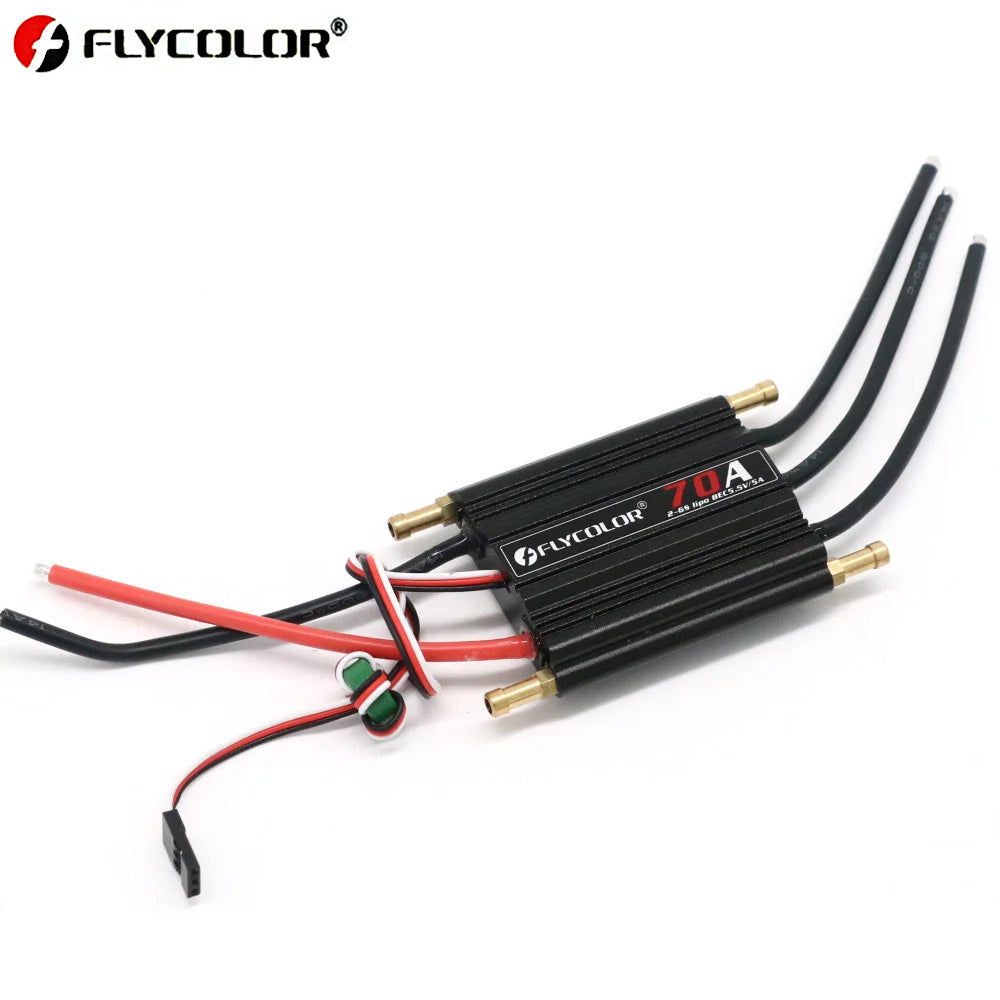

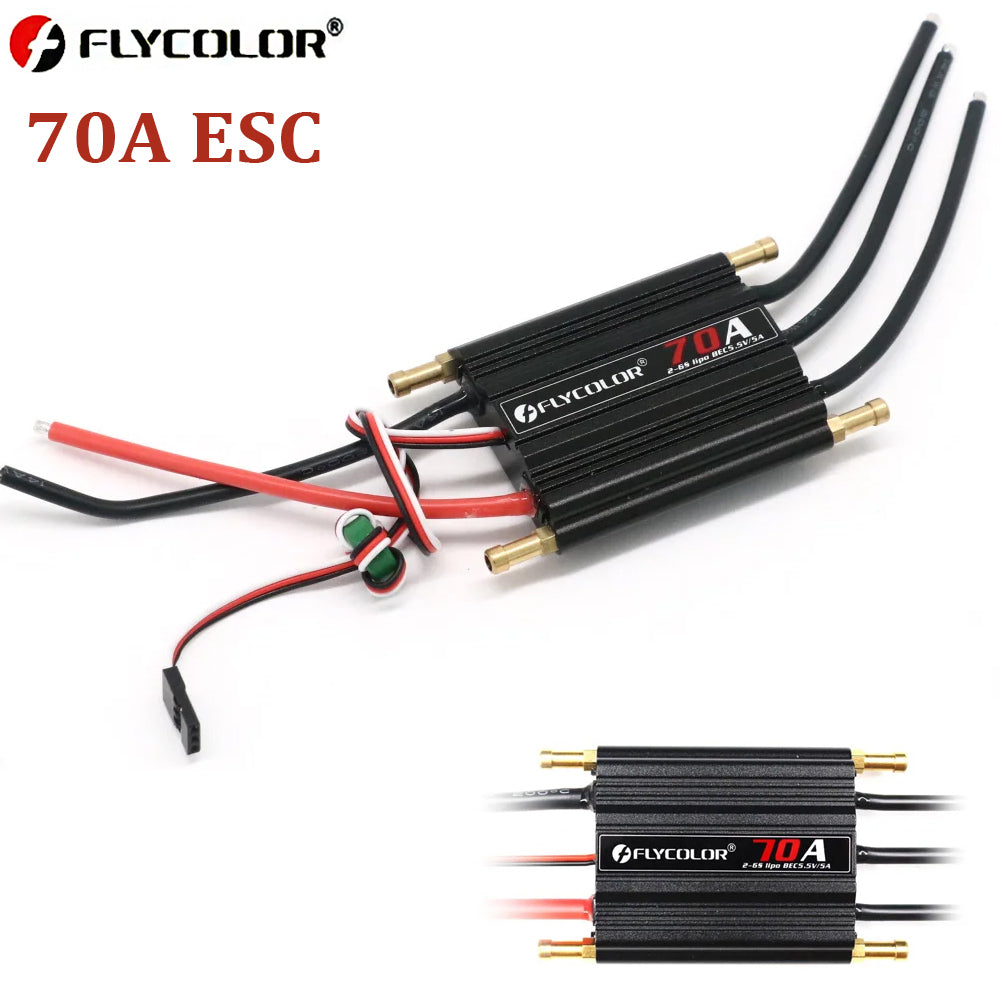

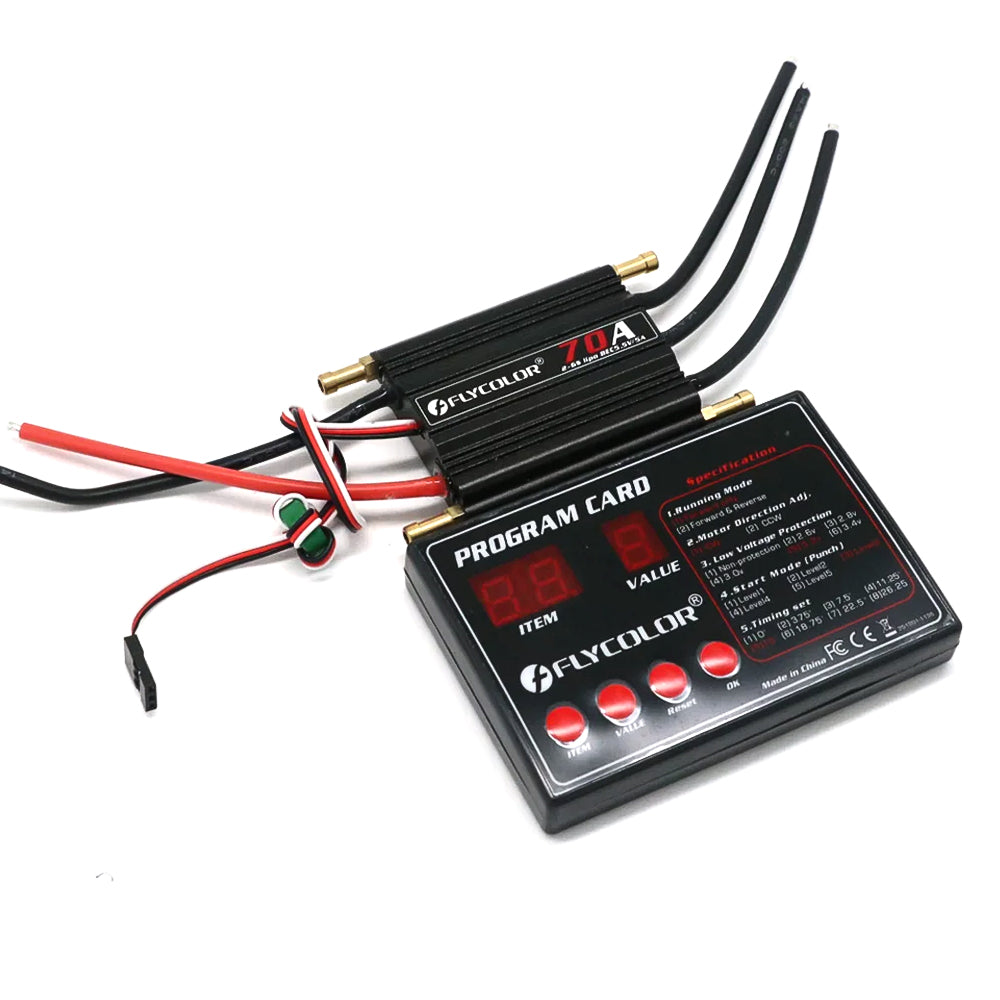

70A:
Output: Continuous 70A, Burst 420A up to 10 seconds.
Input Voltage:  2-6S
BEC: 5.5V/5A
Size: 57*49*18 mm
Weight: 101g.
Application: max 70cm boats

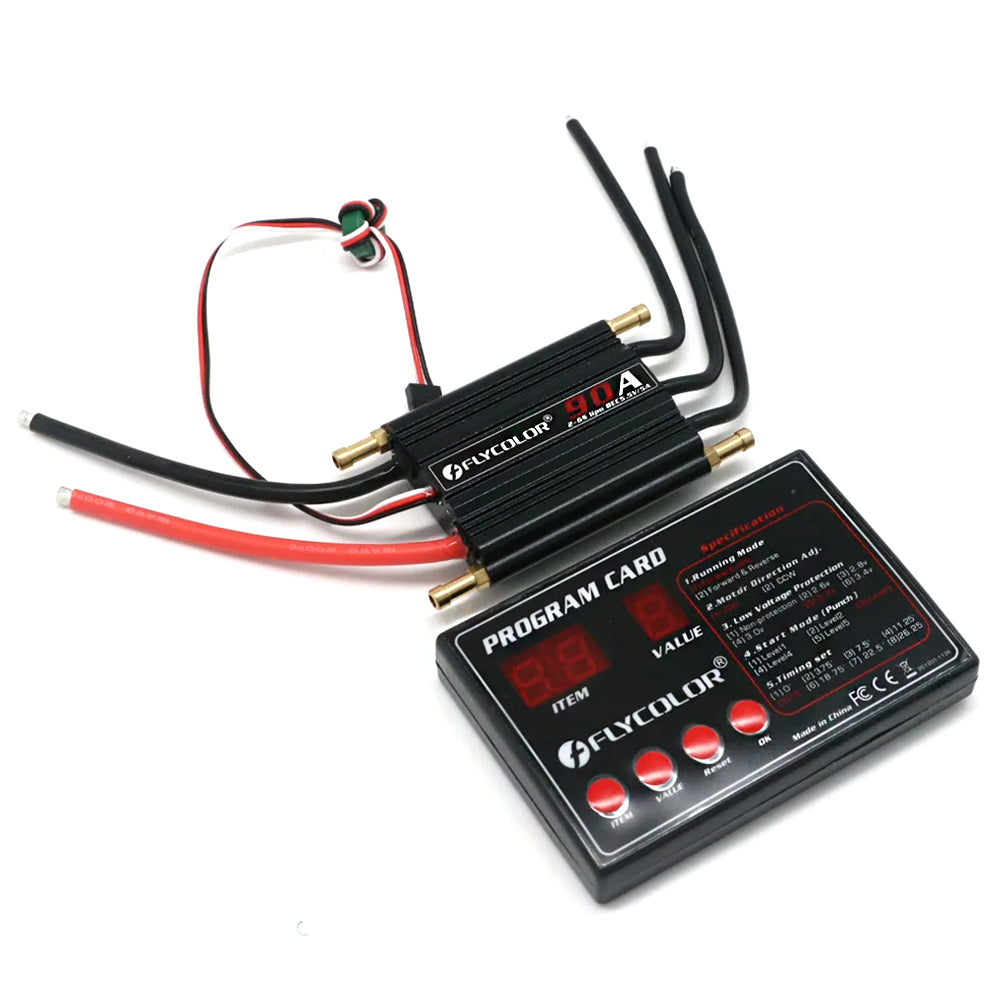

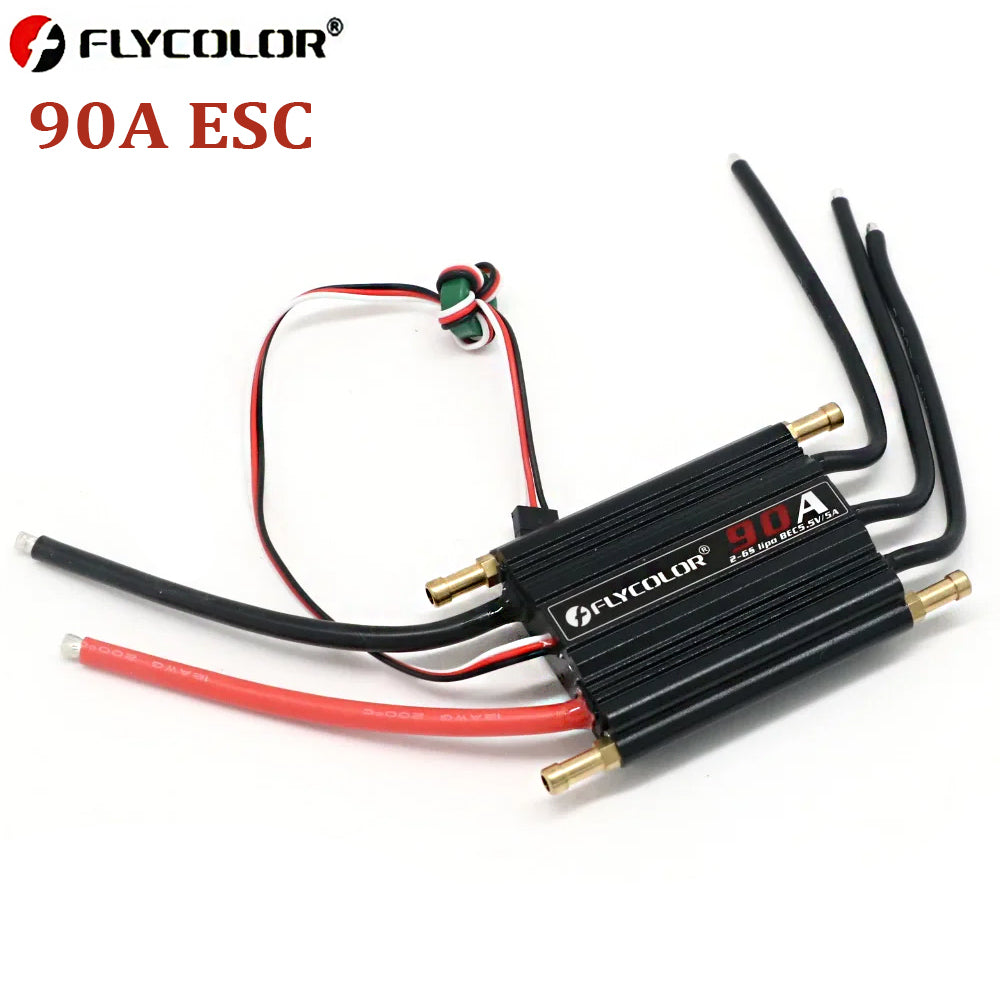

90A:
Output: Continuous 90A, Burst 540A up to 10 seconds.
Input Voltage:  2-6S
BEC: 5.5V/5A
Size: 57*49*18 mm.
Weight: 102g
Application: max 100cm boats

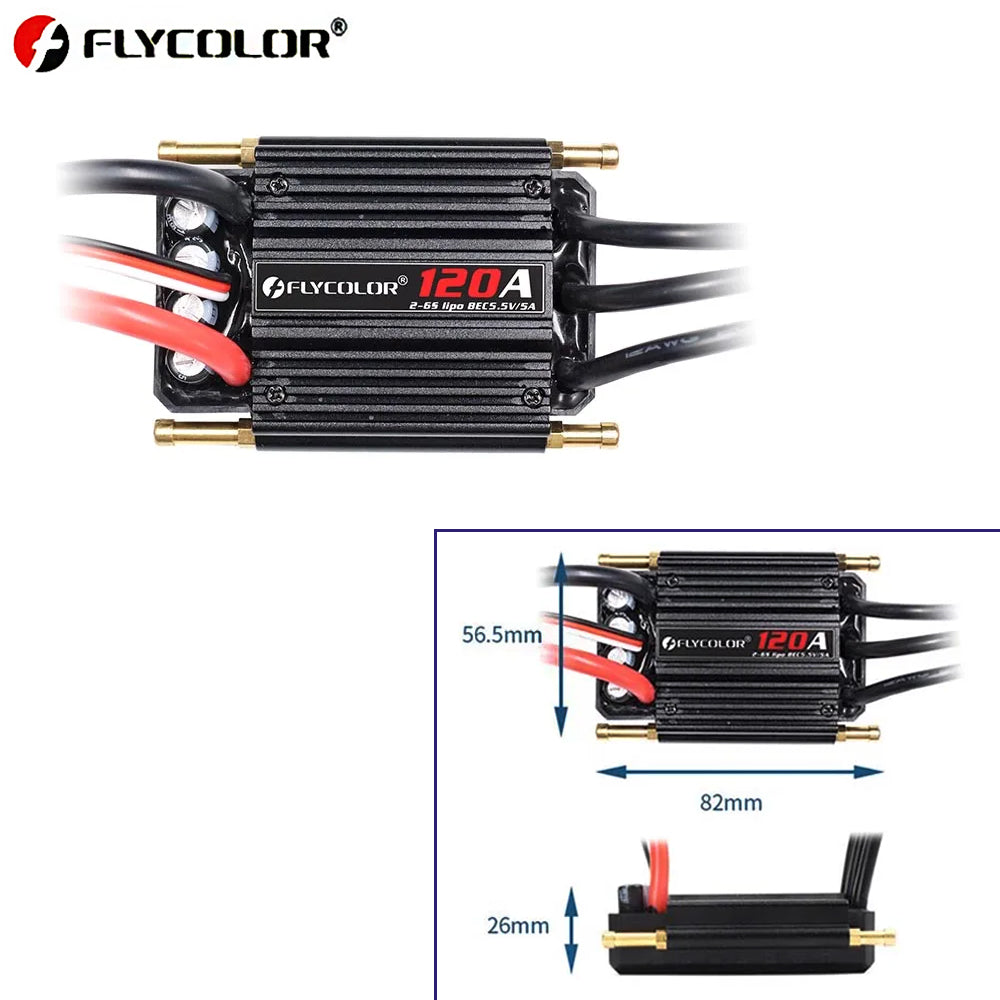

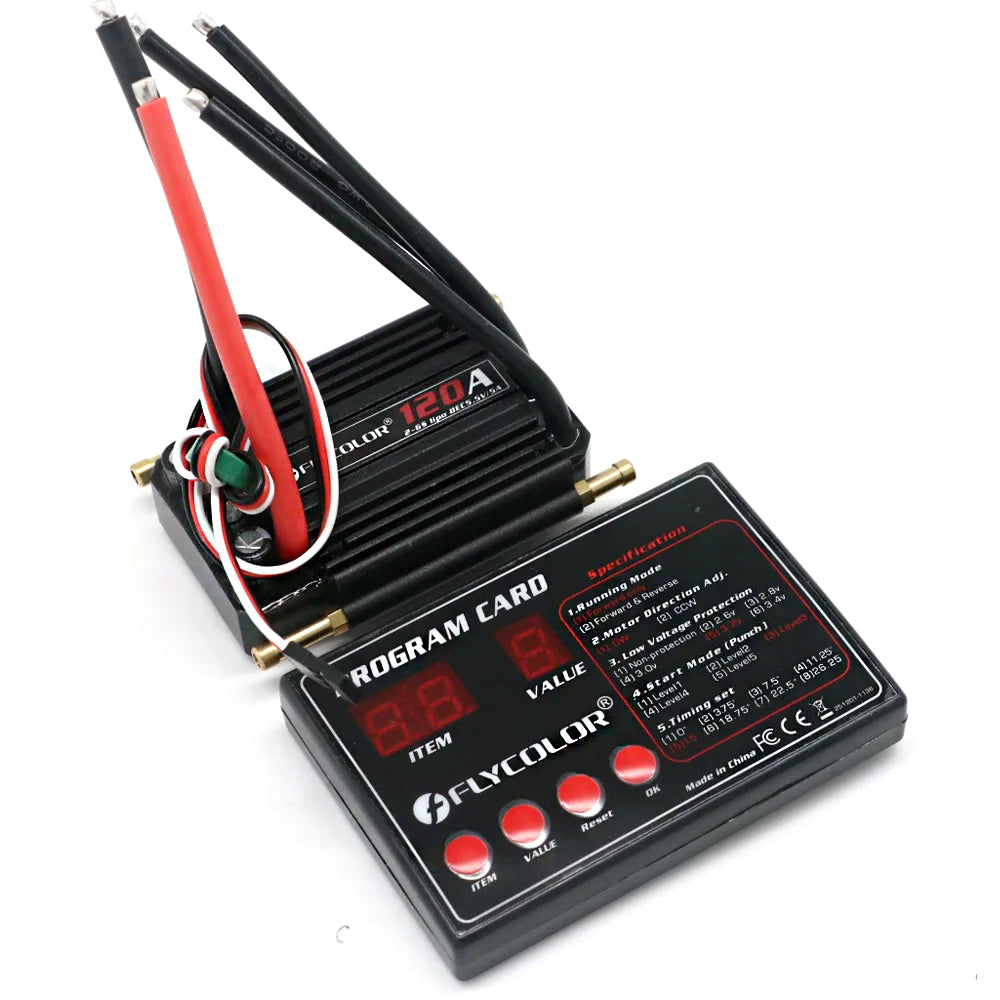

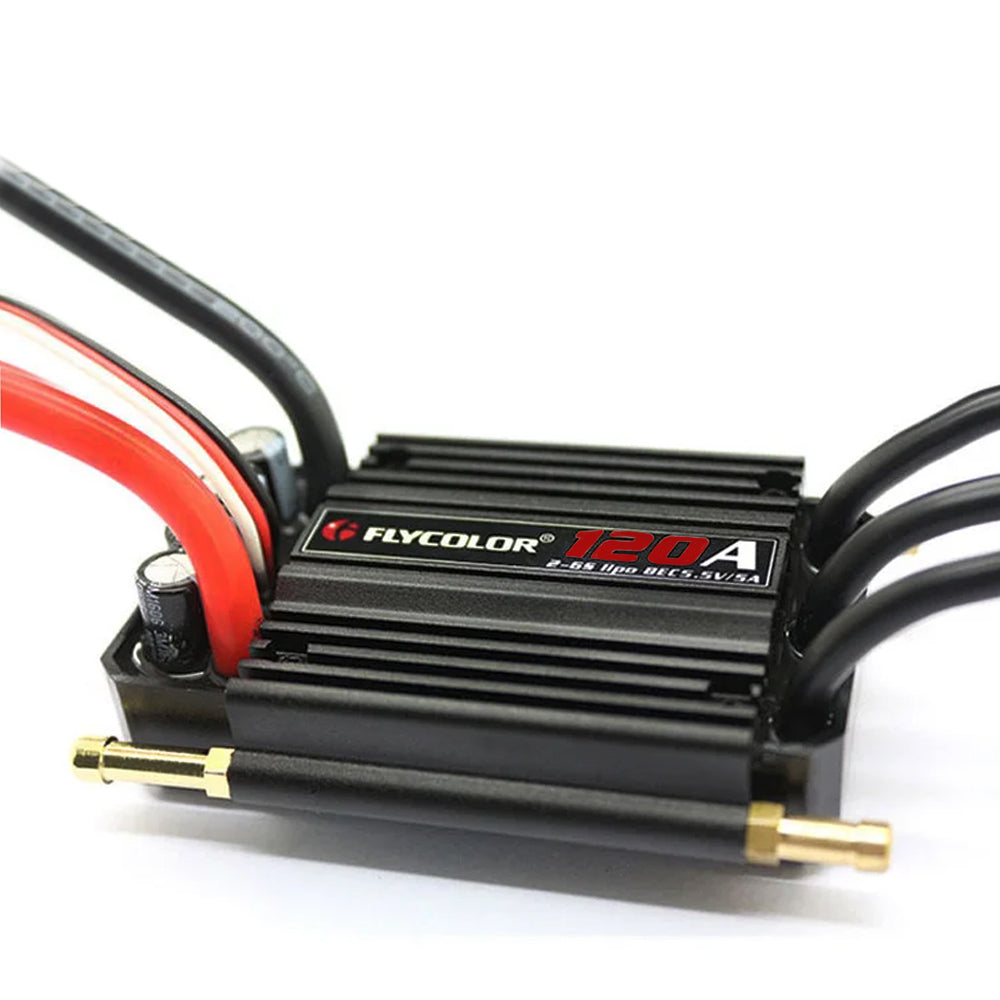

120A:
Output: Continuous 120A, Burst 720A up to 10 seconds.
Input Voltage:  2-6S
BEC: 5.5V/5A
Size: 76*56*25 mm.
Weight: 155g.
Application: max 120cm boats

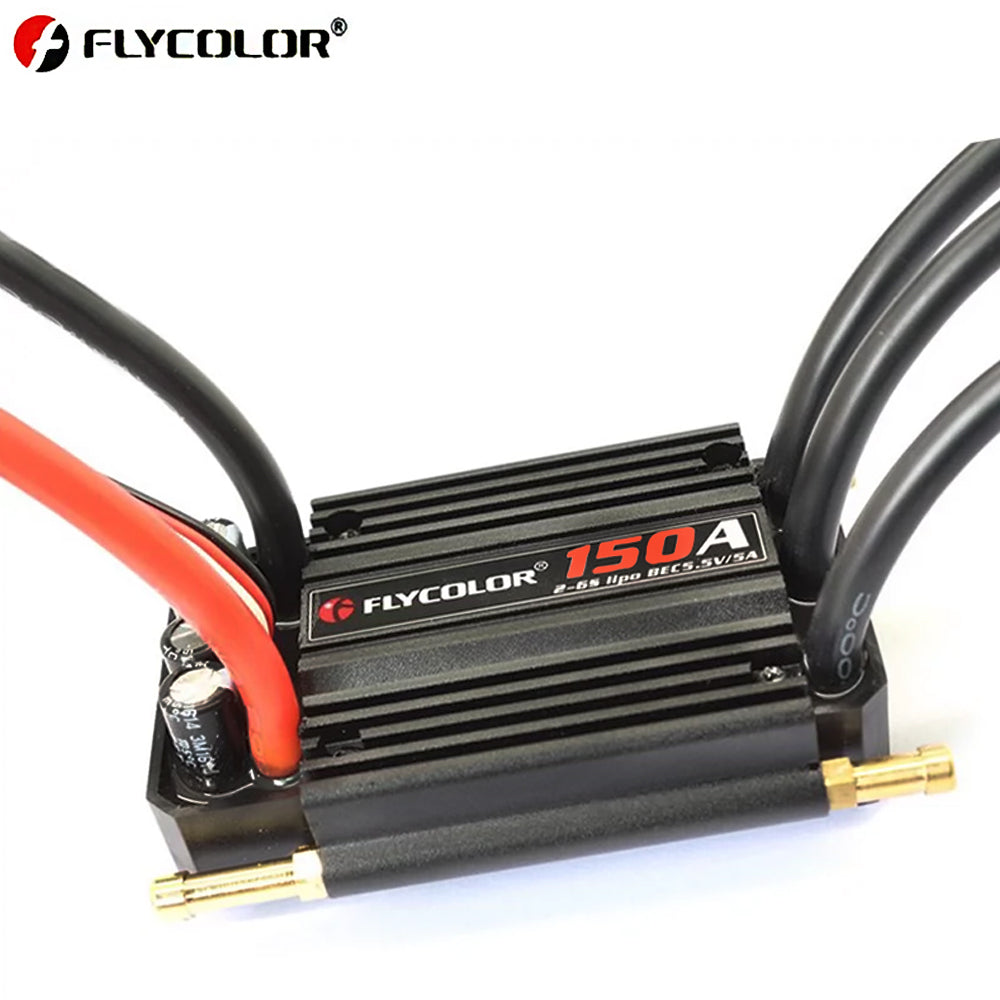

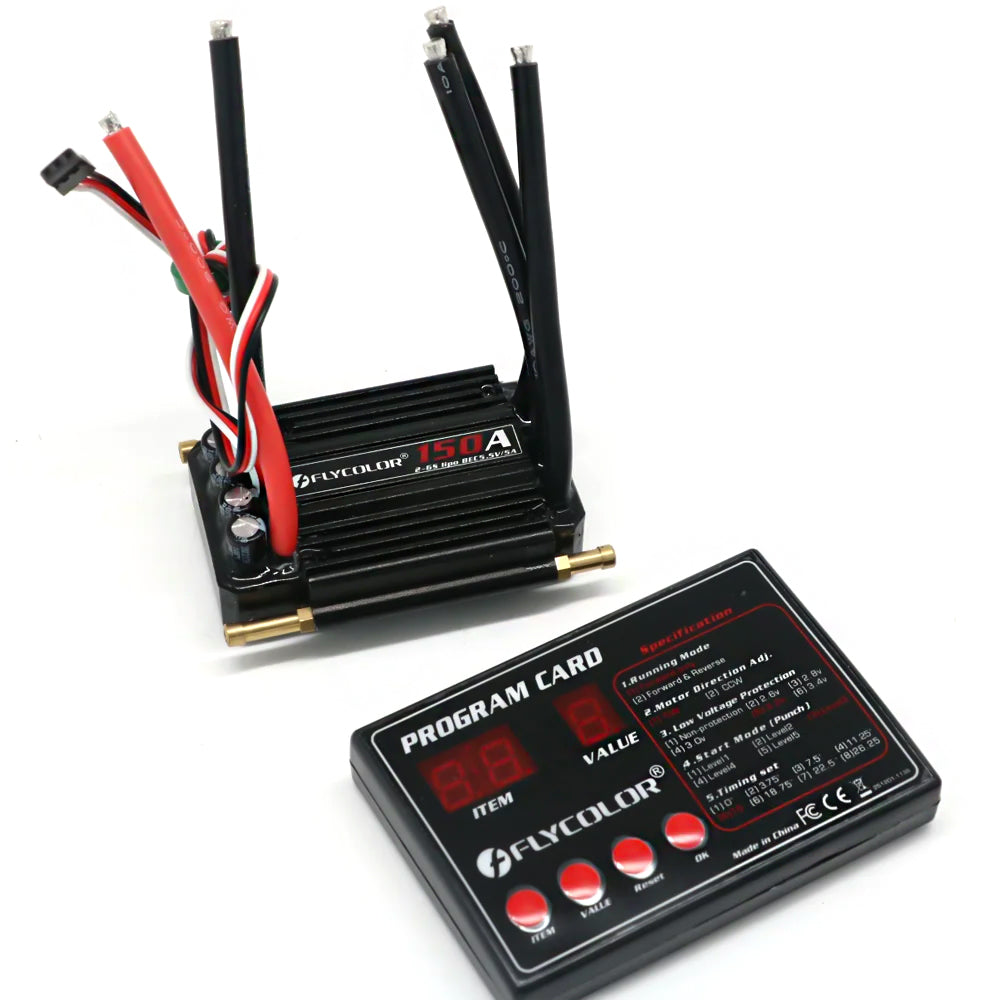

150A:
Output: Continuous 150A, Burst 900A up to 10 seconds.
Input Voltage:  2-6S
BEC: 5.5V/5A
Size: 76*56*25 mm.
Weight: 165g.
Application: max 135cm boats
