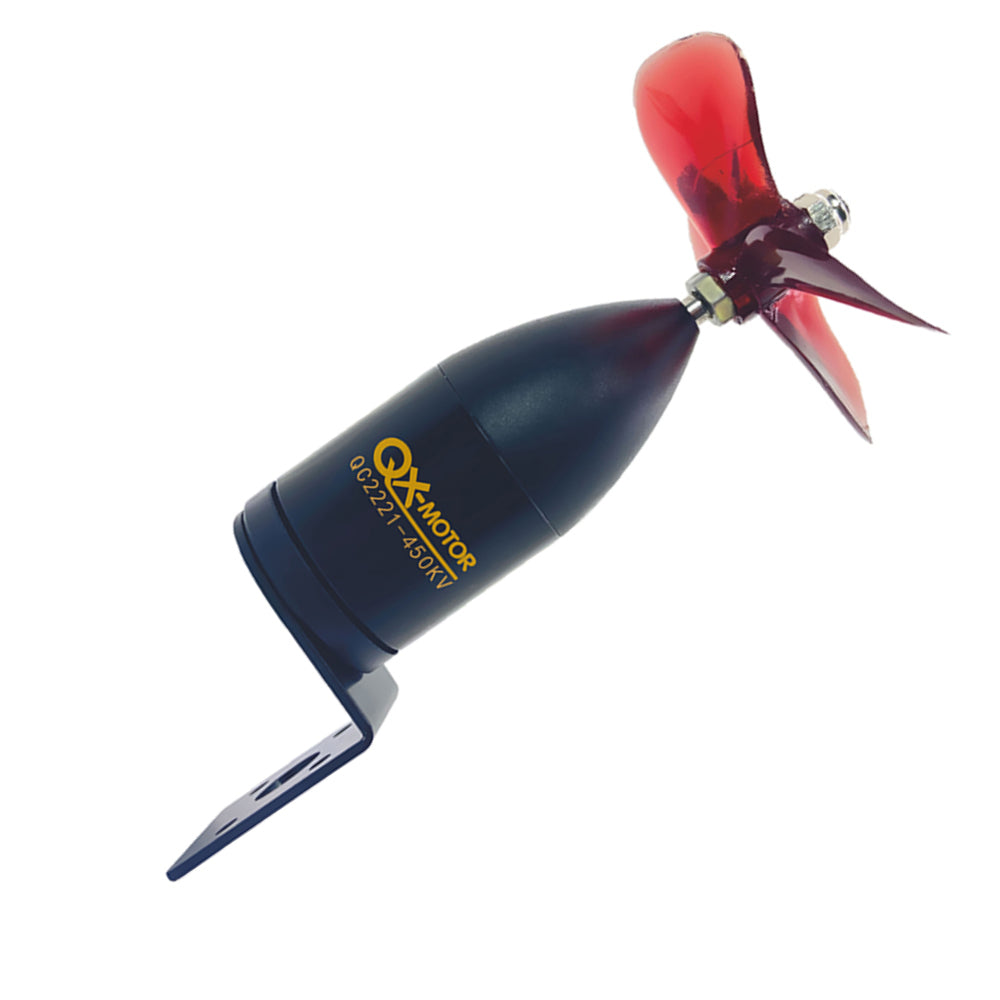

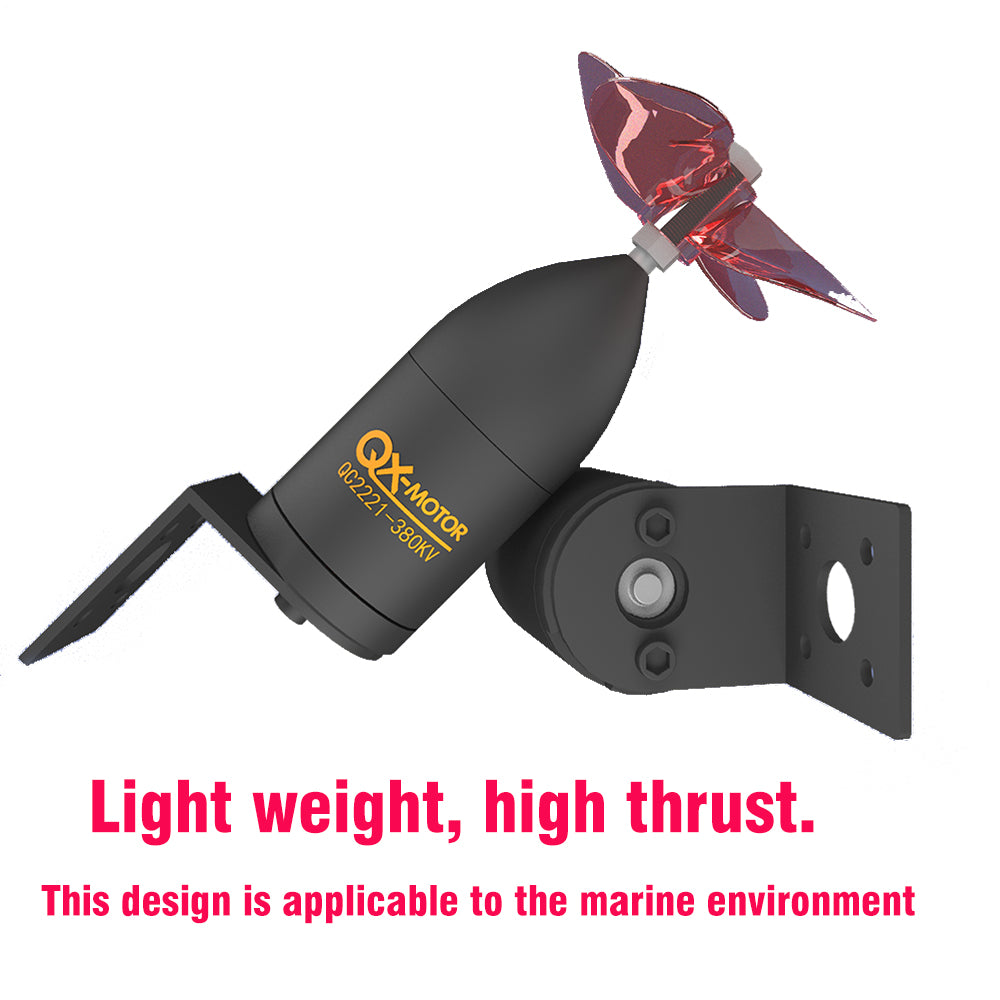

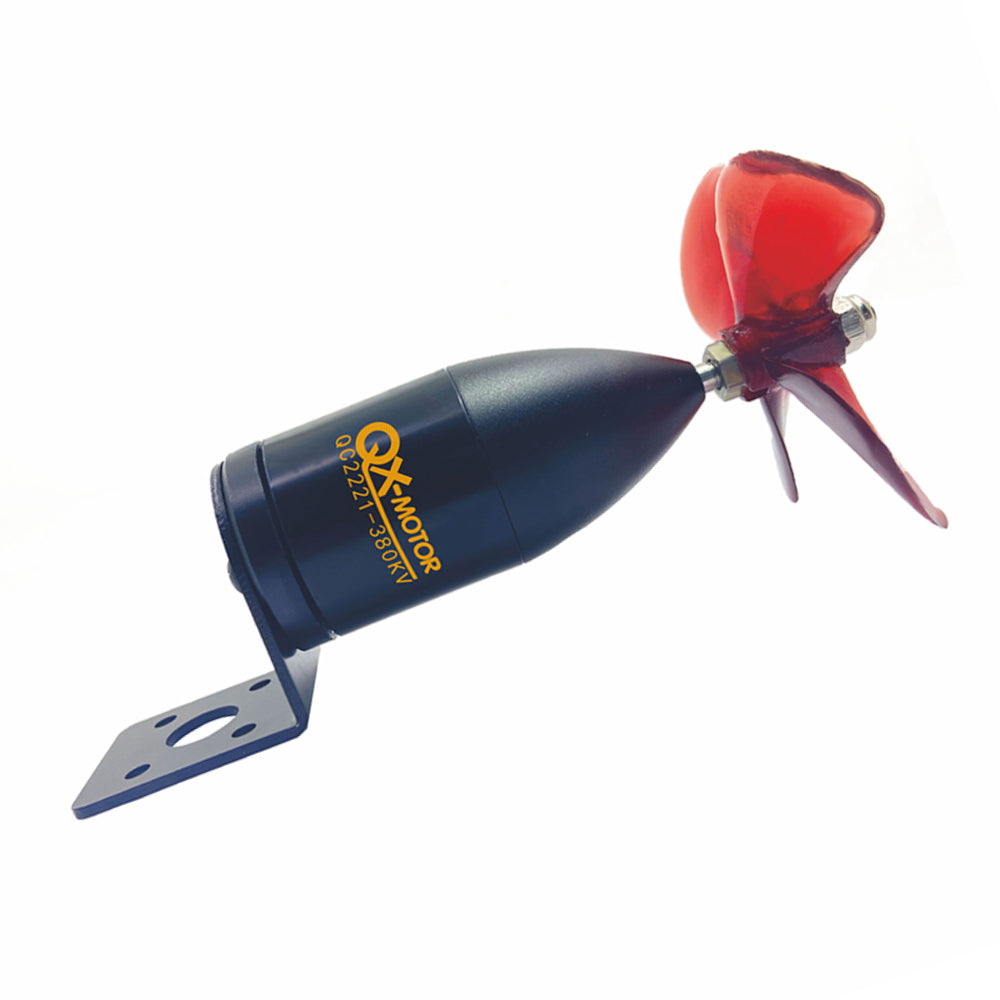

14.8V-24V Underwater Thruster Waterproof Brushless Motor 3.5KG Thrust for Nest boat DIY Models
14.8V-24V Underwater Thruster Waterproof Brushless Motor 3.5KG Thrust for Nest boat DIY Models
Couldn't load pickup availability
Attention please:
There are certain technical thresholds for the use of this product, please confirm whether it is suitable for use before taking the order. This product does not accept returns and exchanges caused by non-quality problems. If you buy this product, it is deemed to be aware of and confirmed to use.
It is forbidden to carry out the sealing test with positive or negative pressure, otherwise, it may cause problems such as water leakage in the line, we will not be responsible for this issue.
This product is an underwater brushless thruster, which needs to be driven and controlled by an ESC. When the power is high, heat dissipation is required, otherwise, the overheating protection of the ESC may cause the motor to slow down or stop. This issue cannot be considered a quality issue.
| （model） | QC2221-380KV/550KV | （Shaft diameter） | M4.0 | ||||
| （Blade diameter） | φ60mm | (No.f cells) | 3-6S lipo | ||||

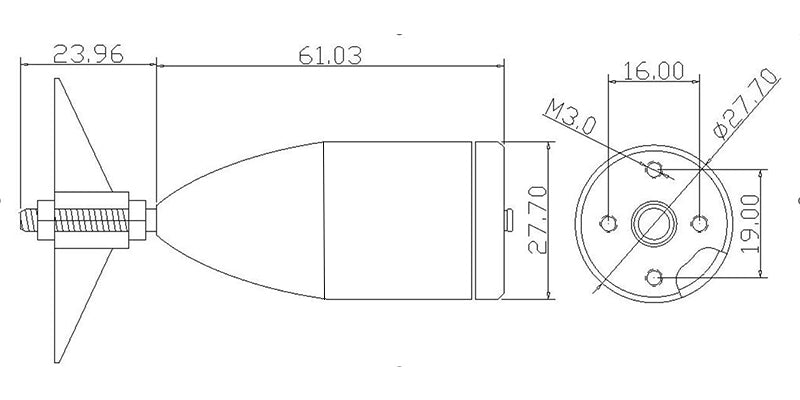

| （Motor size） | 27.70*61.03mm | （service voltage） | 12V-24V | ||||
| （weight） | 118g | （No load rpm） | 8000-9500rpm | ||||
| （Maximum rated power） | 400W | ||||||

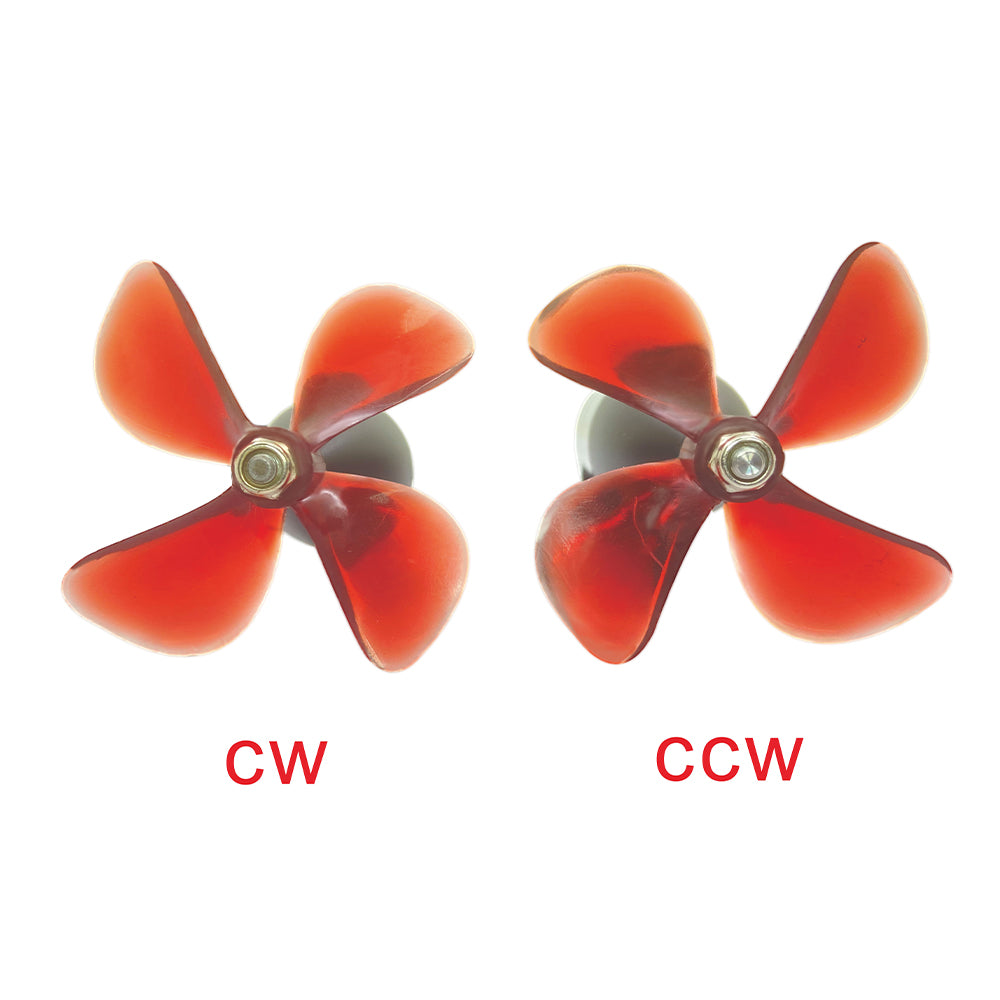

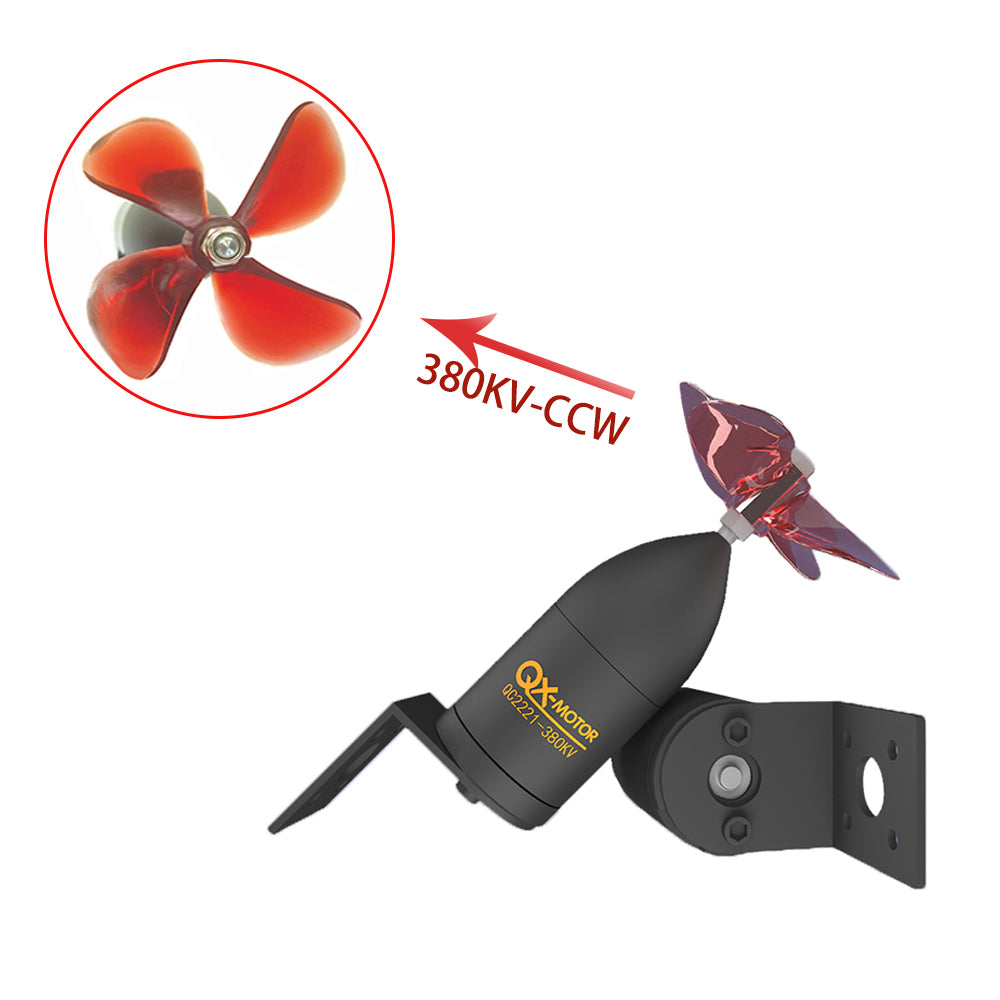

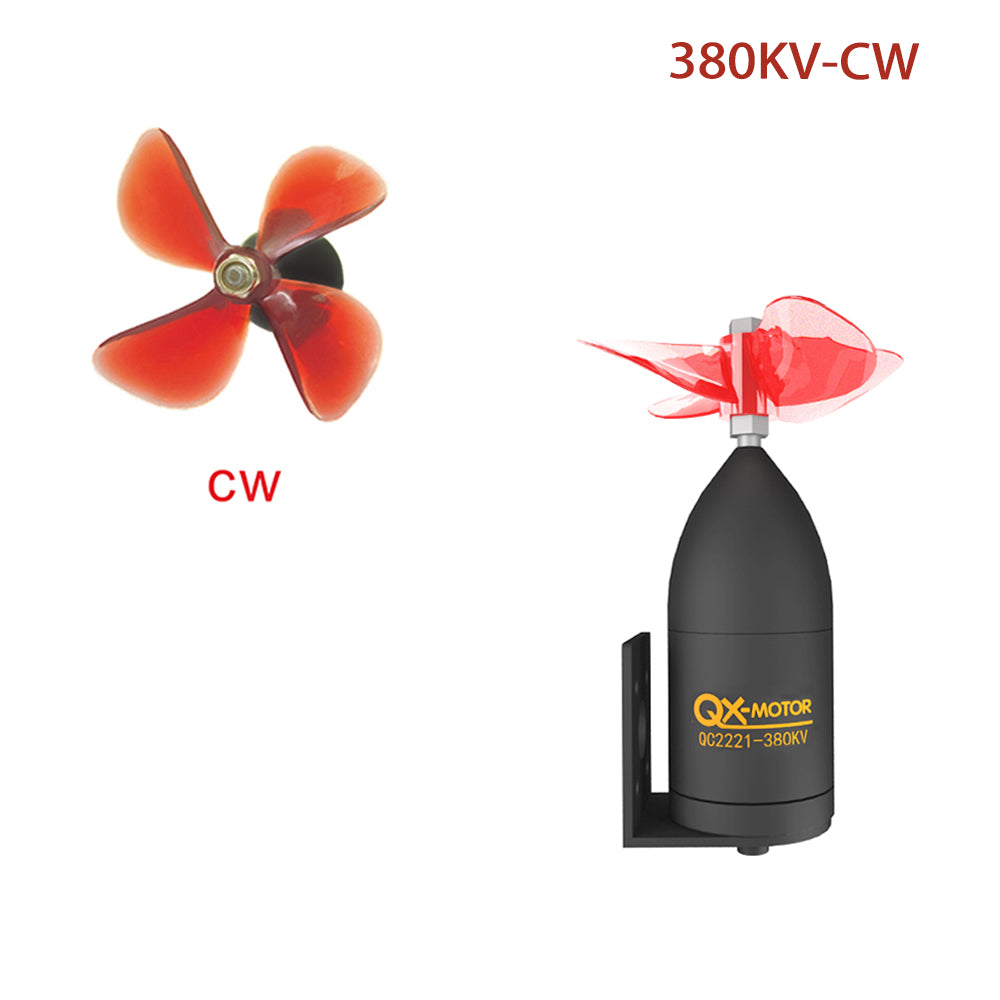

| （Load test）φ60mm propeller | （reverses） | （Forward rotation） | ||||||
| （volts) | （amps） | （watts） | （thrust） | （amps） | （watts） | （thrust） | ||
| 380KV | 12V | 6.4A | 76.8W | 1400g | 6.3A | 75.6W | 1450g | |
| 14V | 7.8A | 109.2W | 1770g | 7.7A | 107.8W | 1790g | ||
| 16V | 9.4A | 150.4W | 2100g | 9.3A | 148.8W | 2150g | ||
| 18V | 11A | 198W | 2530g | 10.8A | 194.4W | 2550g | ||
| 20V | 12.7A | 254W | 2780g | 12.5A | 250W | 2810g | ||
| 22V | 14.4A | 316.8W | 3000g | 14.1A | 310.2W | 3100g | ||
| 24V | 16A | 384W | 3550g | 15.9A | 381.6W | 3580g | ||

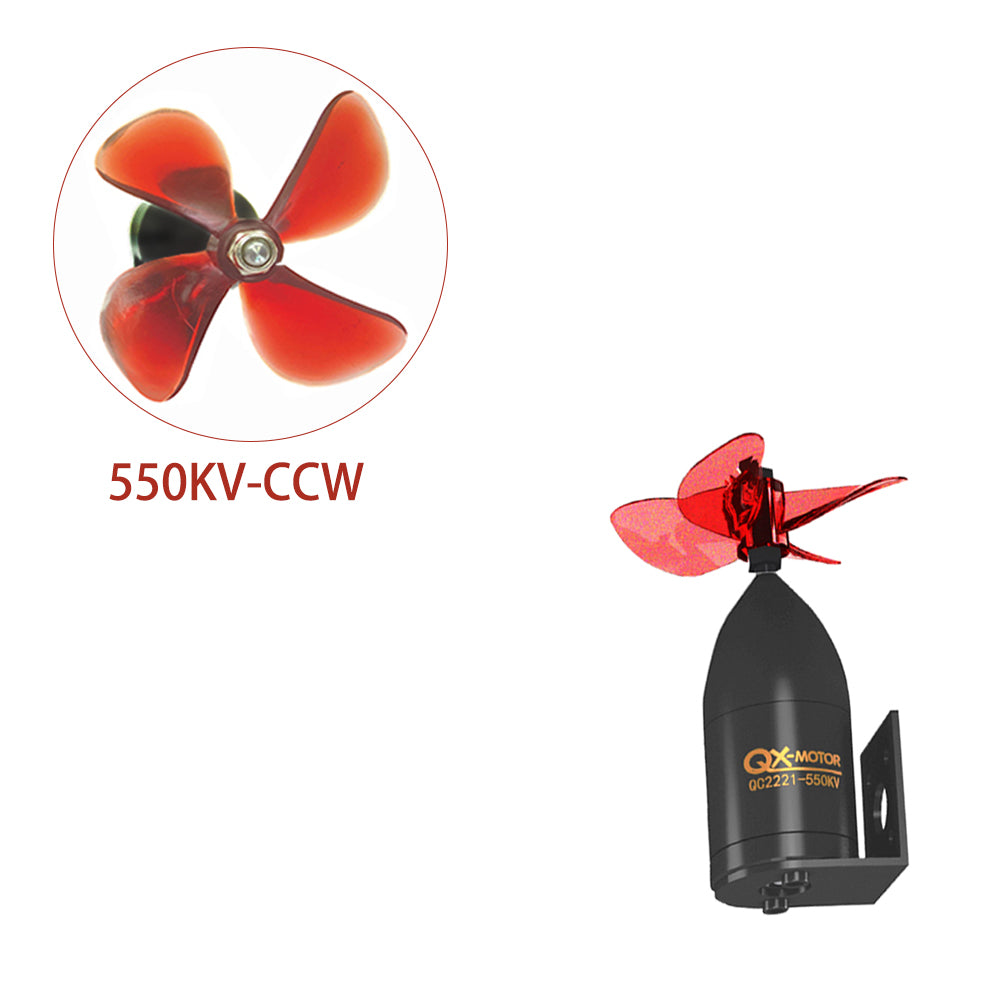

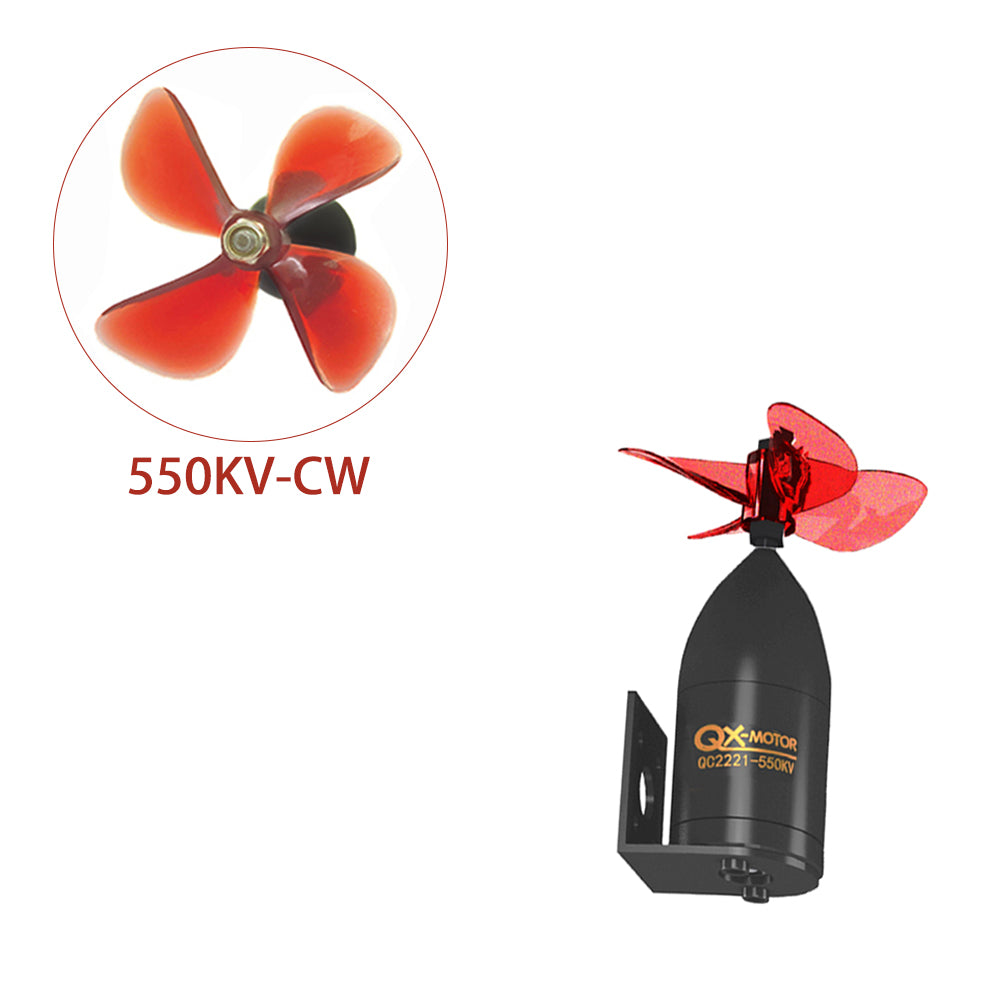

| 550KV | 12V | 14A | 168W | 2160g | 13.5A | 162W | 2190g | |
| 14V | 16.5A | 231W | 2550g | 16A | 224W | 2580g | ||
| 16V | 20.5A | 328W | 3150g | 20.4A | 326.4W | 3200g | ||
