QX-Motor

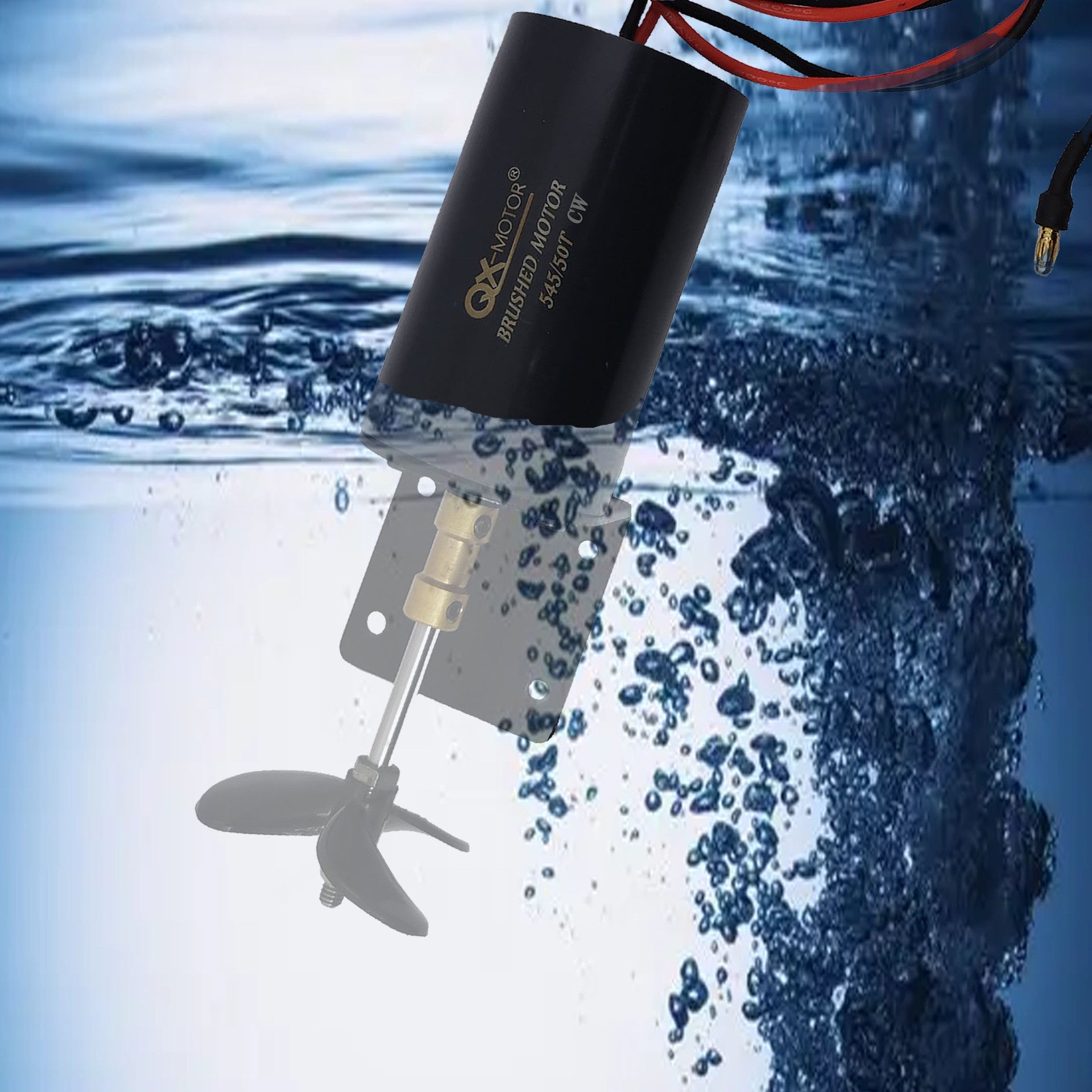

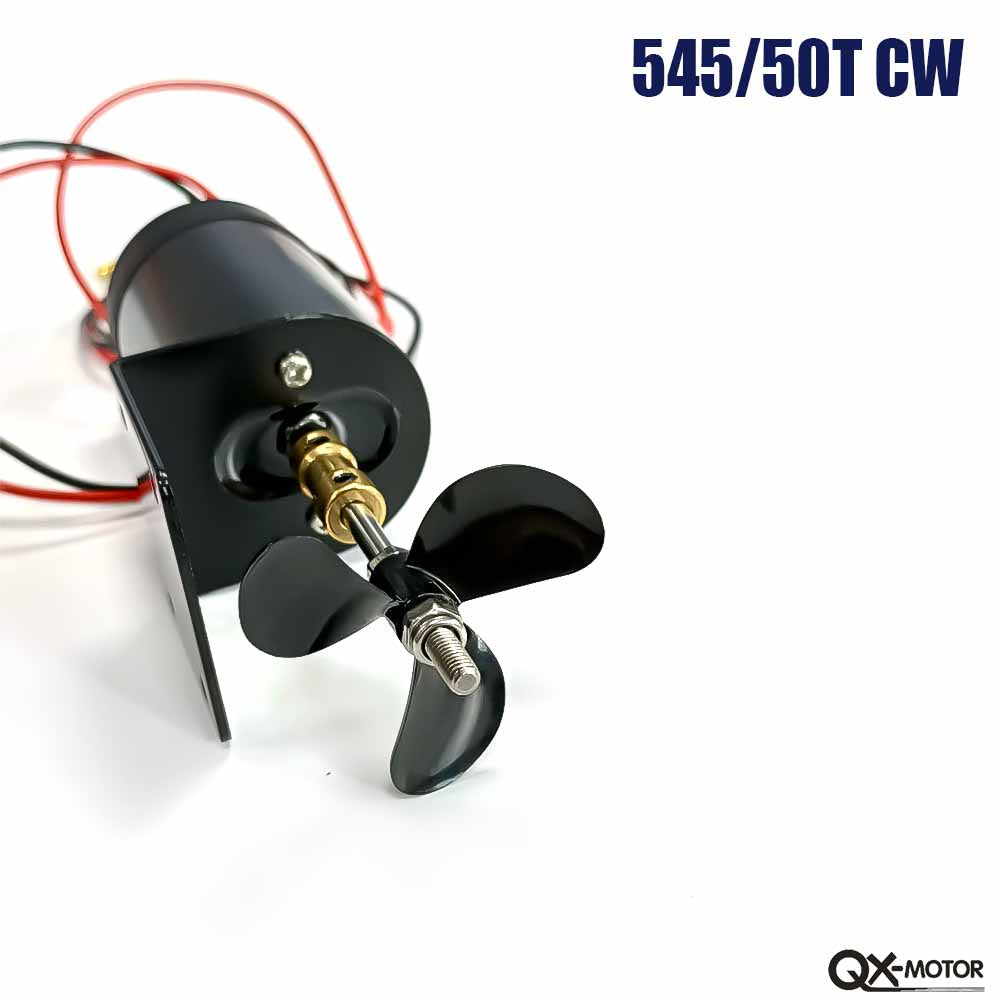

12V 16V brush underwater propeller motor 545/50T for unmanned / nesting trawler/remote control /duck boat
12V 16V brush underwater propeller motor 545/50T for unmanned / nesting trawler/remote control /duck boat
Couldn't load pickup availability
It is very suitable for nest boats, trawlers, unmanned boats, school model teams, DIY, waterproof grade ip68
Motor: brush motor
1): the motor is fully sealed and filled with glue, and the waterproof depth can reach 50m;
2): Motor size: diameter 40mm, length of motor part 68mm;
3): working voltage of propeller motor (working voltage of propeller): 7.4v (2S) -14.8v (4S) (lithium battery is generally recommended)
| （model） | BRUSHED-MOTOR-545/50T | |||||||
| （Blade diameter） | φ48mm（3-Blade propeller） | |||||||
| （Motor size） | 40*68mm | |||||||
| （weight） | 275g | |||||||
| （Shaft diameter） | 4mm | |||||||
| (No.f cells)： | 2-4S lipo | |||||||
| （service voltage） | 7.4V-14.8V | |||||||
| （No load rpm）： | 10000rpm | |||||||
| (Ｗ)(max continuous power)/10S | 160W | |||||||
| (Ａ)(max continuous current)/10S | 10A | |||||||
| （thrust）： | 700-1000G | |||||||
| （Load test） φ48mm propeller |
（reverses） | （Forward rotation） | ||||||||
| （volts） | （amps） | （thrust） | （amps） | （thrust） | ||||||
| 10V | 3.1A | 520g | 3.2A | 550g | ||||||
| 12V | 4.0A | 670g | 4.0A | 715g | ||||||
| 14V | 5.6A | 780g | 4.8A | 825g | ||||||
| 16V | 5.3A | 930g | 5.5A | 1000g | ||||||
