QX-Motor QM6008 320KV 370KV Brushless Motor for ZD850 T960 T810 Multi Wing Aircraft

QX-Motor QM6008 320KV 370KV Brushless Motor for ZD850 T960 T810 Multi Wing Aircraft

Regular price $48.99 USD
Regular price $68.99 USD Sale price $48.99 USD
Sale Sold out
QM6008

QX-Motor QM6008 320KV 370KV Brushless Motor for ZD850 T960 T810 Multi Wing Aircraft

Model: QM6008
RPM: 320KV / 370KV
Configuration: 12N14P
Shaft Diameter: 52mm
Stator Length: 8mm

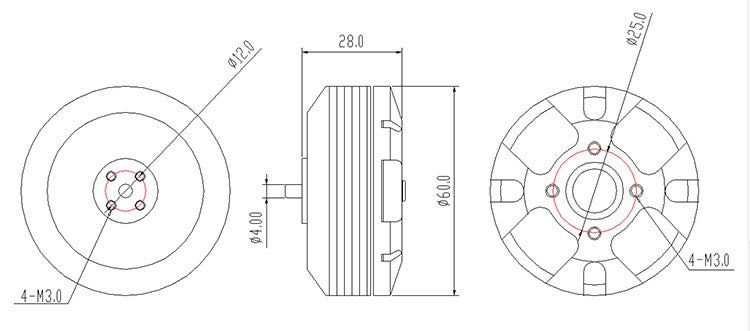

Motor Dimension: 60.3x27.58
Weight: 200g
Idle current@10.0V: 0.5A
No.f cells: 3/6S Lipo
Max Continuous Power: 650W
Max Continuous Current: 30A



Test Specification:



Model Propeller Volts
(V)
Amps
(A)
Watts
(W)
Thrust
(g)
Thrust
(oz)
Efficiency
(g/w)
Efficiency
(oz/w)
Throttle
(E)
QM6008
320KV
15x5.5 22.2  14.3  311 1980 69.84 6.37 0.22 100%
17x5.5 22.2  19.8  440 3050 107.58 6.94 0.24 100%
18x5.5 22.2  24.4  542 3520 124.16 6.5 0.23 100%
QM6008
370KV
15x5.5 22.2  1.6  36 460 16.23 12.95 0.46 50%
22.2  5.6  124 1250 44.09 10.05 0.35 65%
22.2  10.0  222 1910 67.67 8.6 0.3 75%
22.2  12.4  275 2220 78.31 8.06 0.28 80%
22.2  19.4  431 3020 106.53 7.01 0.25 100%
16x5.5 22.2  2.5  56 620 21.87 11.17 0.39 50%
22.2  11.7  260 1850 65.26 7.12 0.25 65%
22.2  21.0  466 2660 93.83 5.71 0.20  75%
22.2  26.9  597 3050 107.58 5.11 0.18 80%
22.2  36.0  799 3550 125.22 4.44 0.16 100%
17x5.5 22.2  2.3  51 680 23.99 13.32 0.47 50%
22.2  9.9  220 2000 70.55 9.1 0.32 65%
22.2  18.3  406 3020 106.53 7.43 0.26 75%
22.2  24.2  537 3600 126.98 6.7 0.24 80%
22.2  34.5  766 4500 158.73 5.88 0.21 100%
