QX-Motor

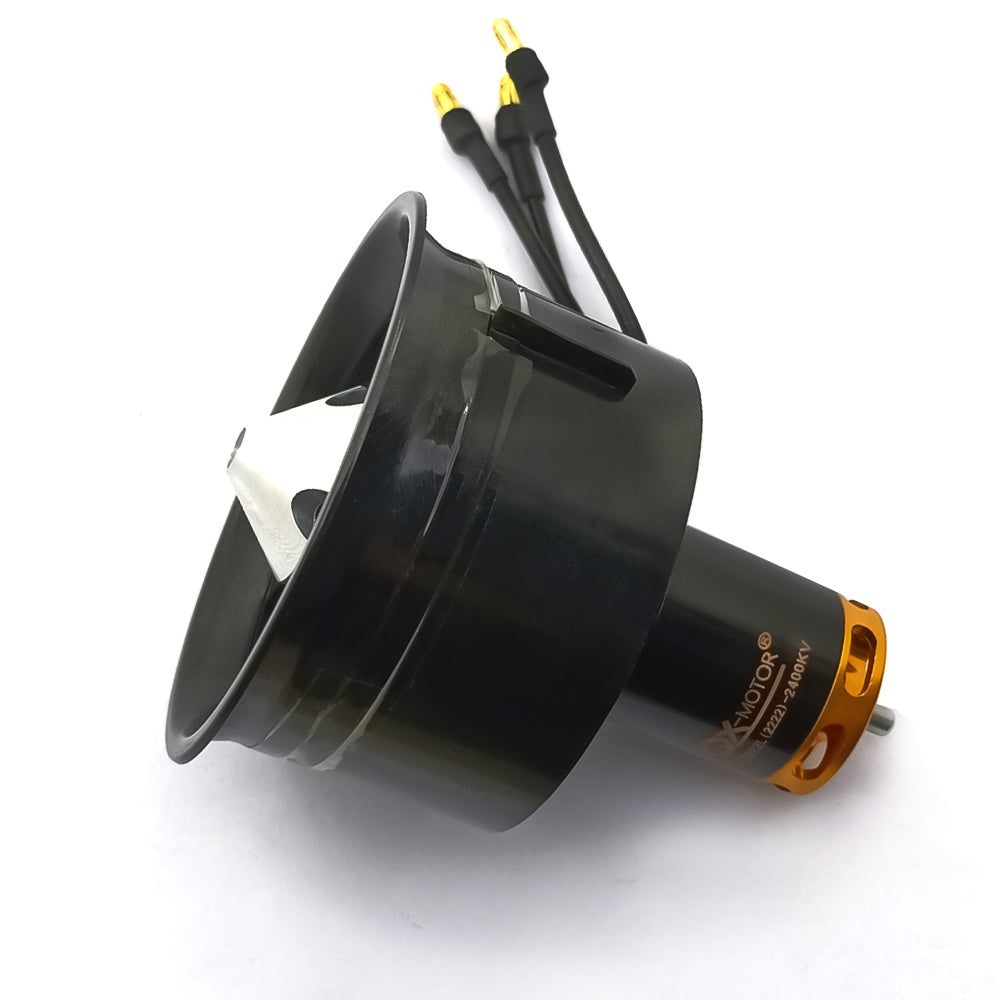

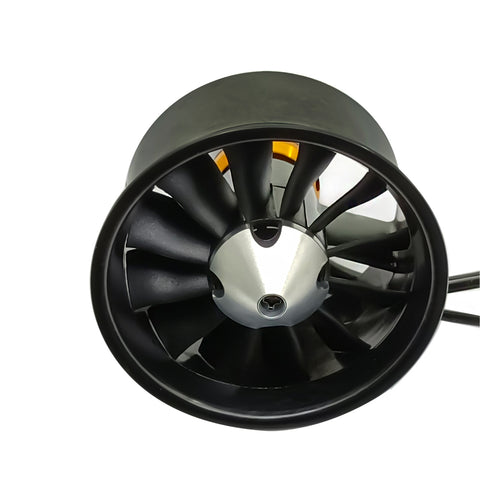

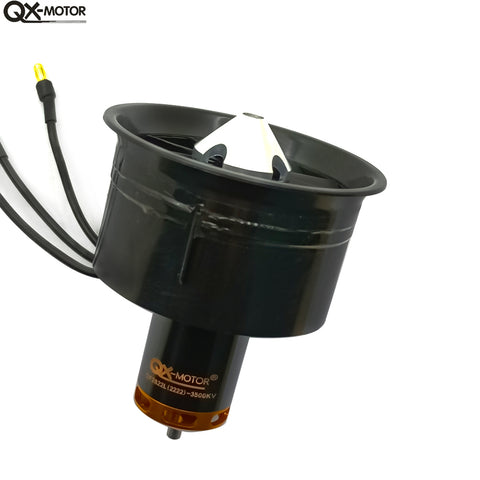

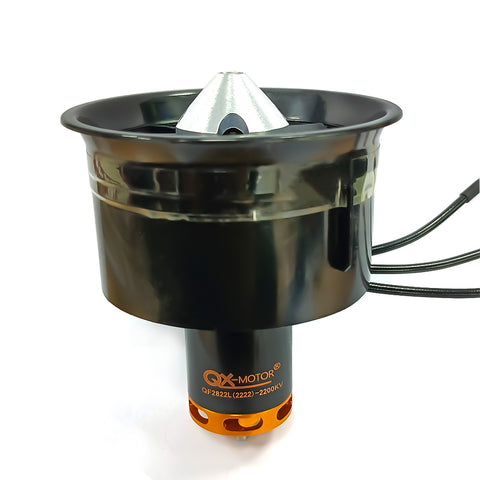

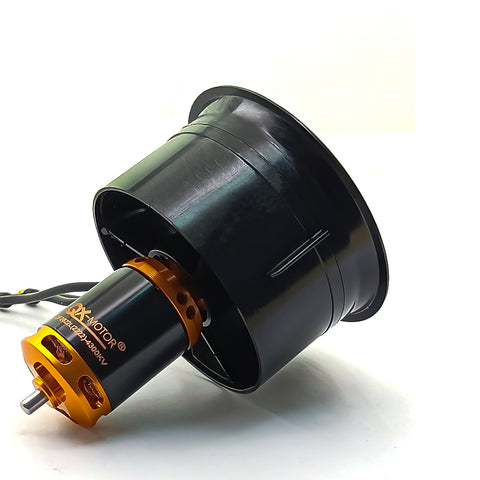

QX-MOTOR New 64mm EDF 2200KV/2400KV/3500KV/3800KV/4300kv Brushless Motor with 12 Blades Ducted Fan for RC Airplane Parts
QX-MOTOR New 64mm EDF 2200KV/2400KV/3500KV/3800KV/4300kv Brushless Motor with 12 Blades Ducted Fan for RC Airplane Parts
Couldn't load pickup availability
Description:
Brand Name: QX-MOTOR
Item Name: QF2822-3800KV/3500KV/2400KV/2200KV
Weight: 168g
EDF Diameter: 7.6cm / 2.99inch
EDF Height: 9.8cm /3.92inch
Usage: Suitable for RC Airplane
Features: Ducted fan with motor The advanced PC material, which is striking resistance and also high-temperature resistance that can guarantee stiffness and toughness, greatly decreasing the damage ratio. The combination is made of aluminum, which makes it more stable
Package list: 1 * 64mm EDF Set 2822 Motor with 12 Blades Ducted Fan
| (model) | QF2822 | |||||||||
| ＫＶ(rpm) | 2200KV 2400KV 3500KV 3800KV 4300KV | |||||||||
| (Configu-ration) | 9Ｎ6Ｐ | |||||||||
| (Shaft Diameter) | 3.0mm | |||||||||
| (motor Diameter) | 28mm | |||||||||
| (weight(g)) | 135G | |||||||||
| (No.f cells) | 3-6ＳＬipo | |||||||||
| (Ｗ)(max continuous power)/10S | 1100W/1300W/1200W/1200W/1000W | |||||||||
| (Ａ)(max continuous current)/10S | 100Ａ | |||||||||
| Prop | Volts (V) |
Amps (A) |
Watts (W) | Thrust (g) | Thrust (oz) | Efficiency (g/W) |
Efficiency (oz/W) |
Throttle | motor model |
ESC 电调 |
| 64mm EDF |
11.1 | 16.6 | 184.26 | 576 | 20.32 | 3.13 | 0.11 | 100% | QF2822(2222)-2200KV | 60A |
| 14.8 | 25.0 | 370 | 951 | 33.54 | 2.57 | 0.09 | 100% | |||
| 22.2 | 47.0 | 1043.4 | 1870 | 65.96 | 1.79 | 0.06 | 100% | |||
| 11.1 | 19.0 | 210.9 | 678 | 23.92 | 3.21 | 0.11 | 100% | QF2822(2222)-2400KV | 60A | |
| 14.8 | 30.0 | 444 | 1130 | 39.86 | 2.55 | 0.09 | 100% | |||
| 22.2 | 57.0 | 1265.4 | 2135 | 75.31 | 1.69 | 0.06 | 100% | |||
| 14.8 | 55.0 | 814 | 1570 | 55.38 | 1.93 | 0.07 | 100% | QF2822(2222)-3500KV | 80A | |
| 16 | 66.0 | 1056 | 1810 | 63.84 | 1.71 | 0.06 | 100% | |||
| 11.1 | 40.0 | 444 | 1045 | 36.86 | 2.35 | 0.08 | 100% | QF2822(2222)-3800KV | 80A | |
| 12.6 | 49.3 | 621.18 | 1296 | 45.71 | 2.09 | 0.07 | 100% | |||
| 14.8 | 63.5 | 939.8 | 1702 | 60.04 | 1.81 | 0.06 | 100% | |||
| 16 | 70.0 | 1120 | 1925 | 67.90 | 1.72 | 0.06 | 100% | |||
| 11.1 | 55.0 | 610.5 | 1230 | 43.39 | 2.01 | 0.07 | 100% | QF2822(2222)-4300KV | 80A | |
| 12.6 | 68.0 | 856.8 | 1550 | 54.67 | 1.81 | 0.06 | 100% | |||
