Product Introduction

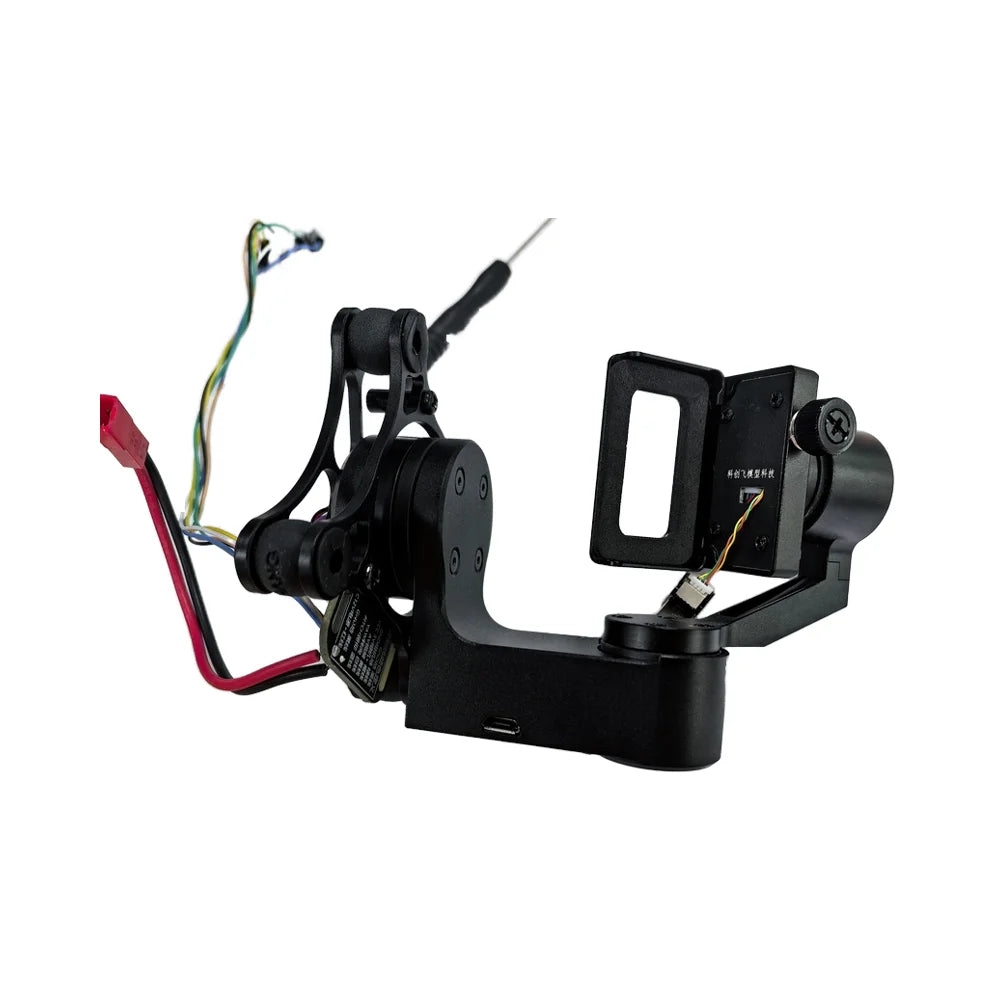

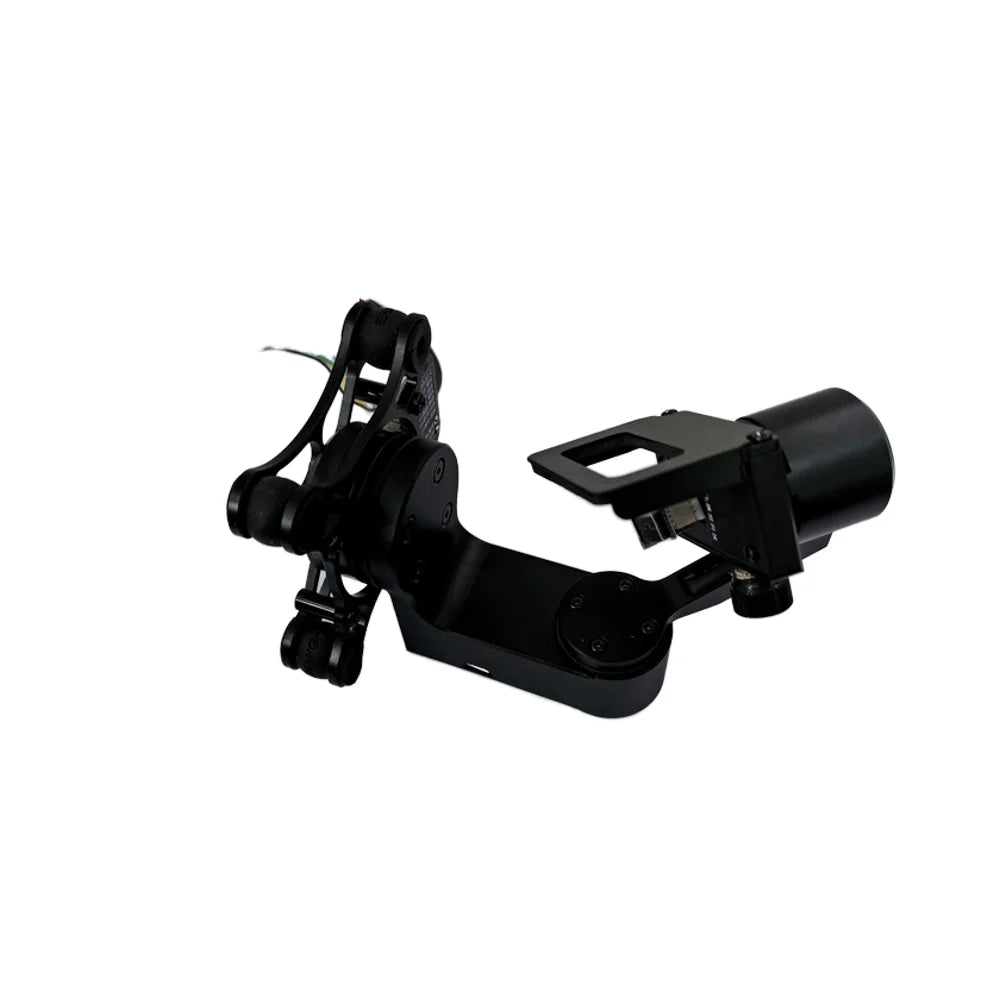

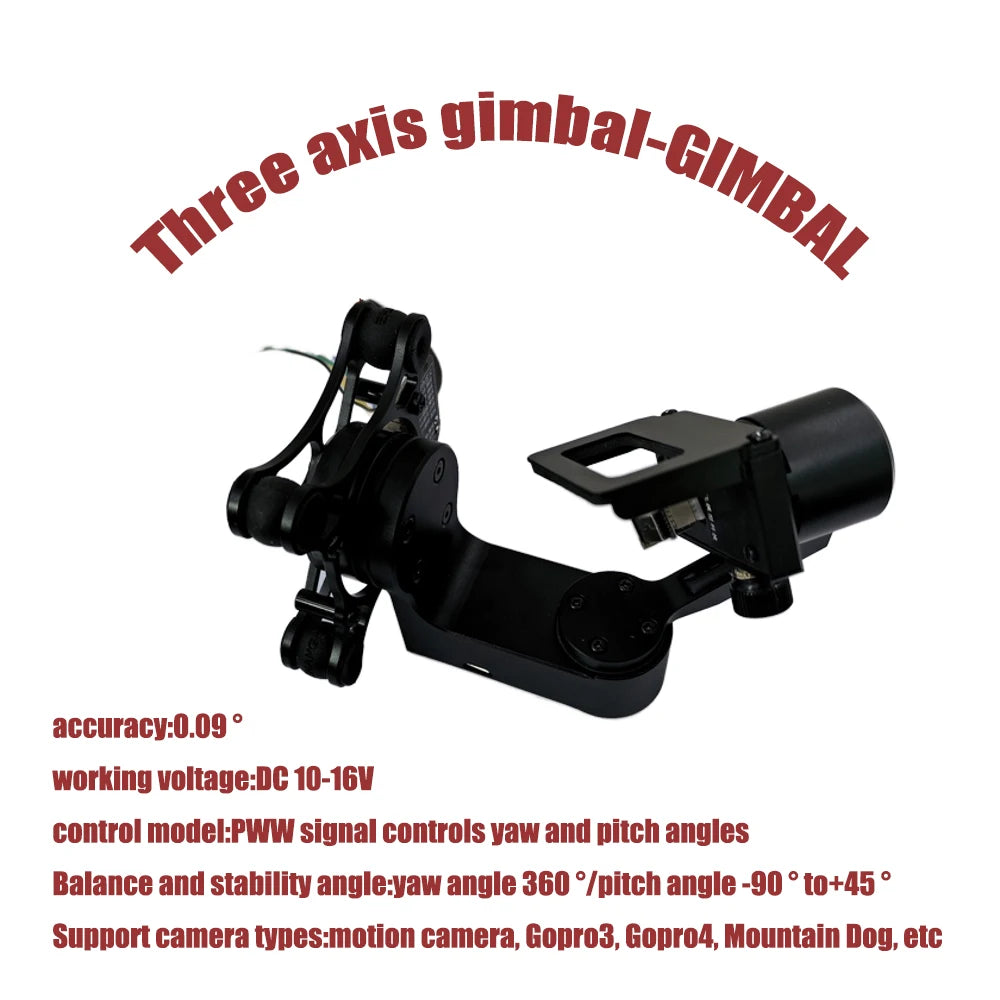

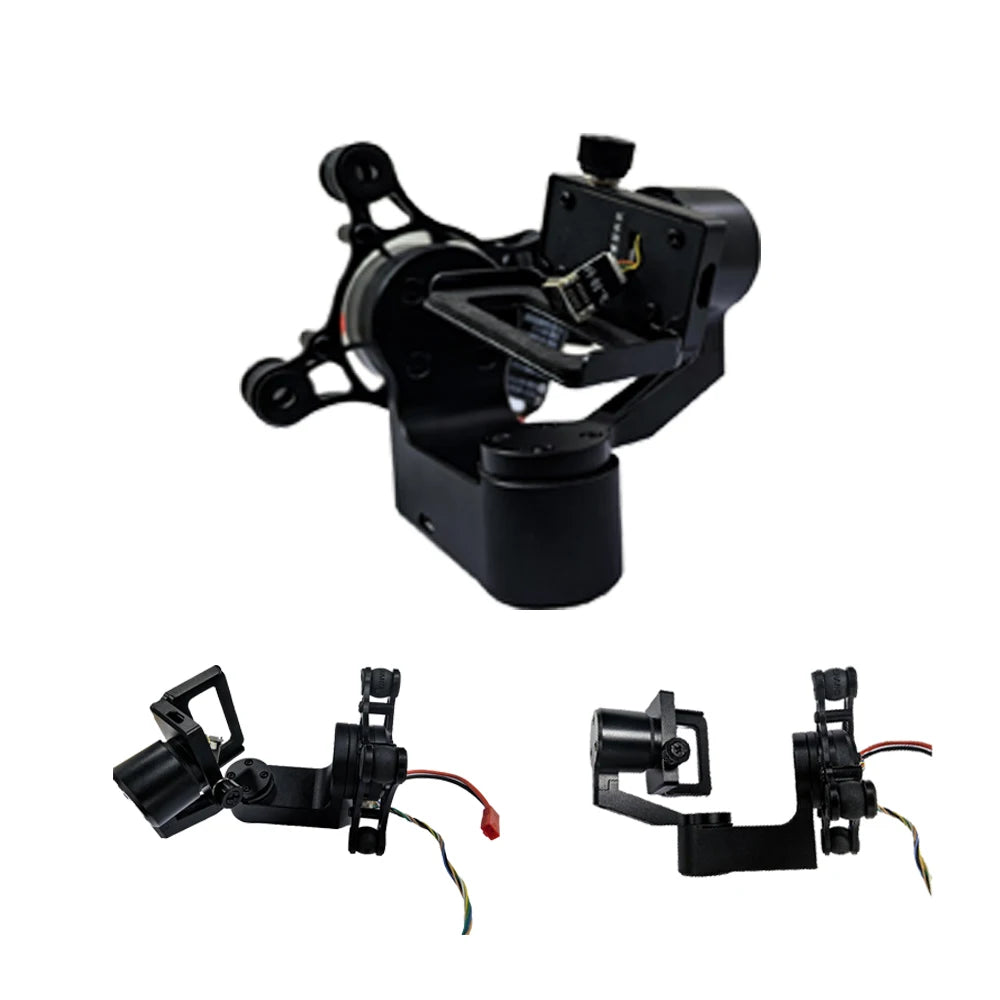

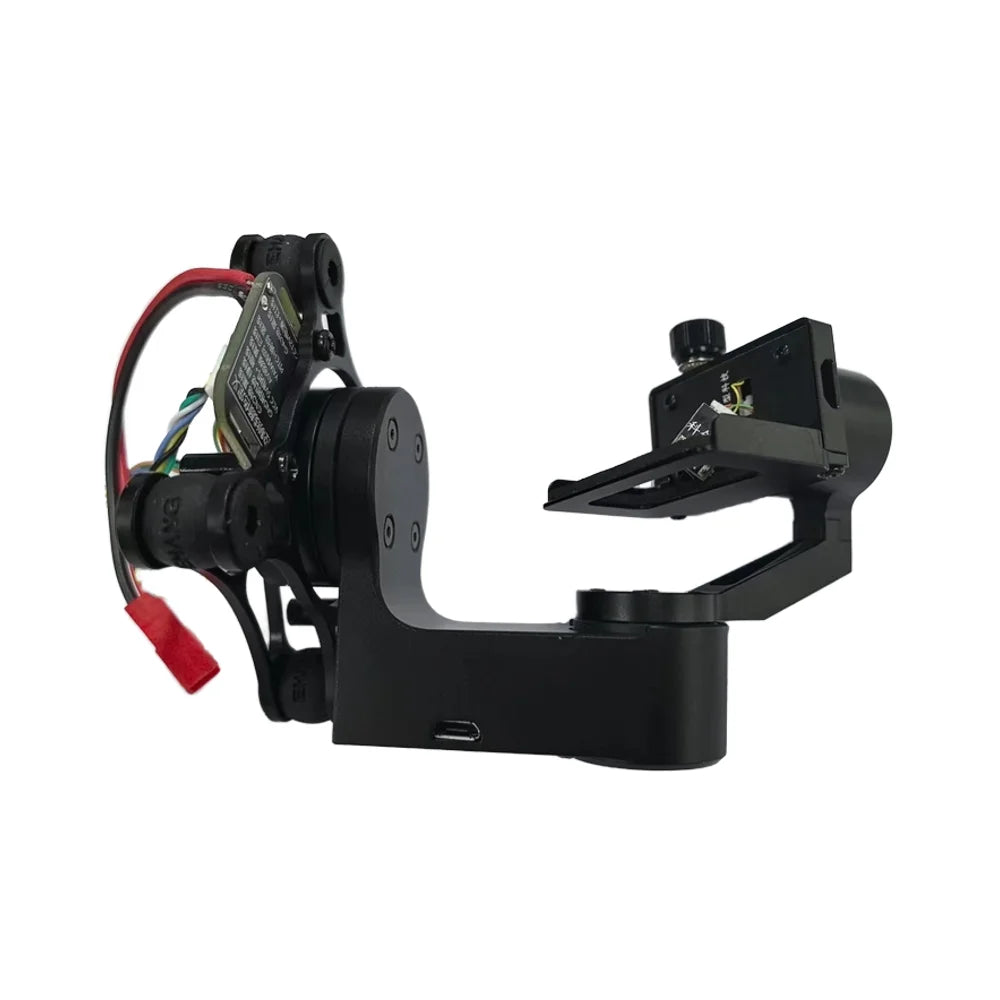

This all aluminum three-axis gimbal is specially designed for aerial drones and can be equipped with a 30-110 gram motion camera. The camera has a maximum size of 30 in width, 50 in height, and 70mm in length. It uses three brushless motors for high-precision and stable gimbal, allowing you to easily achieve ultra stable selfies.

The gimbal circuit control system adopts an open source solution, and professionals can adjust the gimbal parameters by installing the CP2102 driver program, connecting it to a USB port, and downloading the SimpleBGC-GUI-2-40 software package. (Non professionals are not recommended to adjust the parameters of the gimbal by themselves, as it may cause the gimbal to malfunction.)

instructions

1.Before powering on the gimbal, please install a camera weighing 30-100 grams. The camera must be securely fixed to the gimbal, otherwise it will shake continuously.

2. Install the camera and adjust the center of gravity to keep the gimbal suspended. Use a 10-16V power supply to power the gimbal, and it will automatically balance in about 5 seconds after being powered on.

3. The pitch and turn control of the gimbal is achieved by inserting blue and white DuPont wires into the receiver channel and selecting the corresponding channel. The receiver sends PWM signals to the gimbal. Note that the receiver should also be connected to ground and power.
