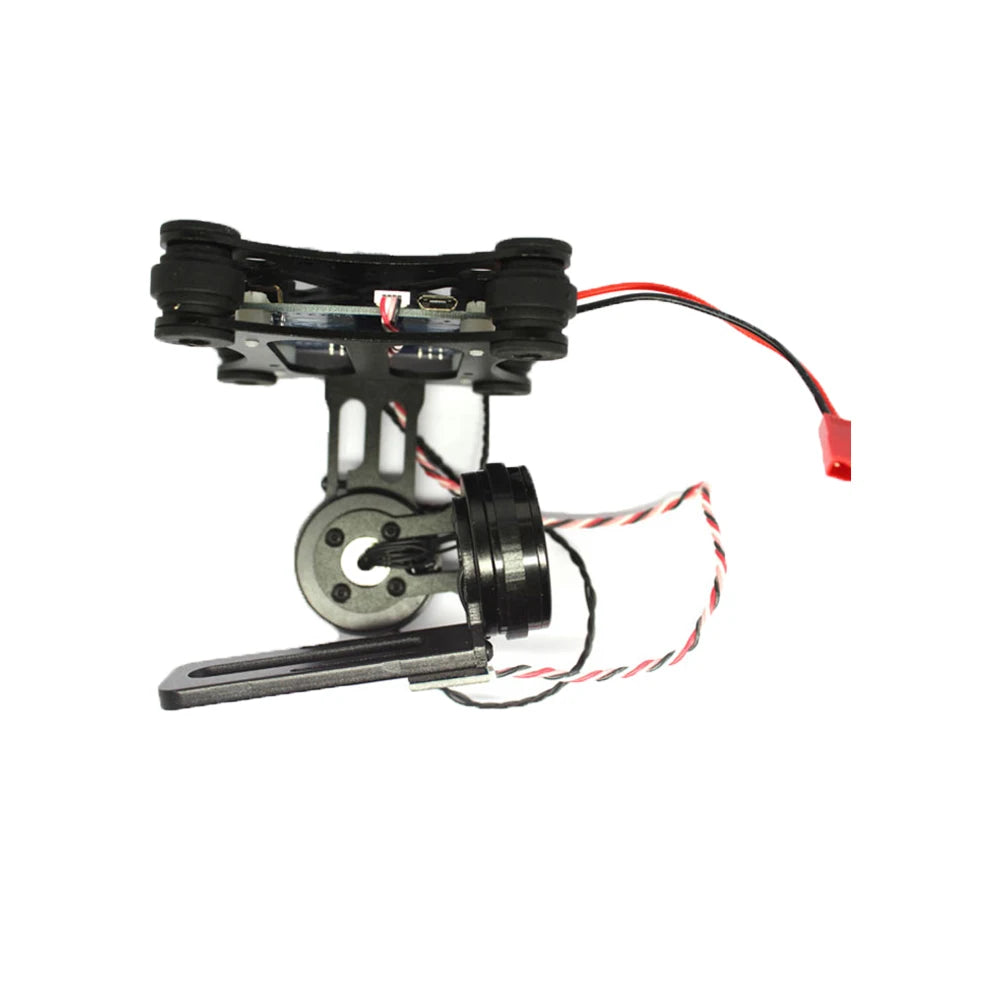

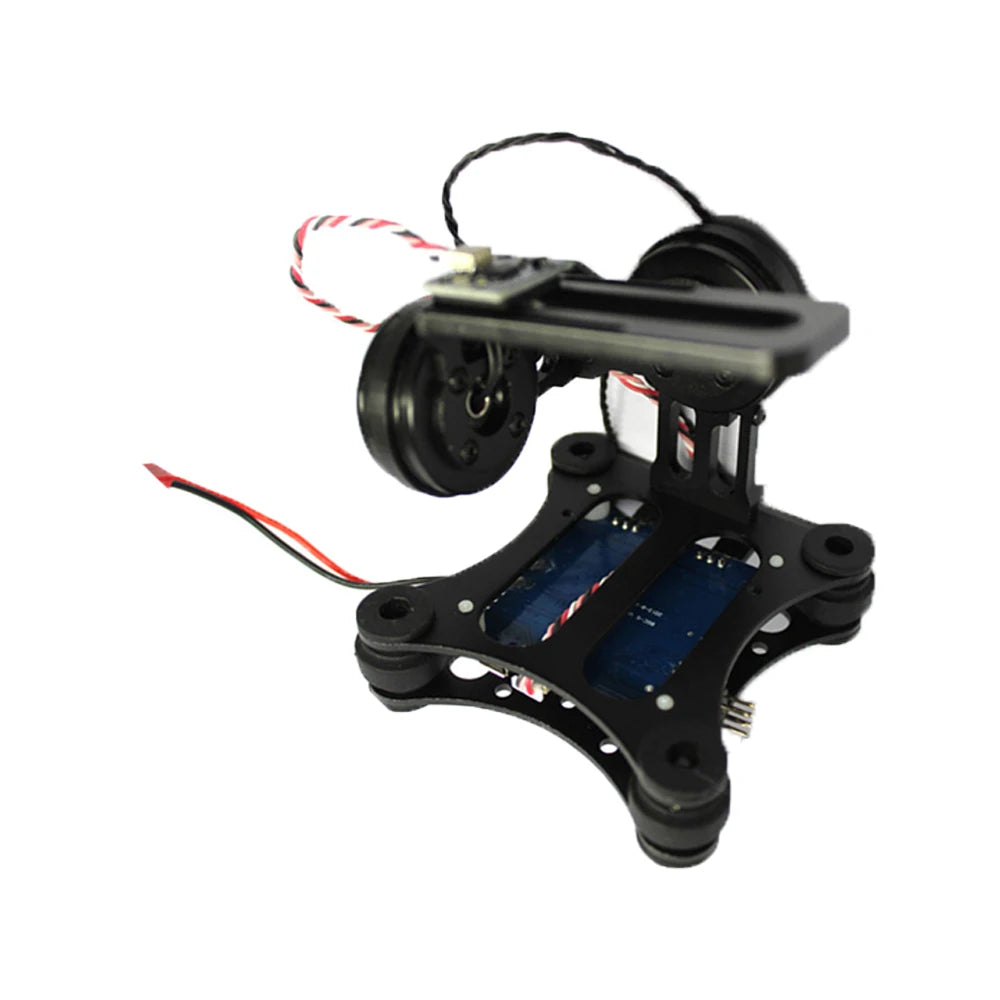

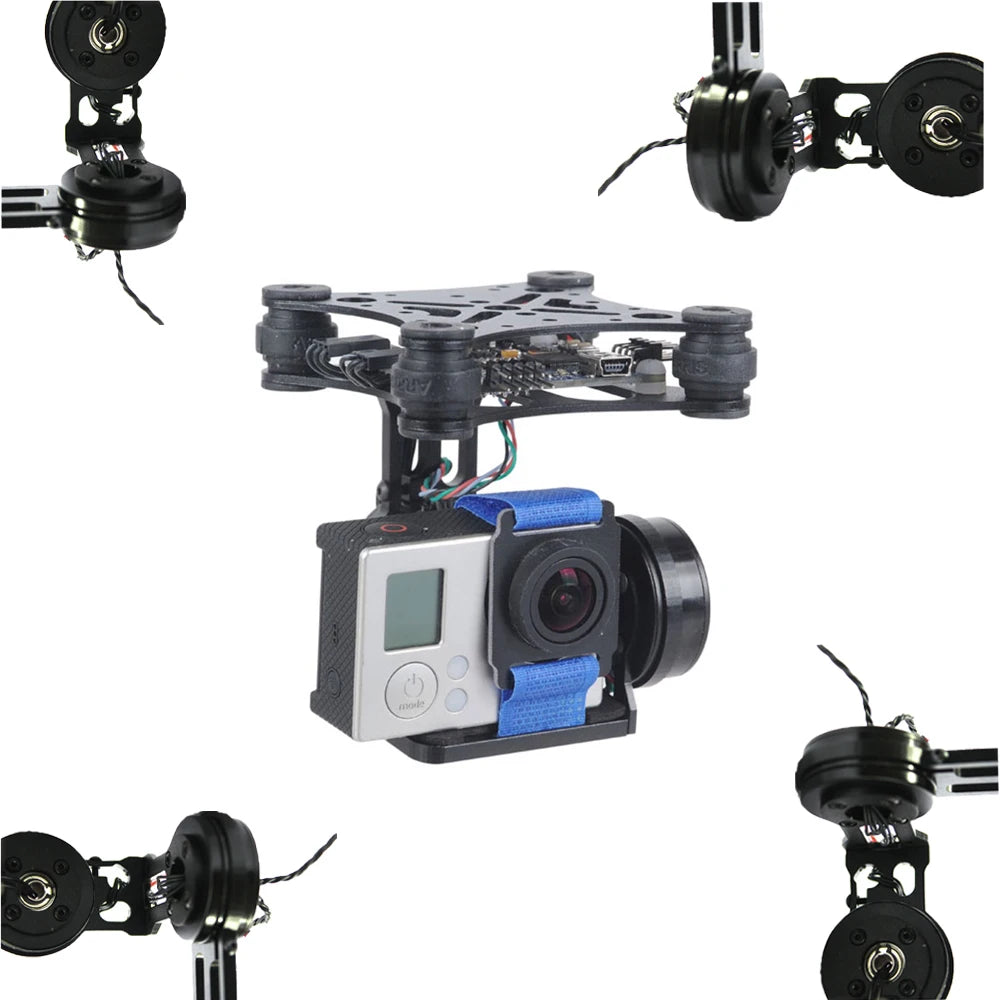

Name: CNC metal brushless gimbal

Materal: CNC Aluminium alloy

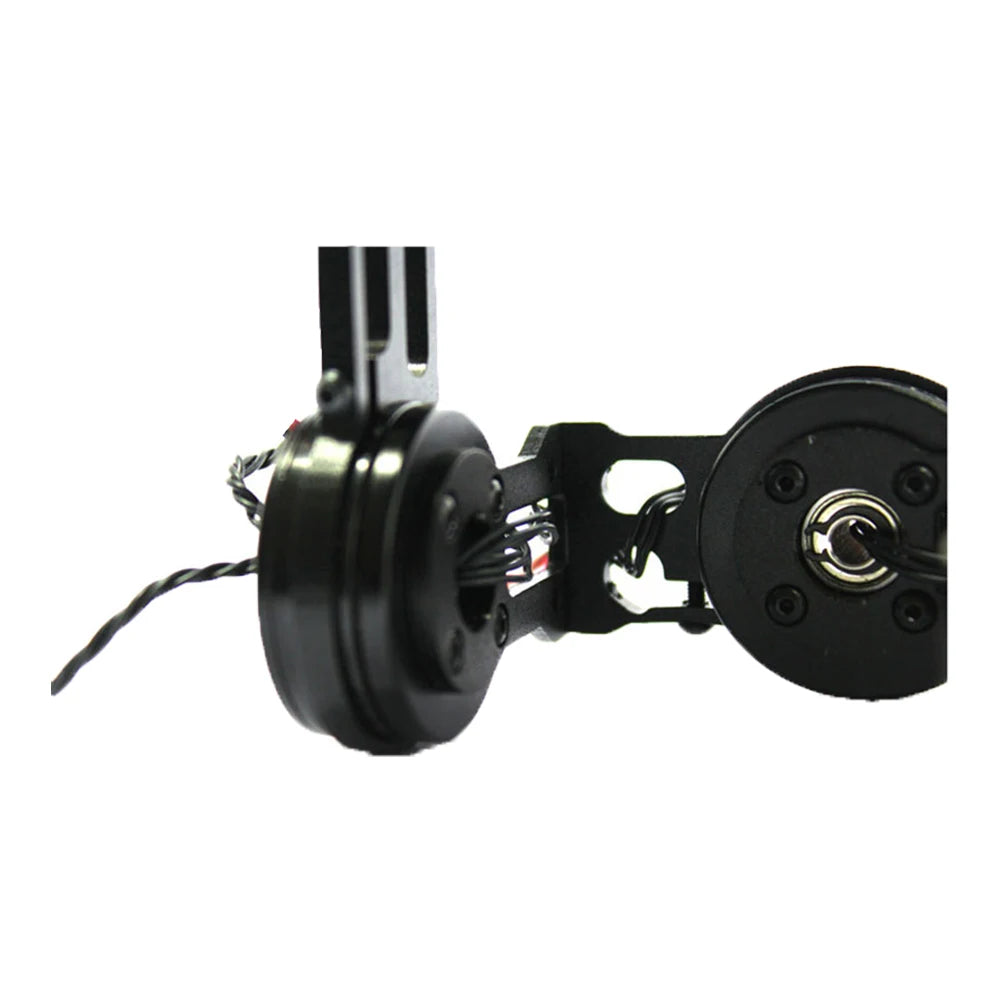

Motor: Model 2208 kv80 Brushless motor

Control Panel: BGC3.0 Brshless controlpanel

Software:BGC2.2

Strap: Gopro camera strap

Compatible camera: GOPRO 3 3+ 4

Battery plug type: JST plug/XH-2.54 plug

Voltage: 12V/3cell Lipo battery

Compatible model: DJI phantom Ⅰ, Ⅱ and otherDIY drones

Notes:

1. Recommended power supply for the gimbal is12V.(3cell lipo battery)

2. The gopro camera must fasten on the gimbal(Not any loose, this is very important)

3. Adjust the gopro camera left or right, let thecamera almost at level.

4. Please do not power on the gimbal until theGopro camera is fixed on the gimbal.

How to install:

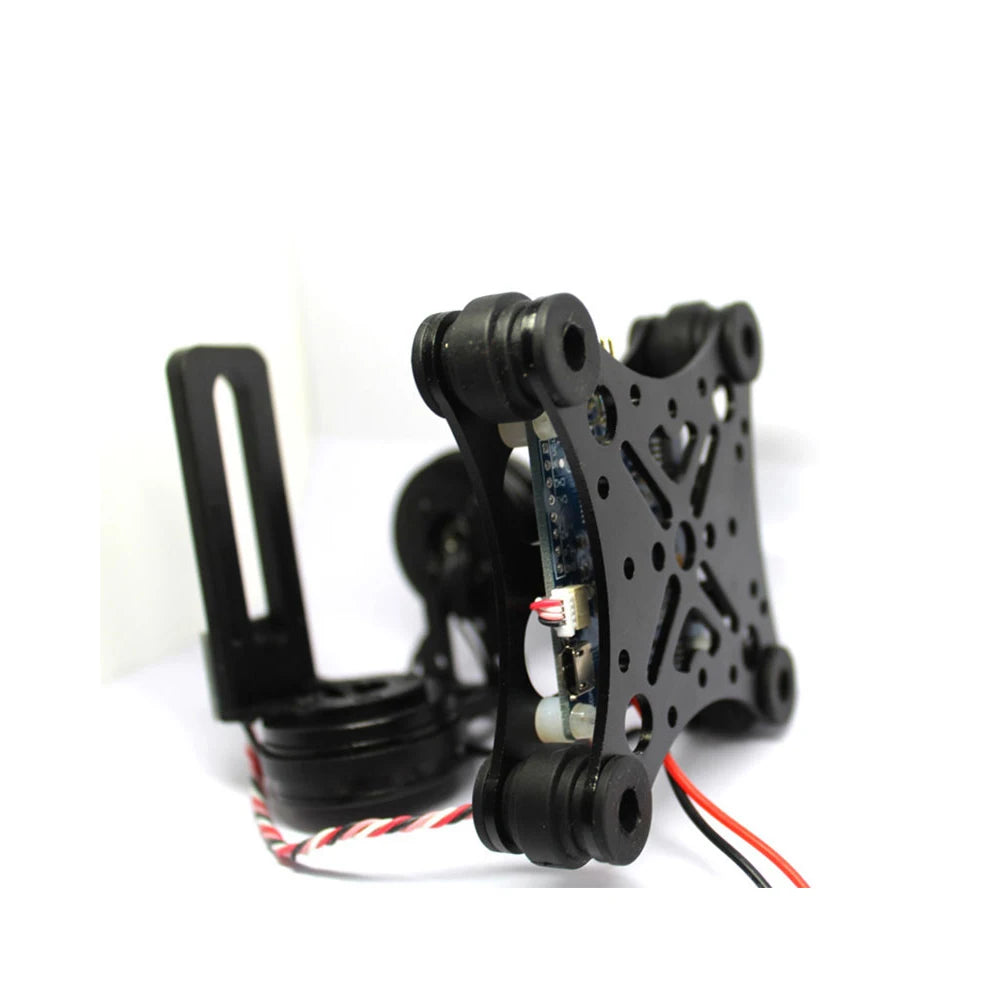

1. Remove the damping balls, open the top coverof the mounting plate.

2. Install the top cover of the mounting plate tothe bottom of the DJ phantom.

3. Install the damping balls.

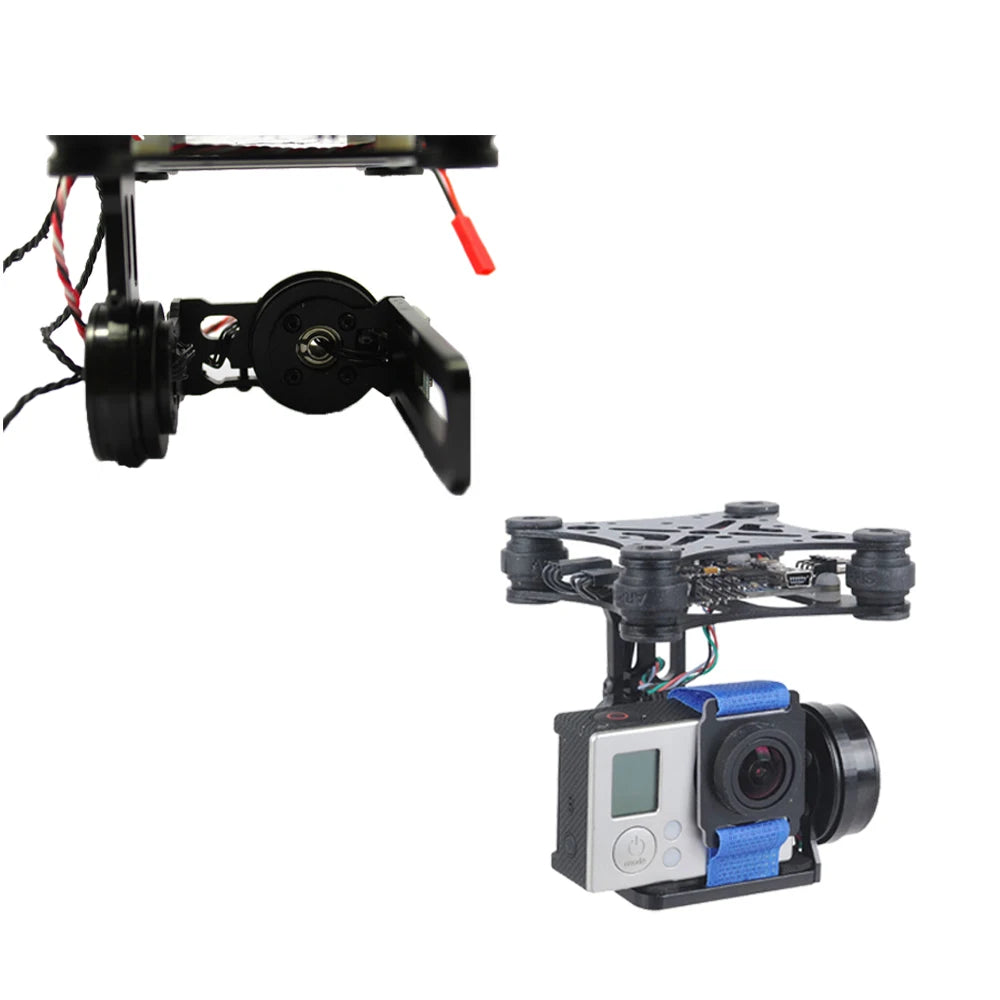

4. Install your GOPRO camera,and fasten it with straps.

Advanced setup

1. Install JAVA Virtual machine.(http://java.com/zh CN/download/installed.jsp)

2. Install CP2102 USB driver for xp/win7.3. Connect from the gimbal controller to computerby mini usb.4. Open the “SimpleBGC GUl.exe”, the vesion isBGC2.2 b2.

(http://vww.basecamelectronics,com/downloads/8bit/)

5.Select the right com ports.

6. Adjust the values of the parameters.(The PID value is very important. The defaultROLL P 10, I 0.15, D 12, the default PITCH P10,I 0.25, D 15)

7. The default assign actions to menu key ofPCB(1 click: Calibrate ACC. 2 clicks: Calibrate Gyro.3 clicks: Set tilt angles by hands.)

Note: If the green LED light flash, means you must calibratethe ACC and Gyro.
